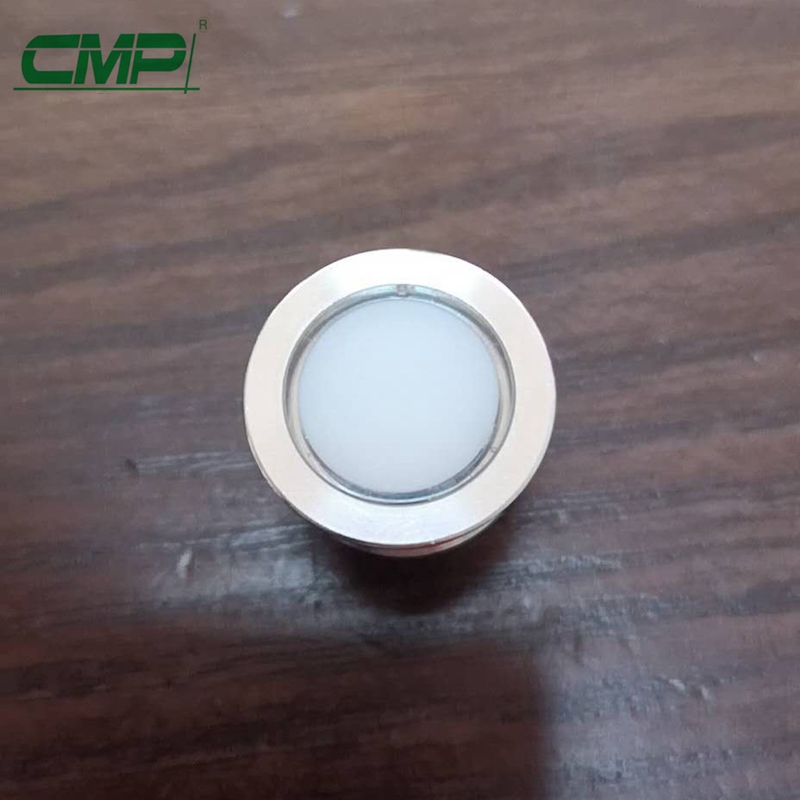

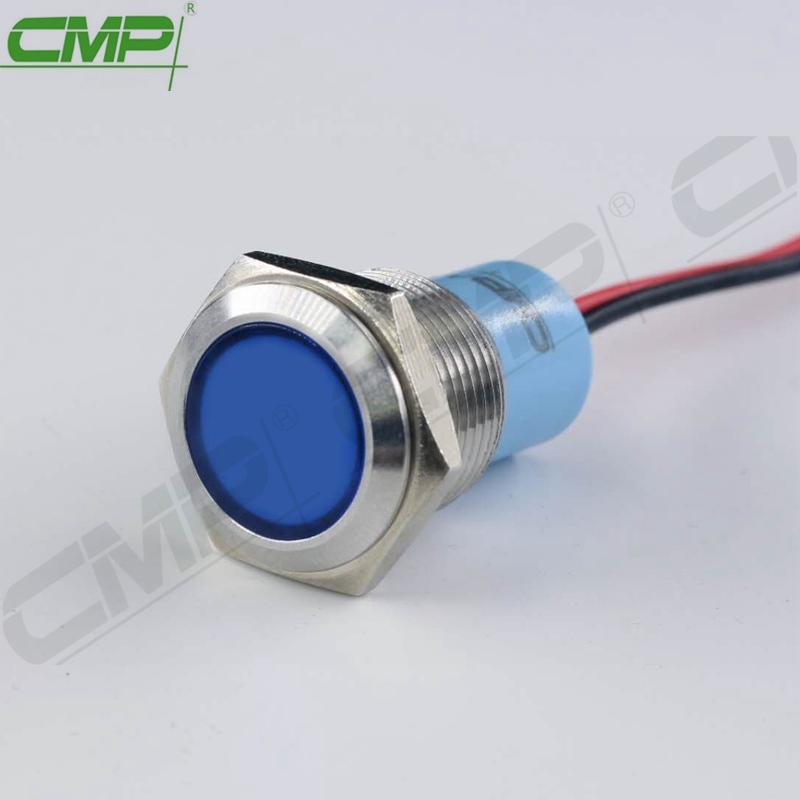

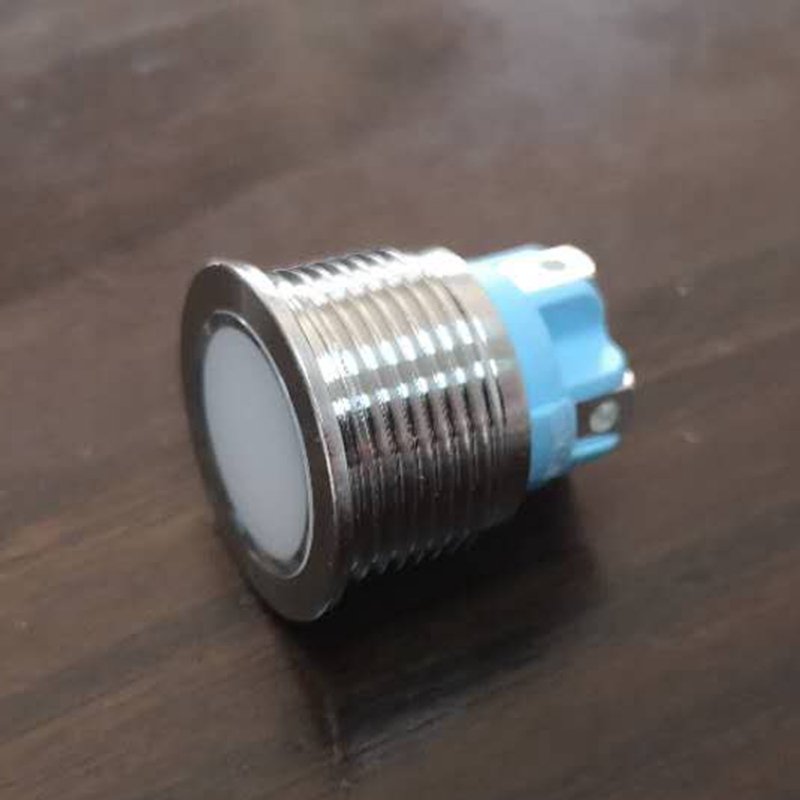

Indicator Light 16mm Thread Waterproof Signal Lamp

1 / 5

Indicator Light 16mm Thread Waterproof Signal Lamp

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

MQ16S/F20

IP Rating

IP67

Color Temp

High Brightness

Body Material

Stainless Steel, Plastic

Certification

CE, RoHS, TUV

Thread Diameter

16mm

LED Color

R, G, B, W, O, Y, Bi-Color, RGB

LED Life

> 40,000 Hours

Rated Voltage

3V - 220V (Customizable)

Rated Current

15mA

Terminal

Screws or Wires

Product Name

Panel Indicator Light

Product Description

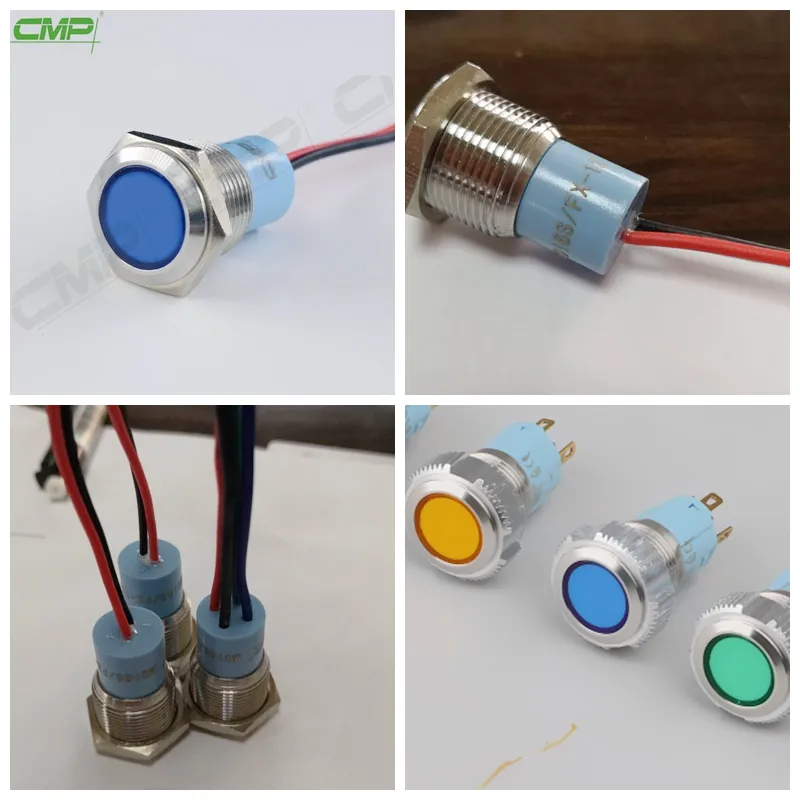

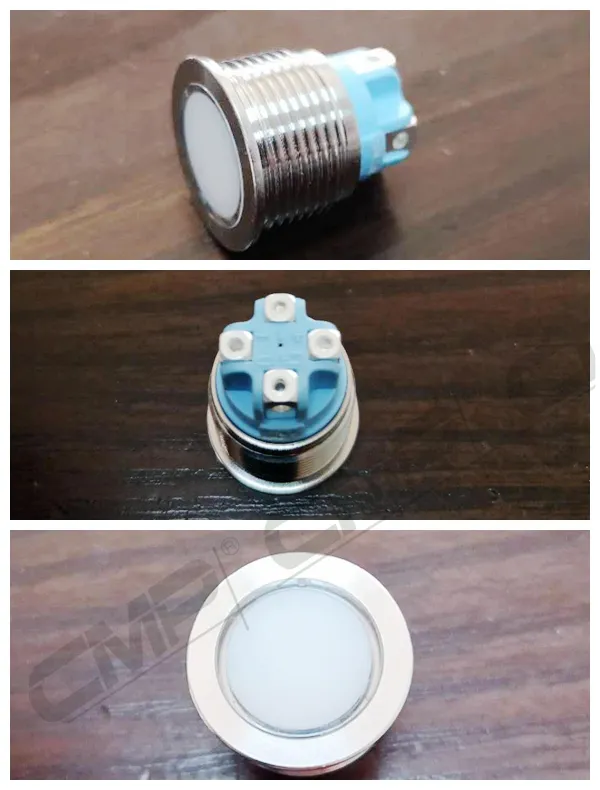

16mm Metal Panel Indicator Light

Terminal Type	Pin or soldering with wires	-
Operation Temp	-20ºC	+55ºC
Light Rating	15mA	Voltage made to order
LED Color	Red, Yellow, Blue, Green, White, Orange, Purple, Bi-color, Tri-color	High brightness LED
Life	>40,000 HOURS	-

• Single color light with 2 wires

• Bi-color light with 2/3/4 wires

• Tri-color light with 3 wires

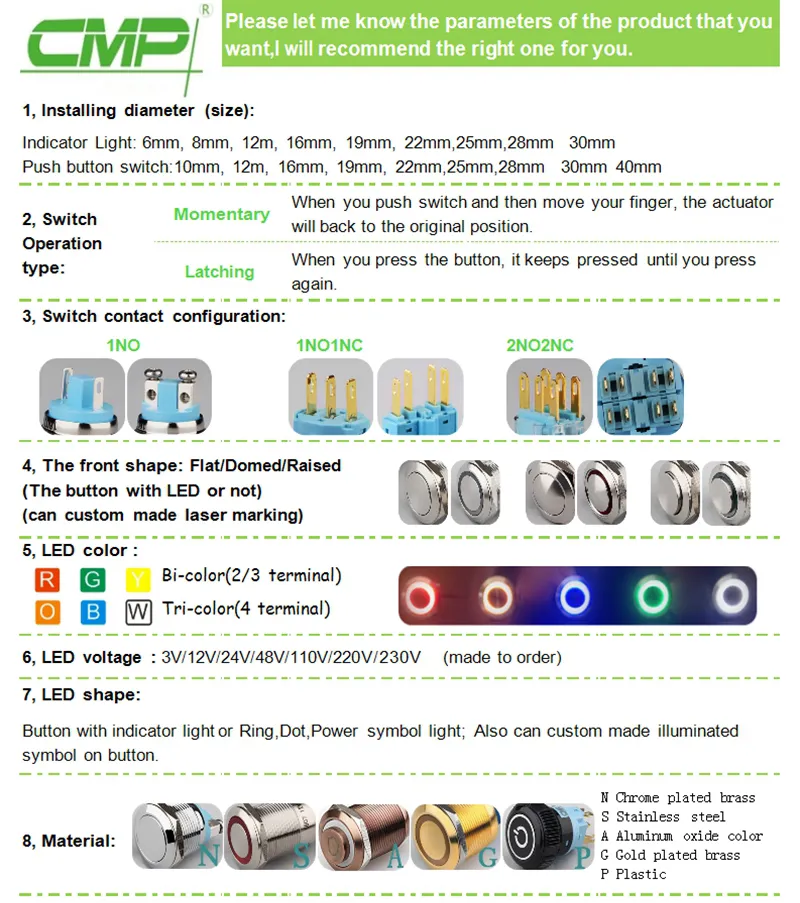

Technical Introduction

Certifications

Product Categories

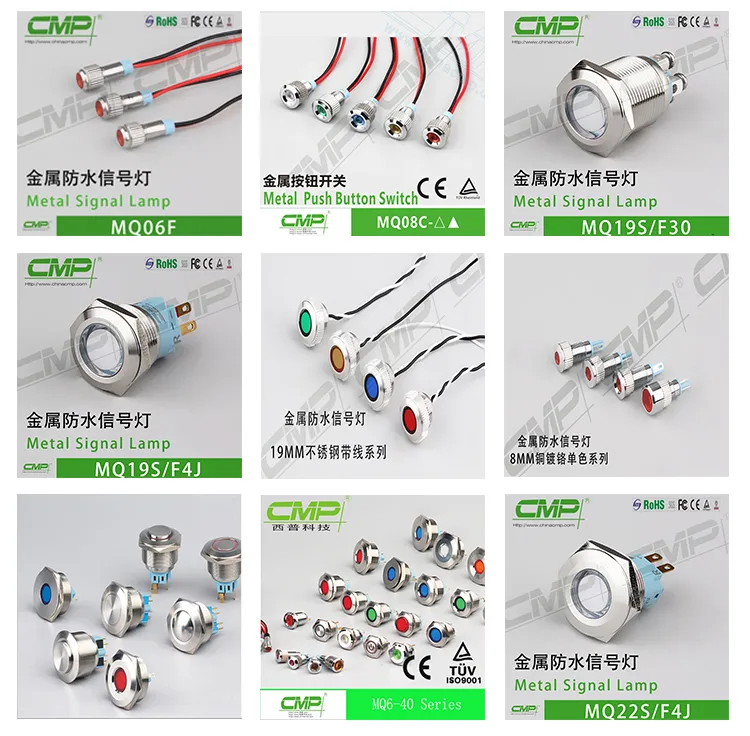

Indicator Light Series

Frequently Asked Questions

What is the waterproof rating of this indicator light?

This model features an IP67 rating, making it highly resistant to dust and capable of withstanding temporary immersion in water.

What voltages are available for the MQ16S/F20?

We offer a wide range of rated voltages including 3V, 6V, 12V, 24V, 36V, 48V, 110V, and 220V, all made to order based on your requirements.

What is the expected lifespan of the LED?

The high-brightness LED is designed for long-term reliability, with a lifespan exceeding 40,000 hours of operation.

Can I choose different shell materials?

The standard shell material is high-quality stainless steel, providing excellent durability and corrosion resistance.

What mounting size is required for installation?

This indicator light requires a 16mm diameter thread hole for panel mounting.

Does the product have international certifications?

Yes, the product is fully certified with CE, RoHS, and TUV standards, ensuring compliance with international safety and quality regulations.
