Product Description

Product Overview

Model NO.:UHC

Range:0-10m / 0-15m

Measurement Accuracy:±8mm / ±5mm

Accuracy:0.25%

Kind:Liquid Level Transmitter

Material:SS304, SS316, PTFE, PP, PVC, PVDF

Process Temperature:-190~425℃ / Max 520℃

Warranty:1 Year

Certification:CE, RoHS

Signal:4~20mA, Hart, RS485

Protection Grade:IP65/IP67/IP68

Explosion-proof:Exd II BT6

Product Description

◈

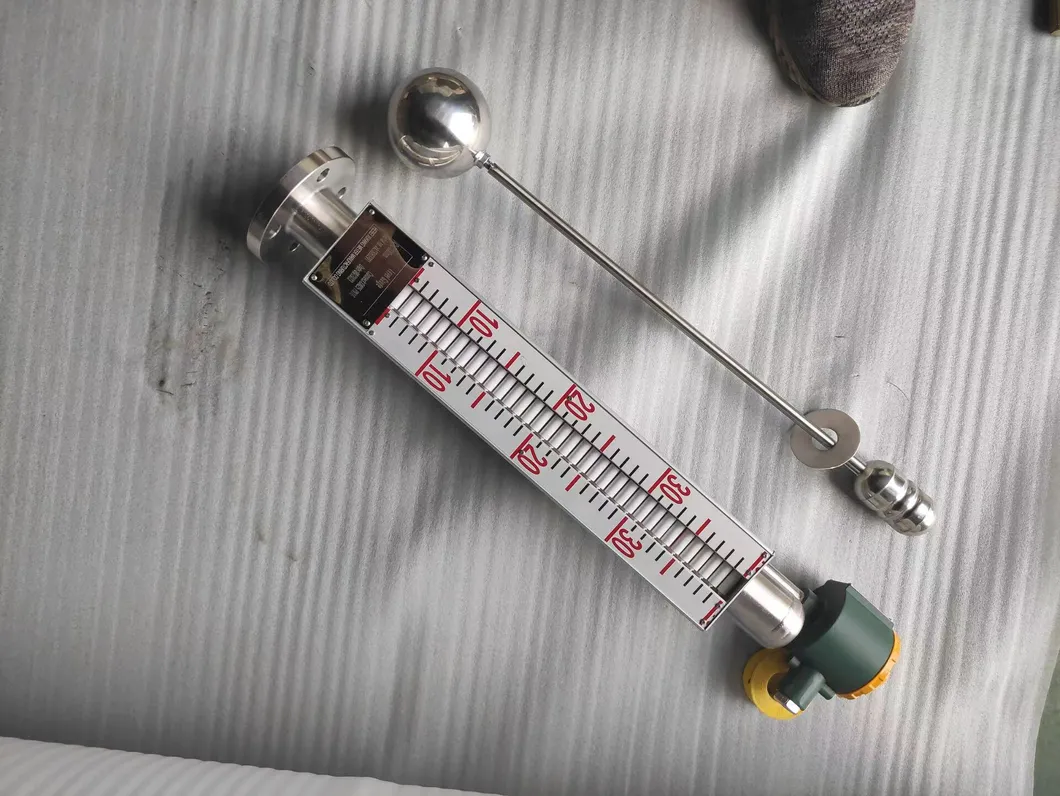

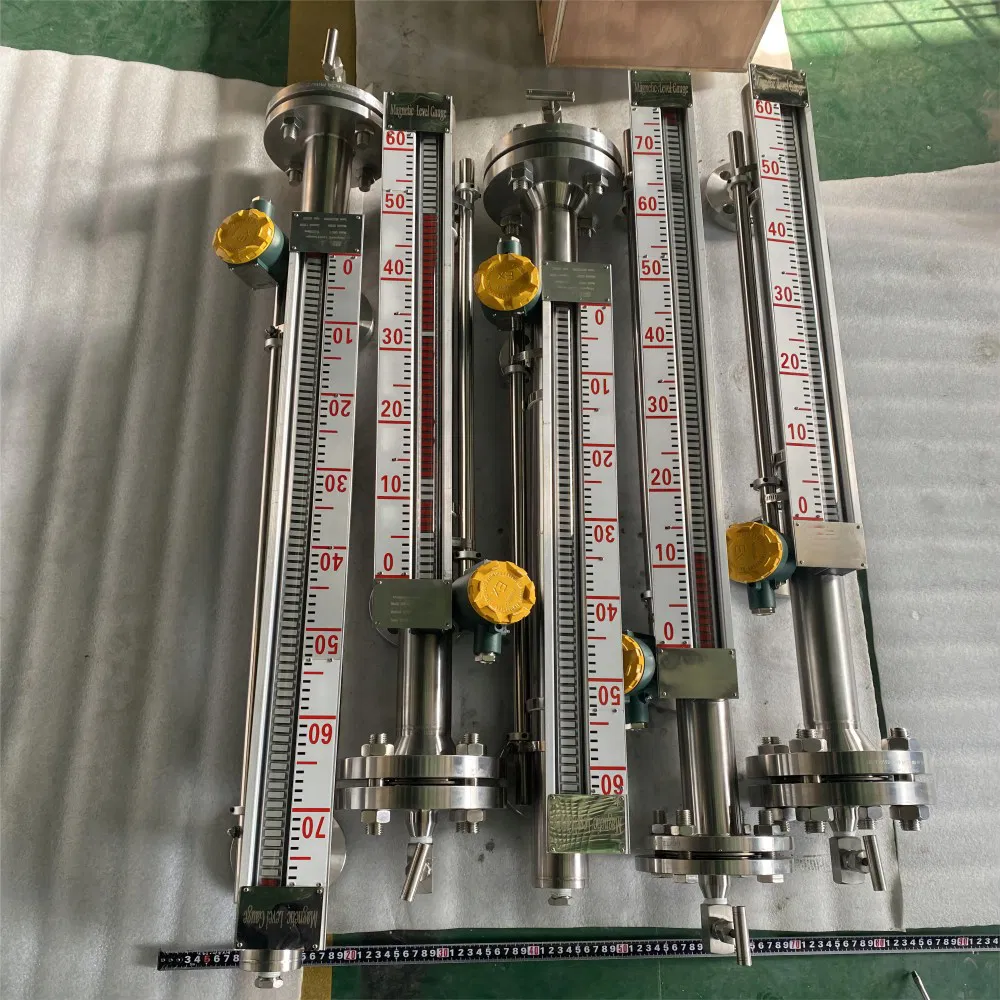

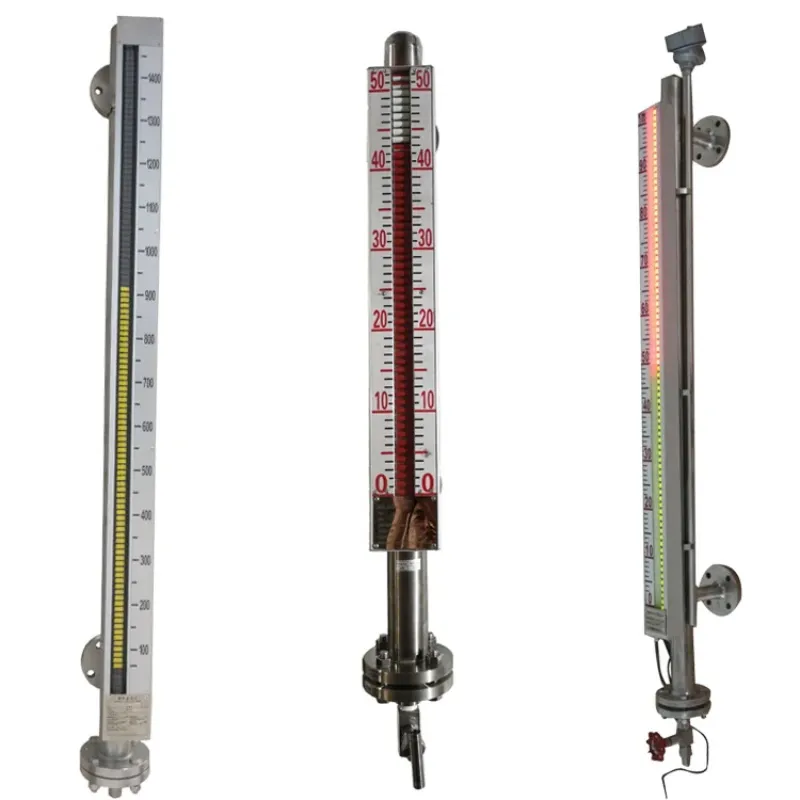

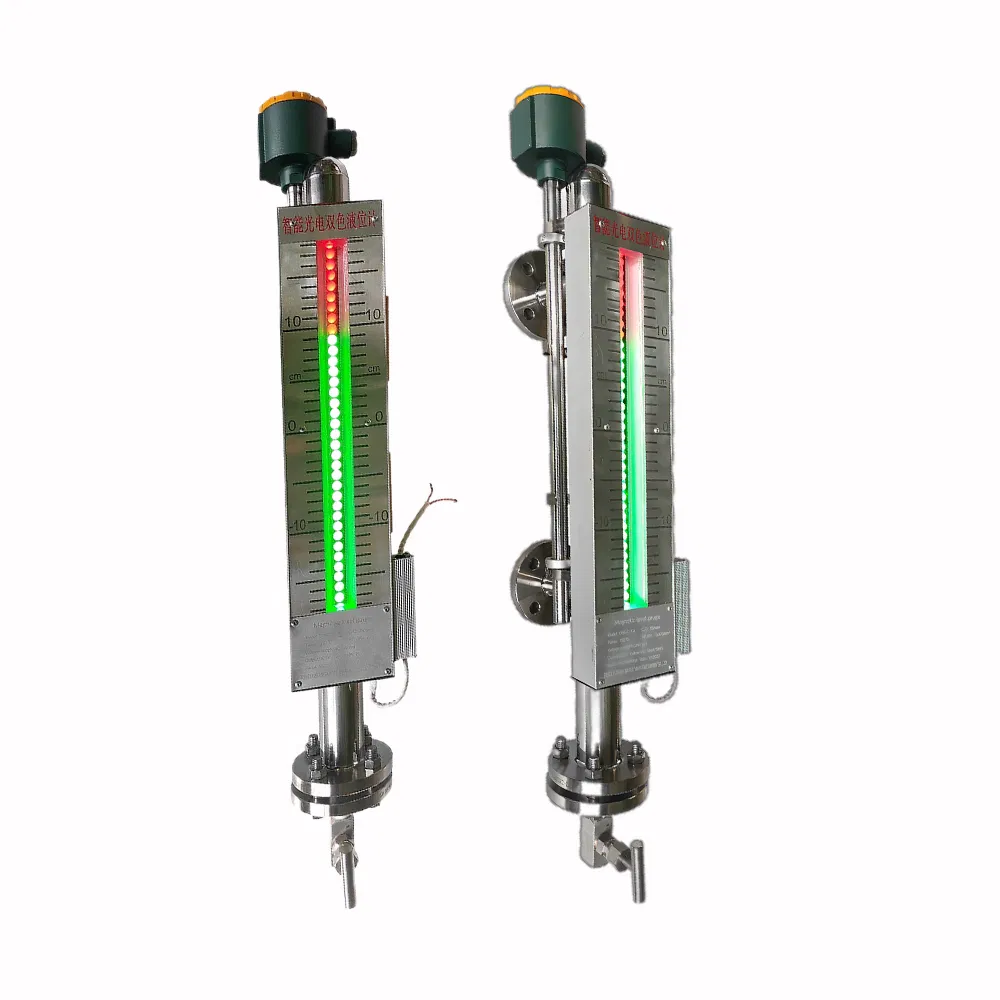

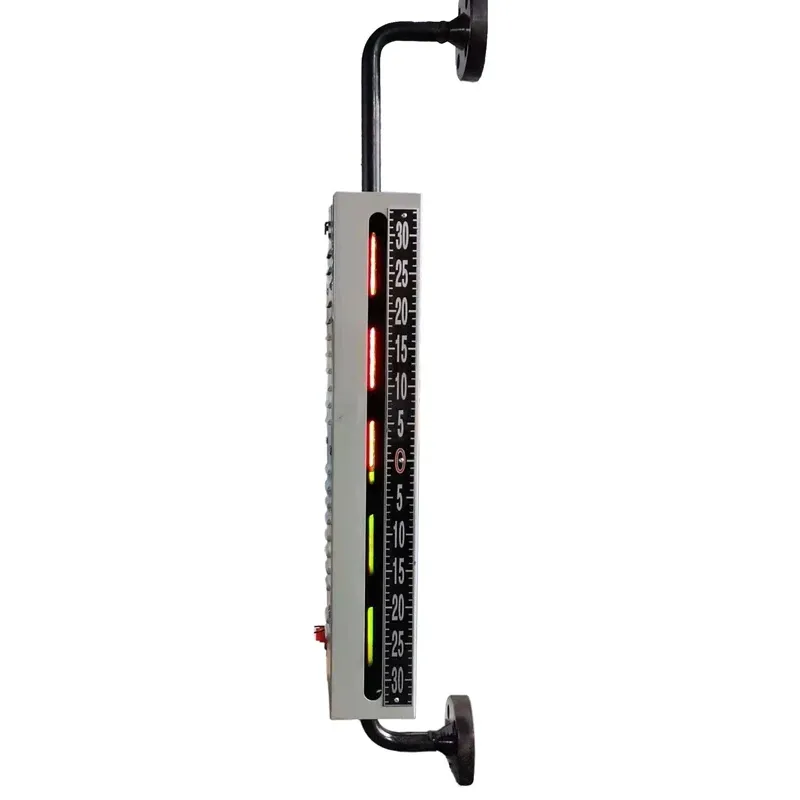

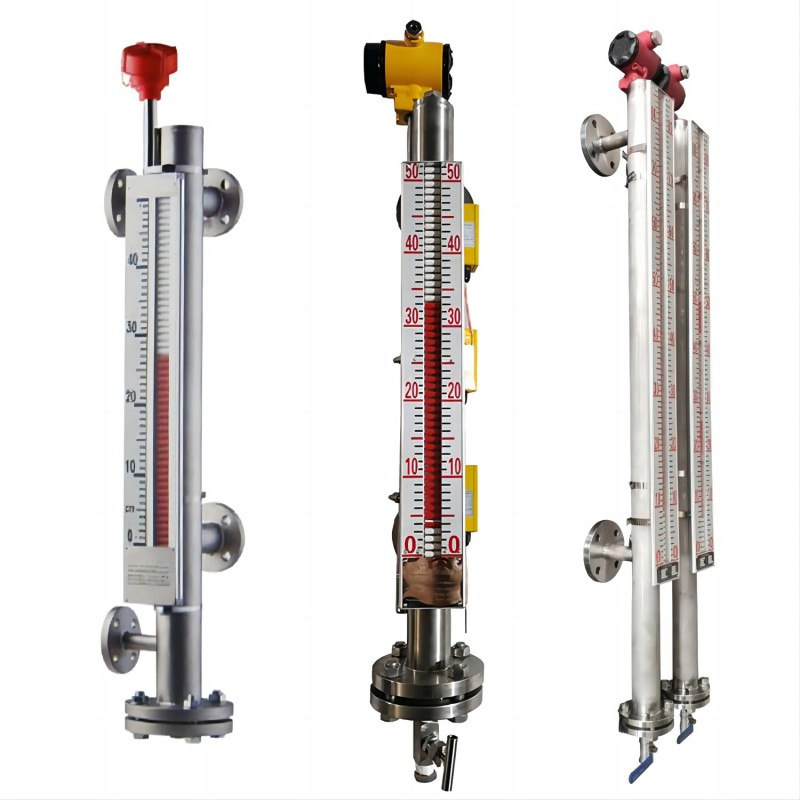

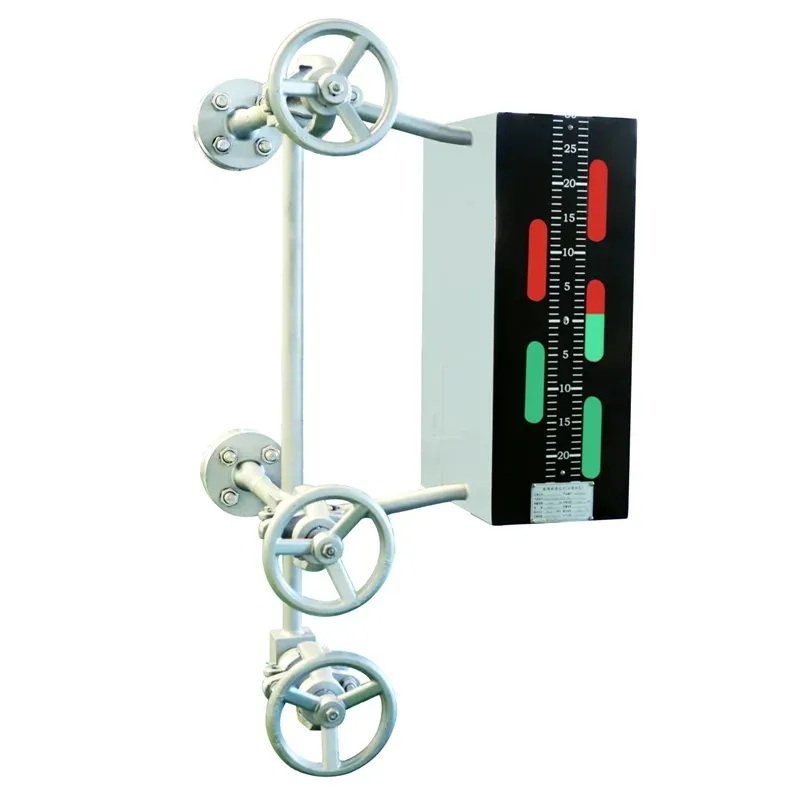

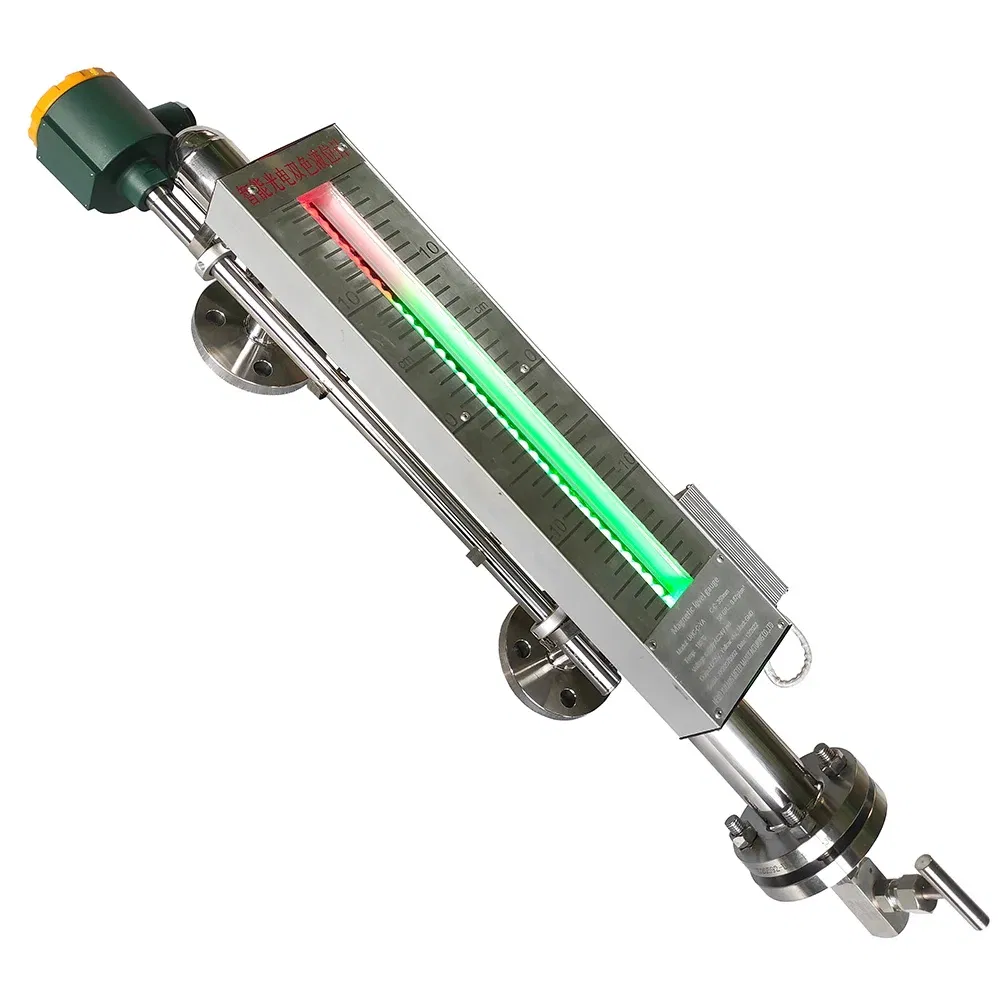

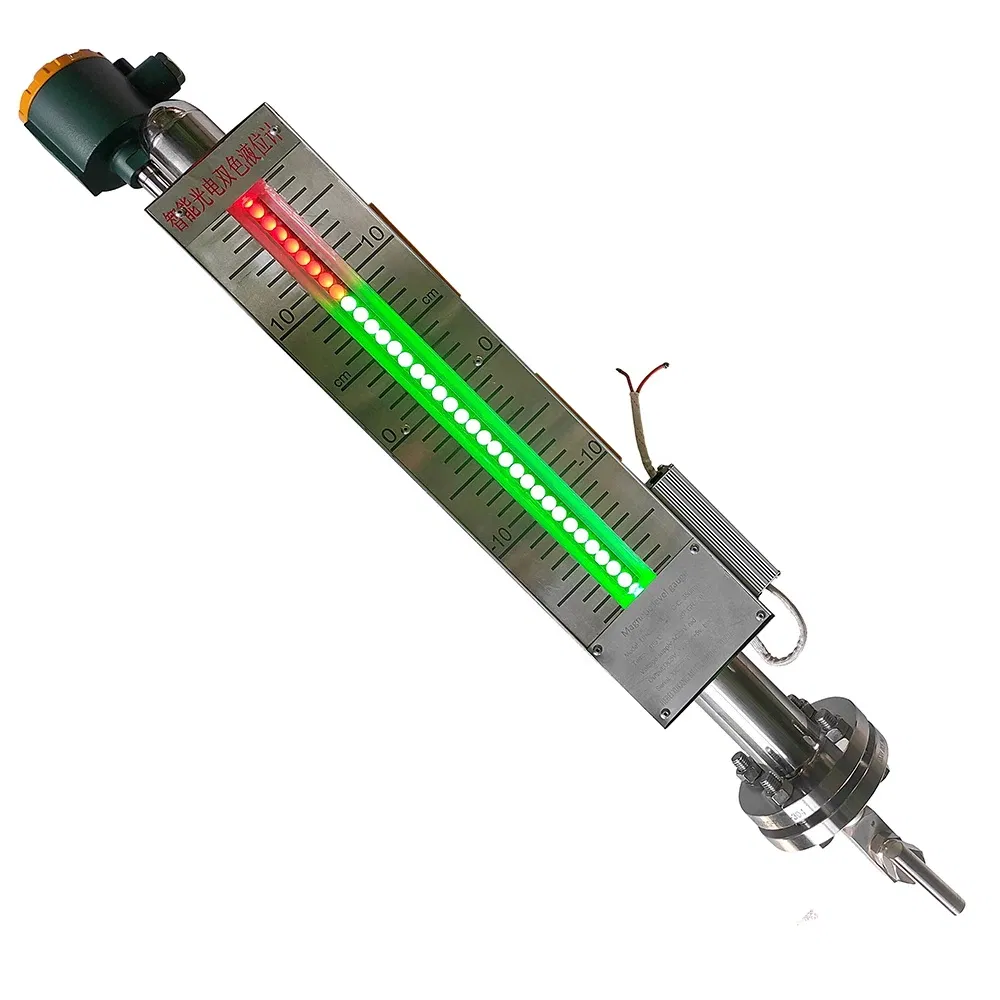

Magnetic Level Gauge provides clear, high clarity indication of liquid level. Principally designed as an alternative to glass level gauges, it offers top-bottom, top and side mounted construction with two types of indicator systems: Capsule and Bi-colour Rollers.

Operating Principle: Operates on the principle of magnetic field coupling. The float contains magnets providing a 360° magnetic flux field. Float size and weight are determined by process fluid, pressure, temperature, and specific gravity.

Available Models:

Basic Model: For pressures < 4.0MPa and temperatures < 200ºC.
Anti-corrosion Model: PTFE lined stainless steel, PPR, or PVC for acids and alkalis.
Jacketed Model: For insulation/heating (Steam, water, vacuum, or electric jackets).
High Temp/Pressure Model: Up to 520ºC and 32MPa.

Key Features:

Highly visible indication - no fluid contact with glass.
Code certified welding construction.

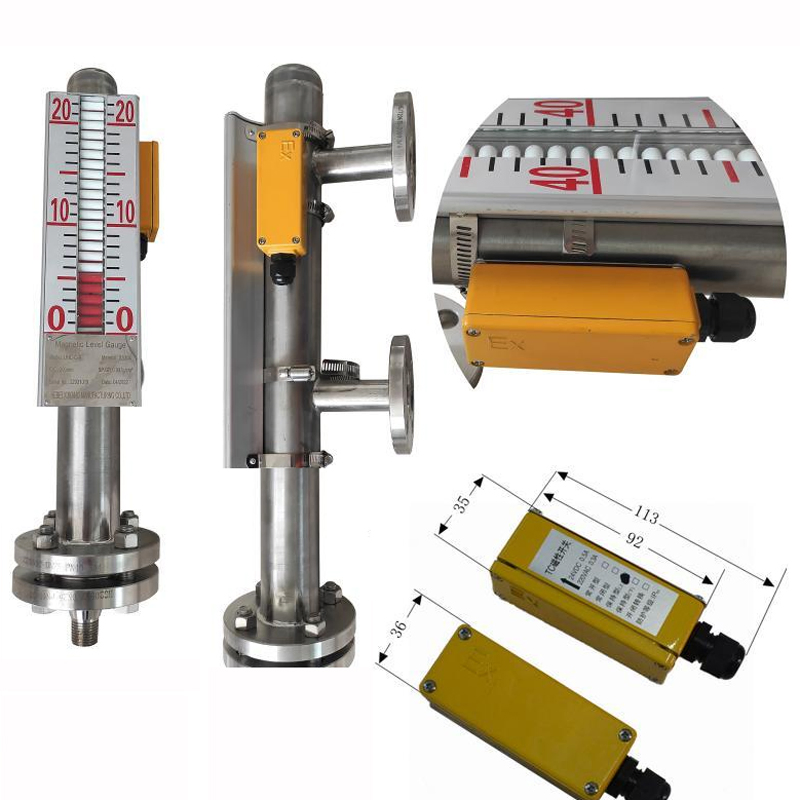

Transmitter and switch options for remote monitoring.
Safe for toxic, corrosive, and high-pressure applications.
Rugged design with minimal maintenance.

Technical Specifications

Parameter	Specification Details
Float Cage Material	SS304, SS316, PTFE, PP, PVC, PVDF
Max. Centre to Centre Distance	6000 mm (greater lengths on request)
Connecting Flanges	According to DIN or ANSI B16.5
Rated Pressure	<10.0 Mpa for SS; 0.3 Mpa for PP/PVC/PVDF
Temperature Range	Max 450ºC (SS), 80ºC (PVDF), 60ºC (PVC), 50ºC (PP)
Specific Gravity	Min. 0.40g/cm³
Scale Material	Graduated in cm, Aluminium or SS304
Output Signal	4~20mA.DC, Pulse, RS485
Switch Type	NO, NC, SPDT

Product Display

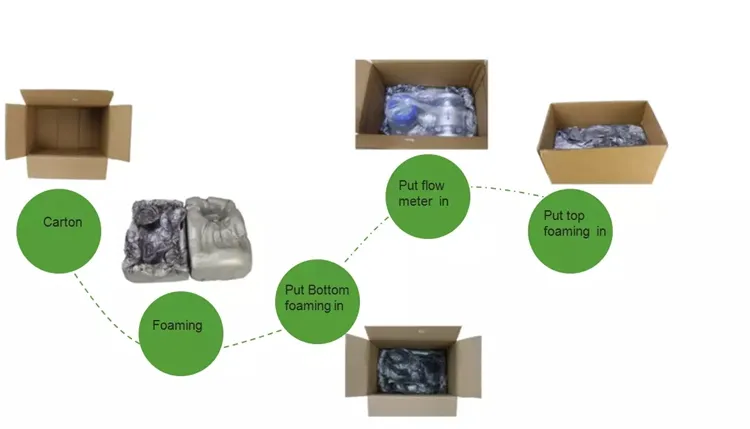

Packaging & Delivery

Package Size:20.00cm * 27.00cm * 80.00cm

Gross Weight:10.000kg

Package Type:Wooden Case or Carton

Frequently Asked Questions

What is the maximum measurement range for this level gauge?

The standard range is up to 10 meters, but we can provide custom lengths up to 15 meters upon request.

Can this device handle highly corrosive liquids?

Yes, our anti-corrosion models use PTFE lined stainless steel, PP, PVC, or PVDF materials specifically designed for acids, alkalis, and organic solvents.

What are the available output signals for remote monitoring?

The gauge supports 4~20mA DC analog signals, pulse outputs, and RS485 communication protocols, including Hart compatibility.

What is the maximum temperature and pressure it can withstand?

For high-temperature and high-pressure applications, it can handle process temperatures up to 520ºC and working pressures up to 32MPa.

Is the level indication visible in low-light conditions?

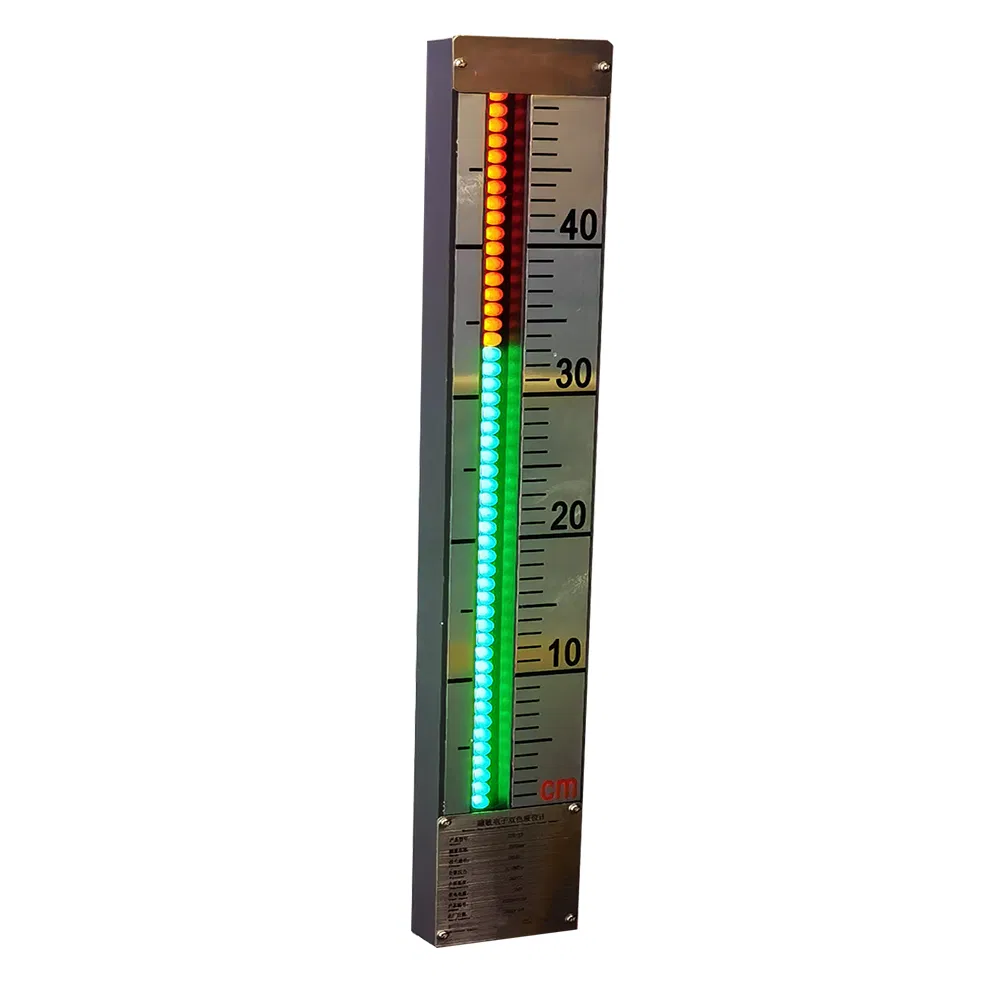

Yes, we offer various indicator types including ordinary rollers, LED lighting indicators, and sealed indicators for high visibility in all environments.

What certifications does the product hold?

The product is CE and RoHS certified, with an IP65/IP67/IP68 protection grade and Exd II BT6 explosion-proof marking.
