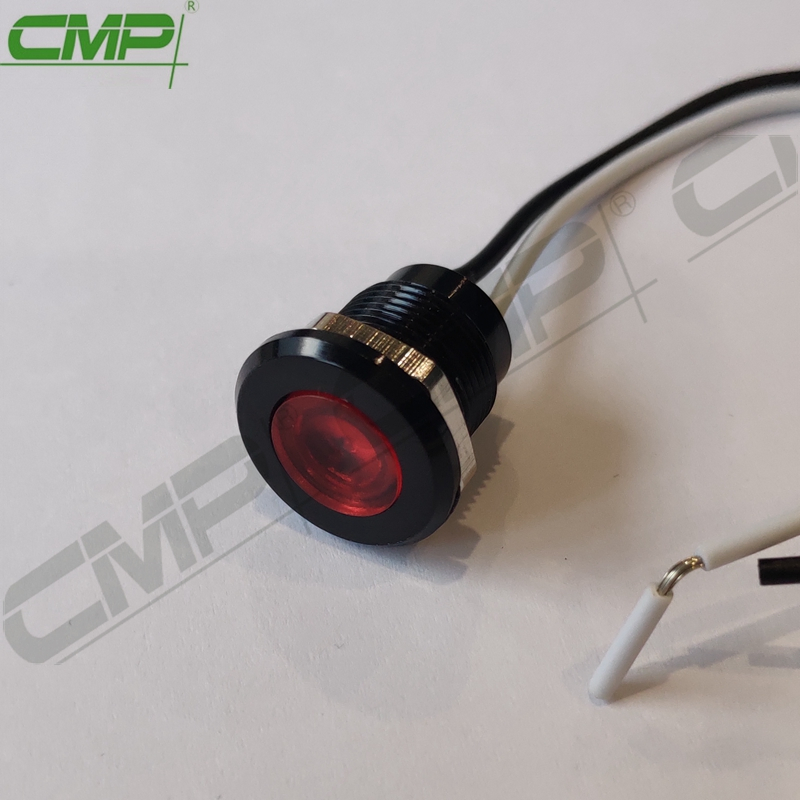

Black Signal Lamp 12mm Dia. Metal Indicator Light with Wire
Black Signal Lamp 12mm Dia. Metal Indicator Light with Wire
1 / 2
Black Signal Lamp 12mm Dia. Metal Indicator Light with Wire
Black Signal Lamp 12mm Dia. Metal Indicator Light with Wire

Black Signal Lamp 12mm Dia. Metal Indicator Light with Wire

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
MQ12A/FX
IP Rating
IP67
Color Temperature
High Brightness
Material
Aluminum / Stainless Steel
Certification
RoHS
Thread Diameter
12mm (Options: 6mm-30mm)
Front Shape
Flat, Concave, Inclined
LED Color
Red, Yellow, Blue, Green, White, Orange, Bi-Color
LED Life
More Than 40,000 Hours
Rated Voltage
3V - 220V (Made to Order)
Rated Current
15mA
Product Name
Black Indicator Light

Product Description

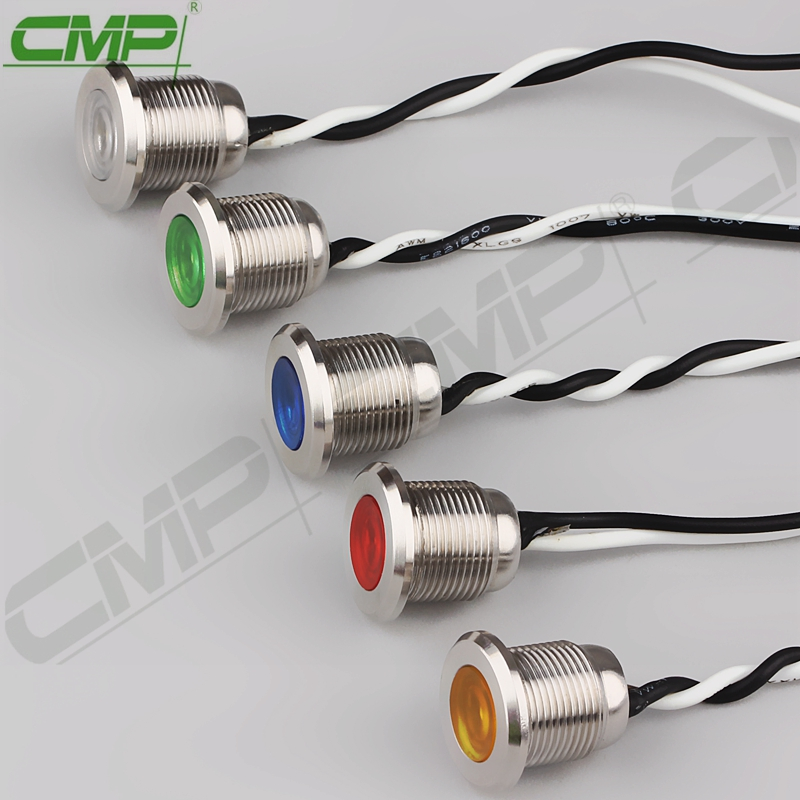

Black signal lamp 12mm dia. metal indicator light with wire

Terminal Type Soldering pin terminal, or with wire
Operation Temp -20ºC to +55ºC
Light Rating 15mA | 3V/6V/12V/24V/36V/48V/110V/220V
Available Colors Red, Yellow, Blue, Green, White, Orange, Bi-color
Lifespan >40,000 Hours

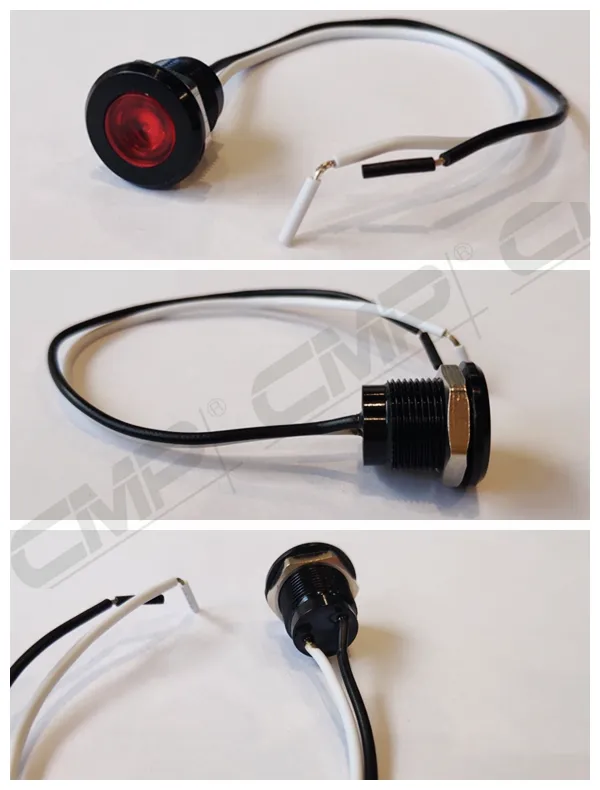

Black Signal Lamp 12mm

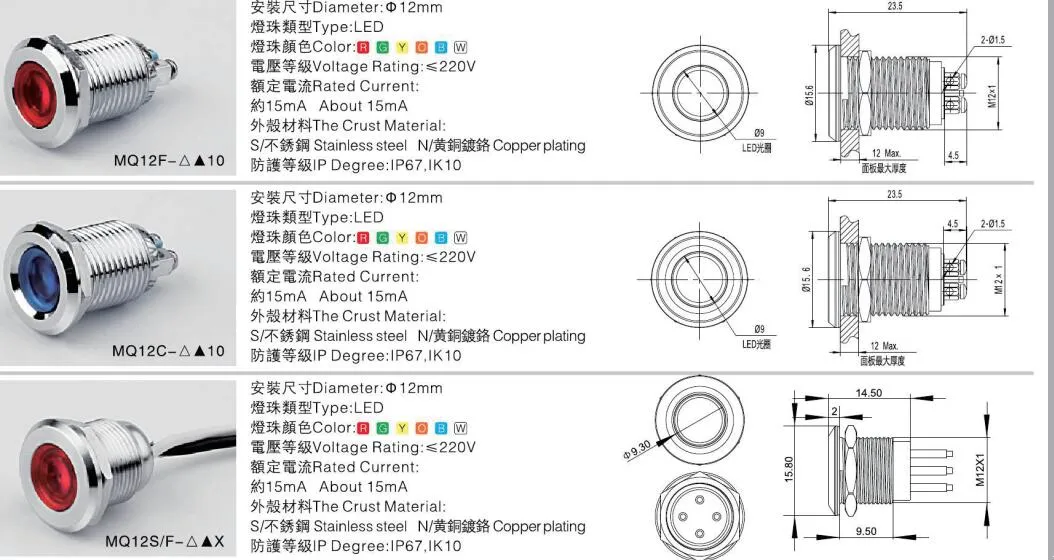

Indicator Light Dimensions

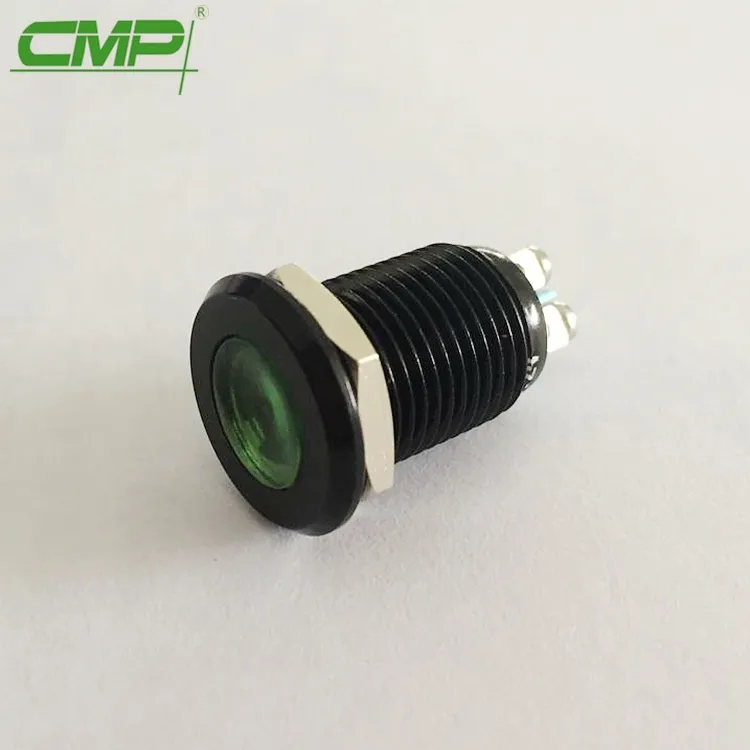

Metal Indicator Light Detail
Pilot light mount hole 12mm indicator light 12mm Indicator Lamp Small blue Indicator Light Miniature Metal Indicator Light Equipment Light

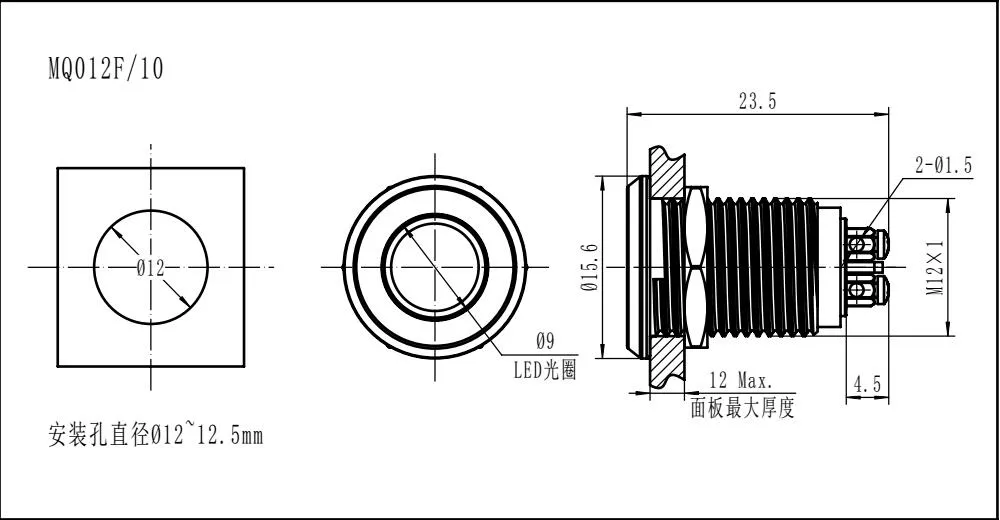

Indicator Light Wiring
Black Signal Lamp Profile

Certification & Categories

Certification

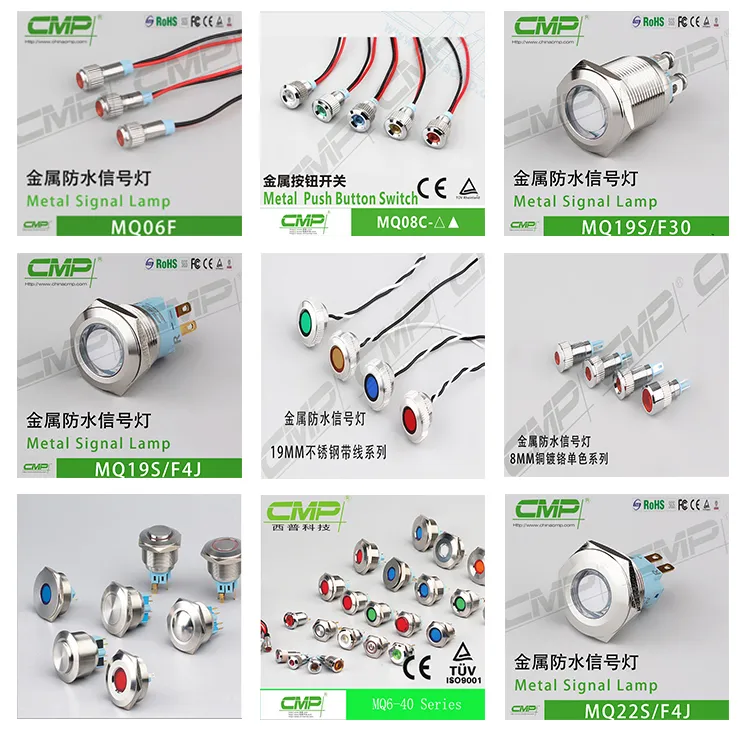

Product Categories

Packaging & Shipping

Packaging: Inner bubble box — Inner box — Carton (or by request).

Shipping: DHL, EMS, TNT, Fedex, UPS and other international express services.

Standard Spec: 500pcs/CTN | 31cm*29cm*24cm

Frequently Asked Questions

What is the delivery time for orders?
Small orders are typically delivered within 1-3 days, while large orders take approximately 5-7 days.
What are the available voltage options for the indicator lights?
We offer a wide range of rated voltages including 3V, 6V, 12V, 24V, 36V, 48V, 110V, and 220V, all made to order.
What is the waterproof rating of this signal lamp?
This metal indicator light features an IP67 rating, making it highly resistant to dust and water ingress.
Can I choose different shell materials?
Yes, the shell material is available in Stainless Steel, Chromium Plated brass, or Aluminum.
What colors can be customized for the LED?
You can choose from Red, Yellow, Blue, Green, White, Orange, and Bi-color options.
What is the expected lifespan of the LED?
The LED is designed for long-term reliability with a lifespan of more than 40,000 hours.
