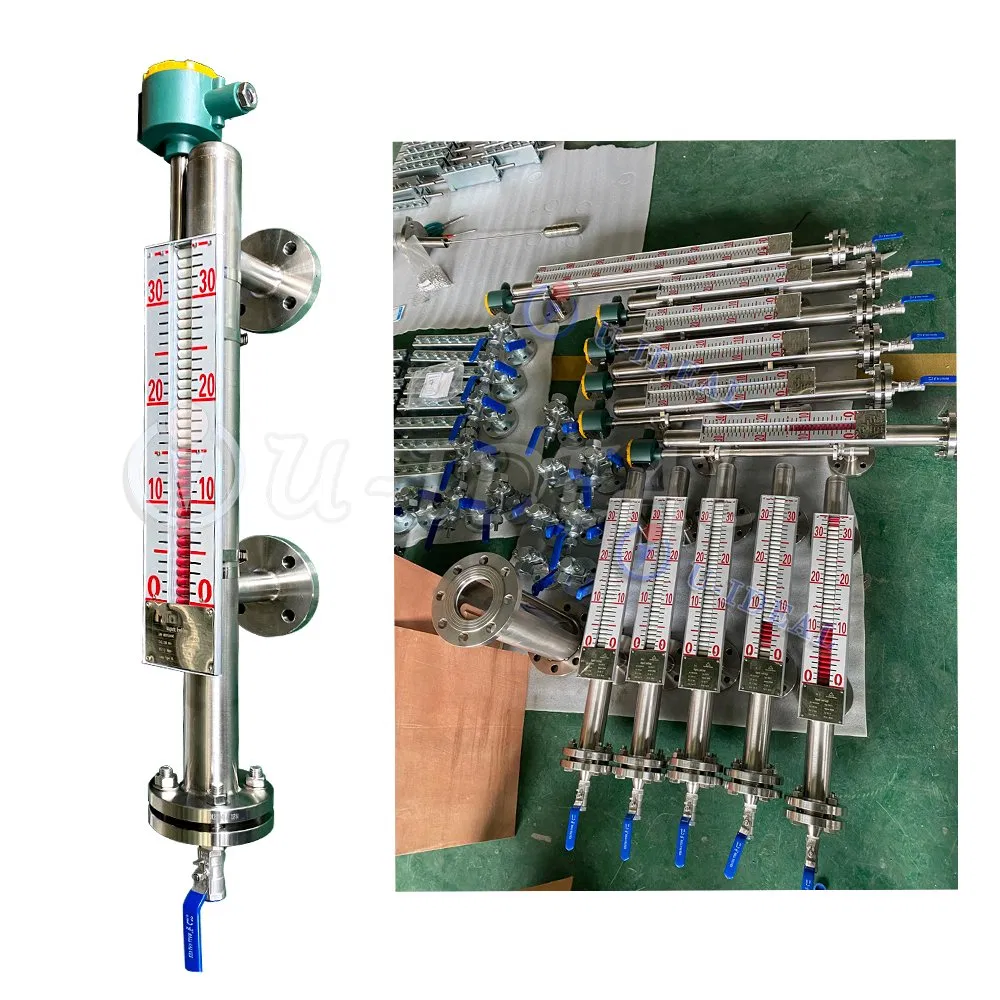

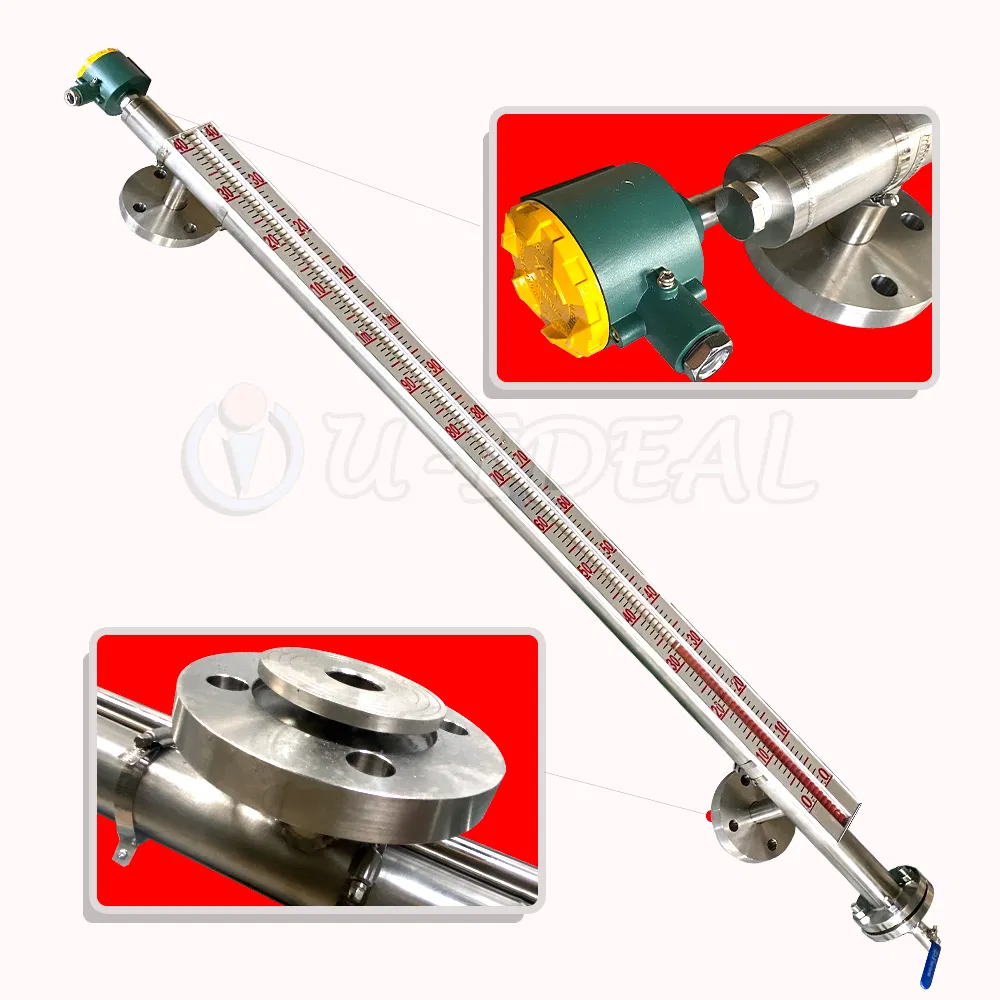

Magnetic Float Bi-Colour Magnetic Flap Indicator Magnetic Water Level Sensor

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.
UHC
Range
0-15m
Measurement Accuracy
±3mm
Accuracy
0.25%
Kind
Liquid Level Transmitter
Material
SS304
Process Temp.
-190~425℃
Certification
CE, RoHS
Signal
4~20mA, Hart
Connection
Flange/Thread/Welding

Product Description

High pressure magnetic flap level gauge Level Sensor Switch

We have our own factory and mainly produce magnetic level gauges, float level switches, transmitters, reflex level gauges, transparent level gauges, sight glass indicators, boiler level gauges, and glass tube level gauges.

Our instruments feature bi-color local indicating, remote control capabilities, a wide working range, economic pricing, long service life, and minimal maintenance requirements.

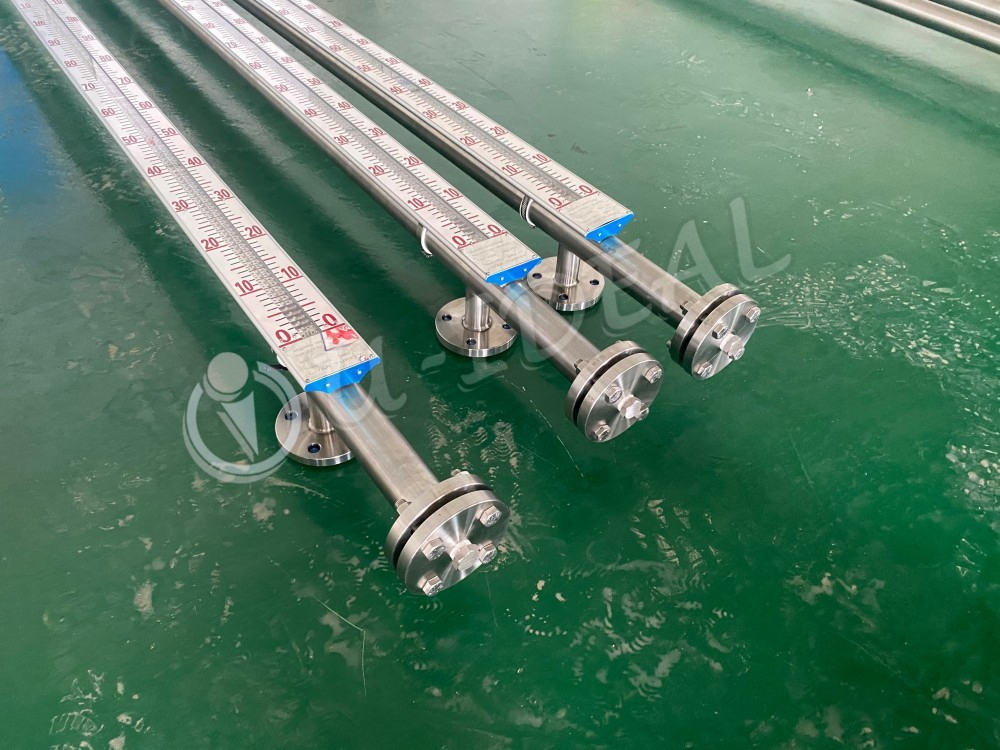

Magnetic Float Indicator

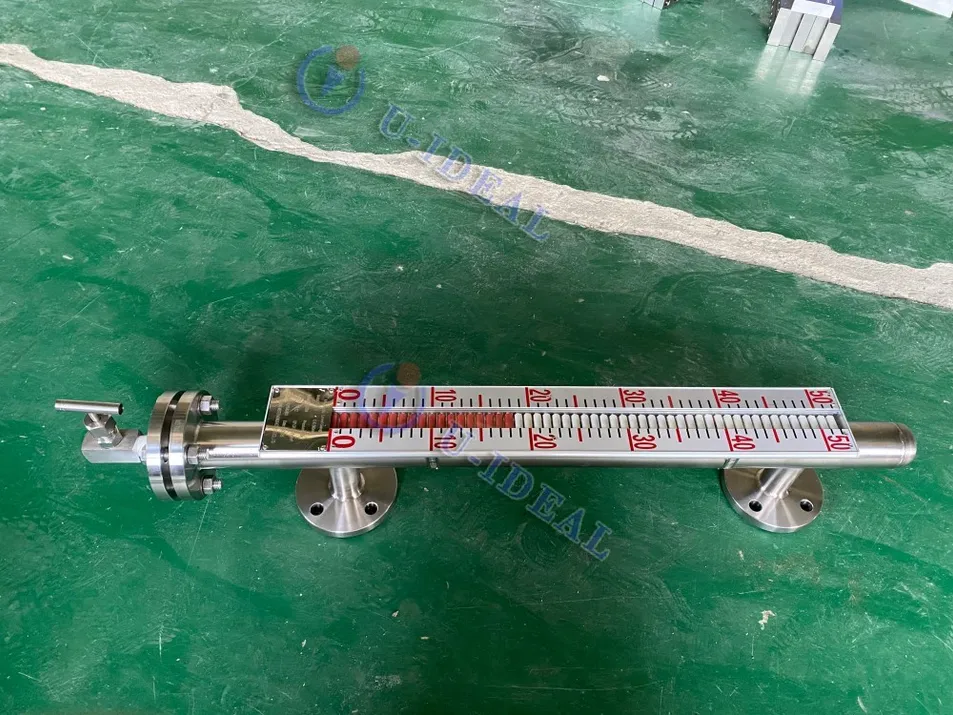

Magnetic Water Level Sensor

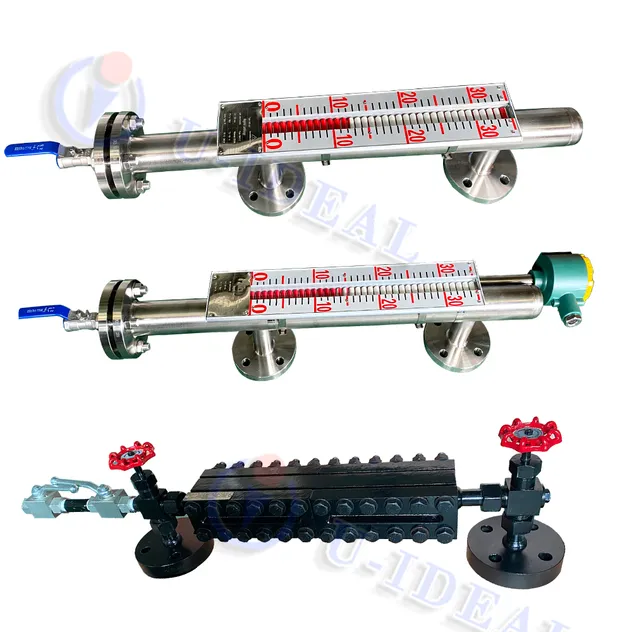

Bi-Colour Magnetic Flap

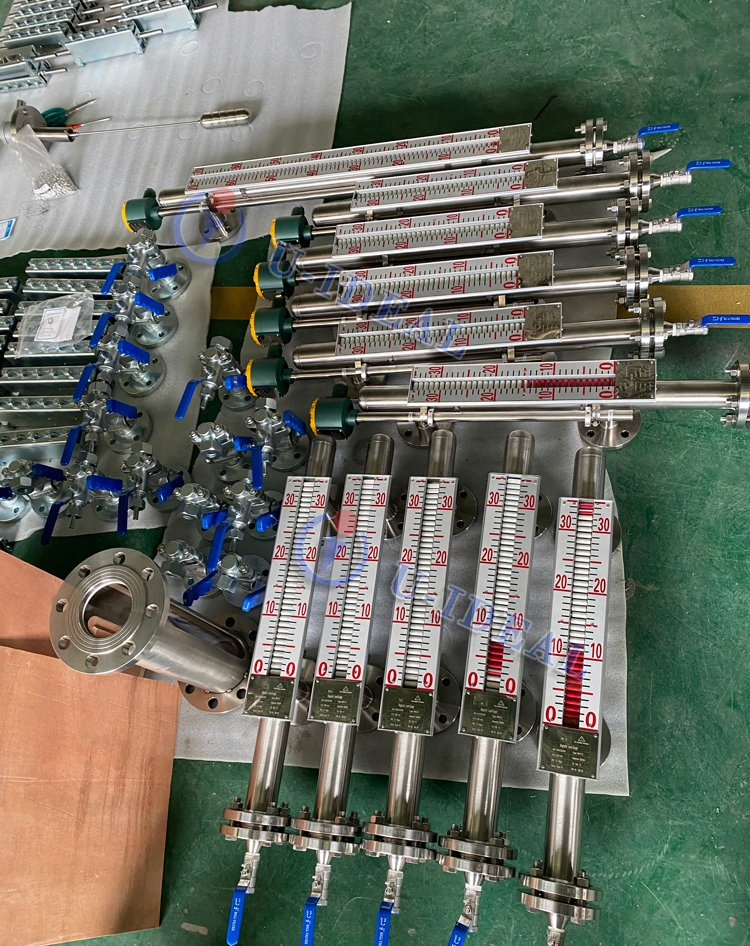

Level Gauge Detail

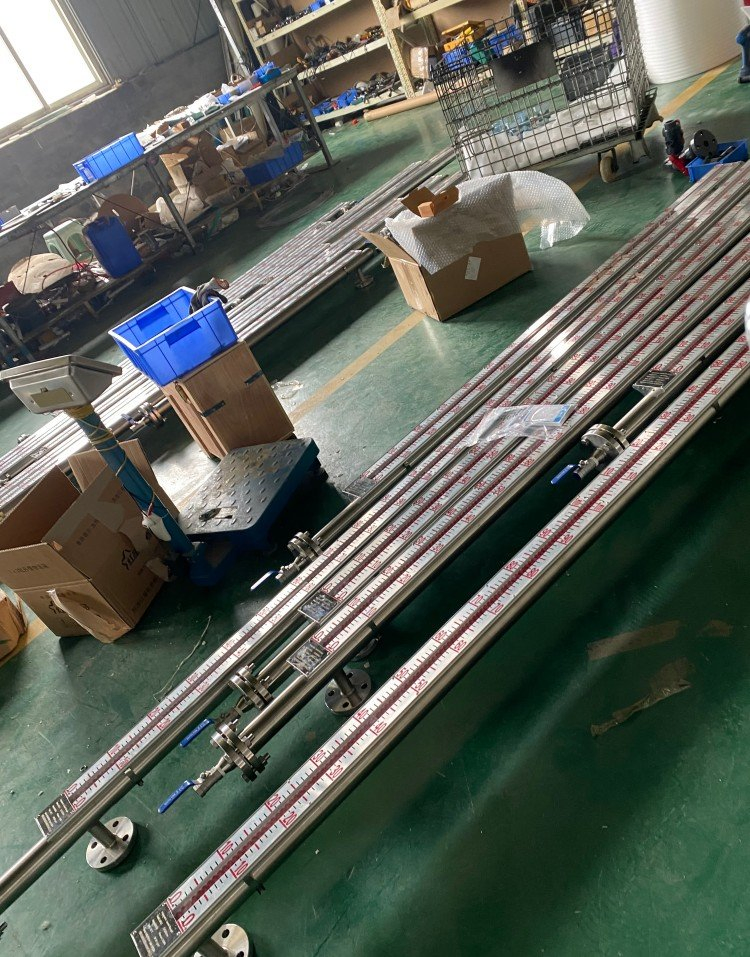

Magnetic Level Sensor

Technical Specification

Parameter Details
Float Cage MaterialSS304, SS316, PTFE, PP, PVC, PVDF
Max. Centre to Centre Distance6000 mm, greater lengths on request
Connecting FlangesAccording to DIN or ANSI B16.5
Rated Pressure<10.0 Mpa for SS & 0.3 Mpa for PP, PVC & PVDF
Temperature of Liquid450ºC (Max.) for SS, 80ºC (Max.) for PVDF
Specific GravityMin. 0.40g/cm³
Measuring Accuracy+/- 5 mm
Explosion-proof markExd II BT6
Protection GradeIP65/IP67

Certifications

Product Certifications

Packaging & Shipping

Packaging and Shipping
Package Size
20.00cm * 27.00cm * 80.00cm
Gross Weight
11.000kg

Company Profile

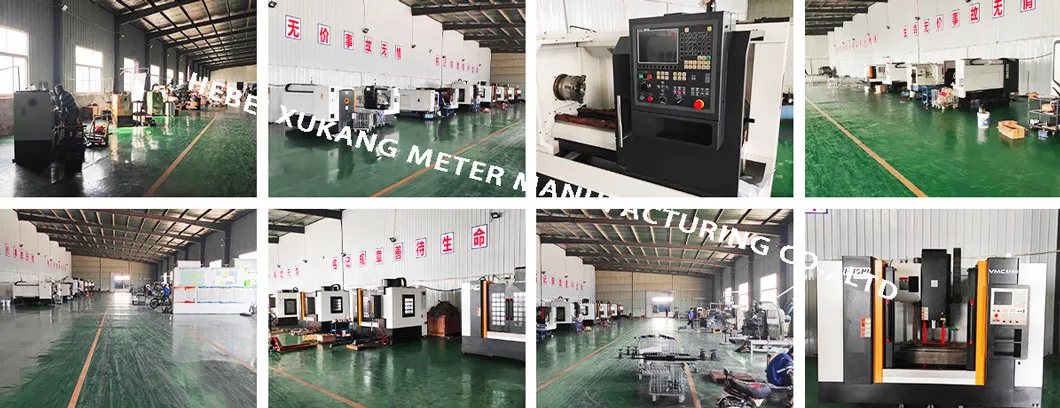

Factory Overview

Our group has more than 20 years of product research and development experience and 16 years of export experience. Operating from a 5000m2 factory equipped with advanced machinery, we specialize in customizing high-temperature and high-pressure instruments to meet specific industrial requirements.

We are a professional manufacturer of Magnetic float level indicators, Double colored indicators, Top/side mounted float switches, transmitters, Reflex/transparent glass level gauges, and sight glass indicators.

Our products strictly adhere to the ISO9001 quality management system, ensuring safe and reliable performance for all our customers. Our core philosophy is centered on being people-oriented, sincere cooperation, and prioritizing quality and good faith.

After Sales Service

We adhere to the principle of "Quality First, Customer Supreme". Every product undergoes rigorous testing to ensure it meets the highest standards of performance and reliability.

Warranty: We offer a comprehensive 12-month warranty on all our products.

Frequently Asked Questions

1. What materials are available for the magnetic level gauge?
We offer a variety of materials including SS304, SS316, PTFE, PP, PVC, and PVDF to suit different chemical compatibility and temperature requirements.
2. What is the maximum measuring range you can provide?
Our standard range is up to 6000mm (6 meters), but we can customize lengths up to 15 meters upon request.
3. Can the level gauge handle high-pressure environments?
Yes, our stainless steel models can handle rated pressures up to 10.0 Mpa. Higher pressure ratings can also be provided based on specific project needs.
4. Is the indicator easy to read in low-light conditions?
We offer various indicator types, including ordinary bi-color flaps, LED lighting indicators, and sealed indicators for clear visibility in all environments.
5. What output signals are supported for remote monitoring?
Our level transmitters support standard 4~20mA analog signals and HART protocol for seamless integration with industrial control systems.
6. How do you ensure the quality of the products before shipping?
We conduct a pre-production sample review and a final 100% inspection before shipment to ensure every unit meets our strict quality standards.
