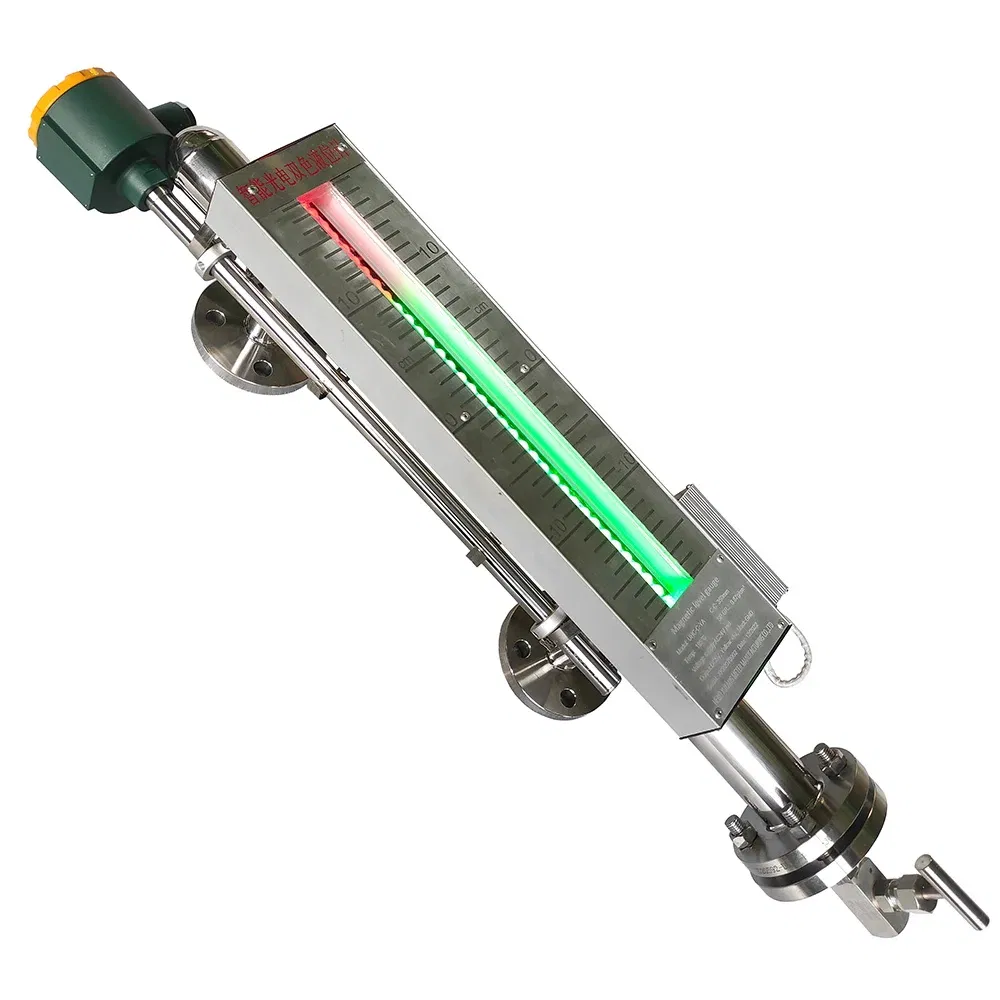

Magnetic Level Switch Bi Color Magnetic Level Indicator for Measure Tank Liquid

1 / 5

Magnetic Level Switch Bi Color Magnetic Level Indicator for Measure Tank Liquid

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

UHC

Range

0-10m

Measurement Accuracy

±8mm

Accuracy

0.25%

Kind

Liquid Level Transmitter

Warranty

1 Year

Material

SS304, SS316, PTFE, PP, PVC, PVDF

Process Temp.

-190~425℃

Signal Output

4~20mA, Hart

Protection

IP65/IP67/IP68

Product Description

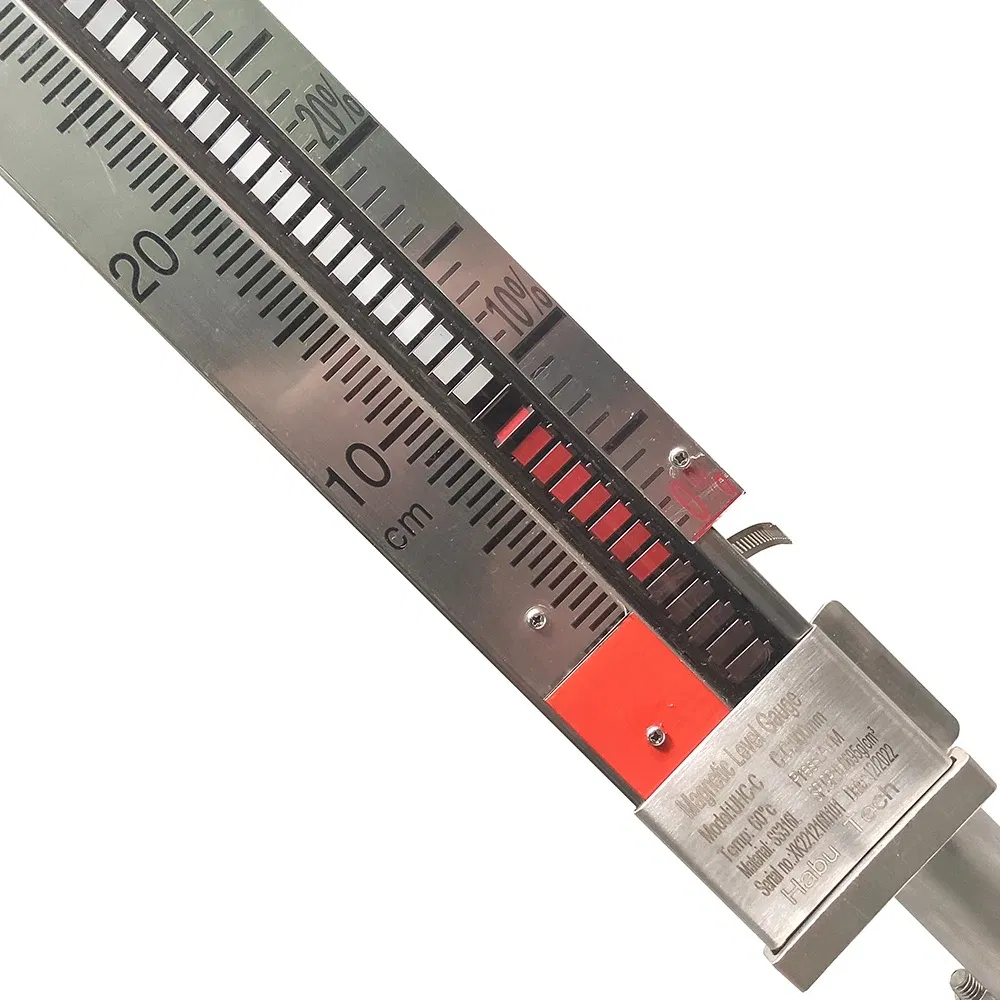

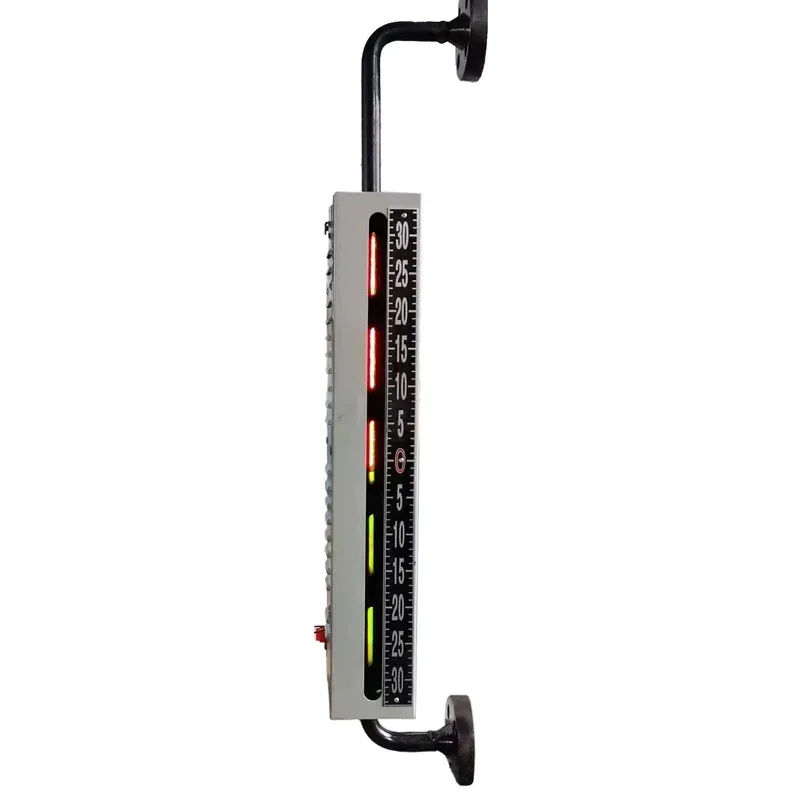

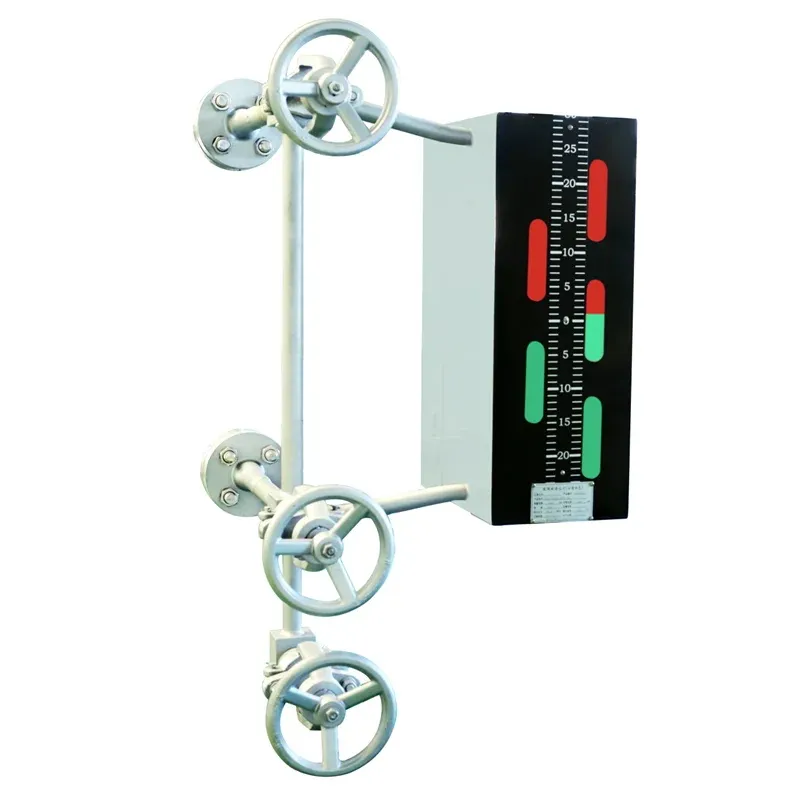

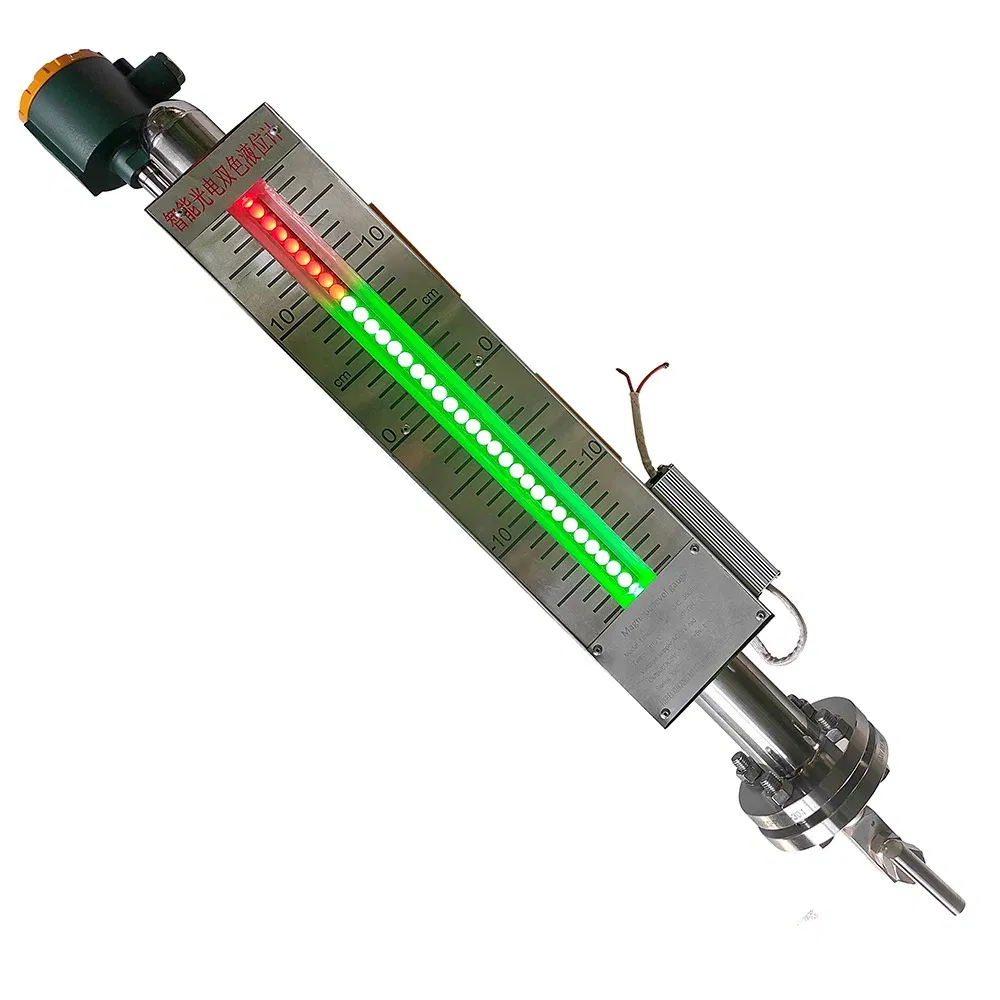

Magnetic Level Gauges provide clear, high-clarity indication of liquid levels. Principally designed as a superior alternative to glass level gauges, these instruments consist of three major components: Float Chamber, Float, and Indicator System (Capsule or Bi-colour Rollers).

Operating on the principle of magnetic field coupling, the float contains magnets providing a 360° magnetic flux field to transmit fluid level information accurately through the non-magnetic chamber wall.

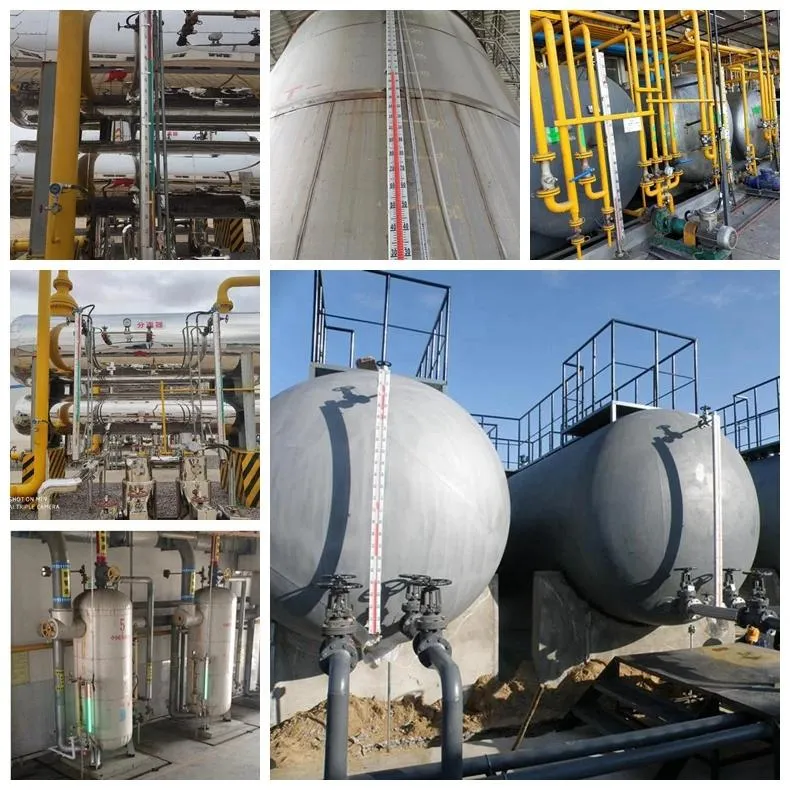

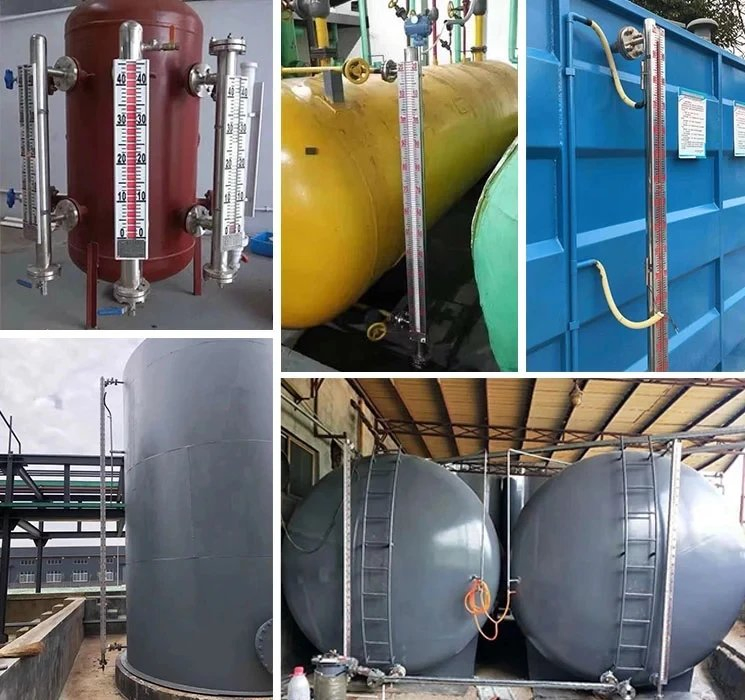

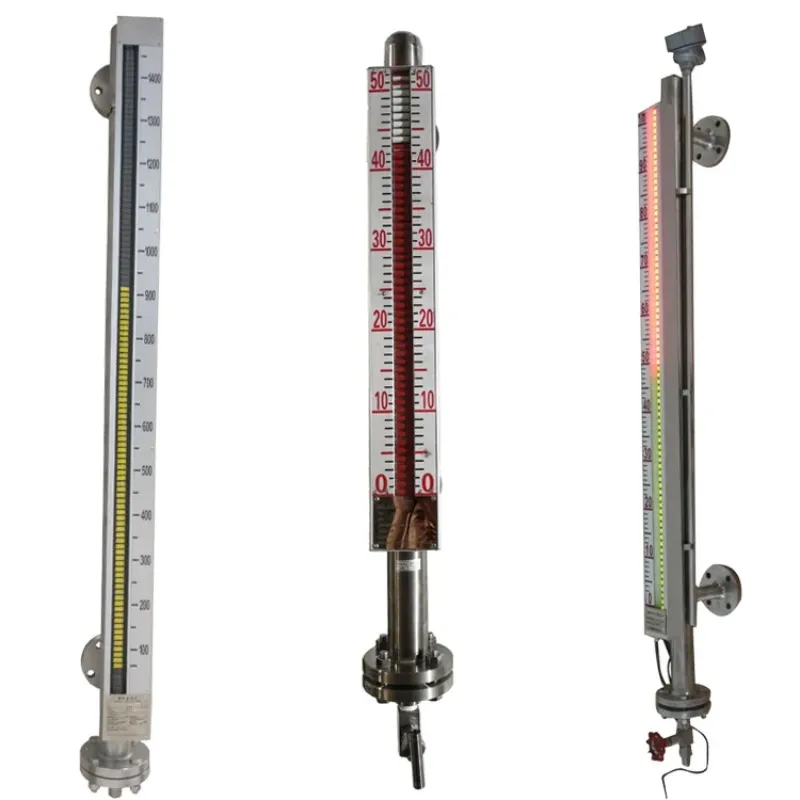

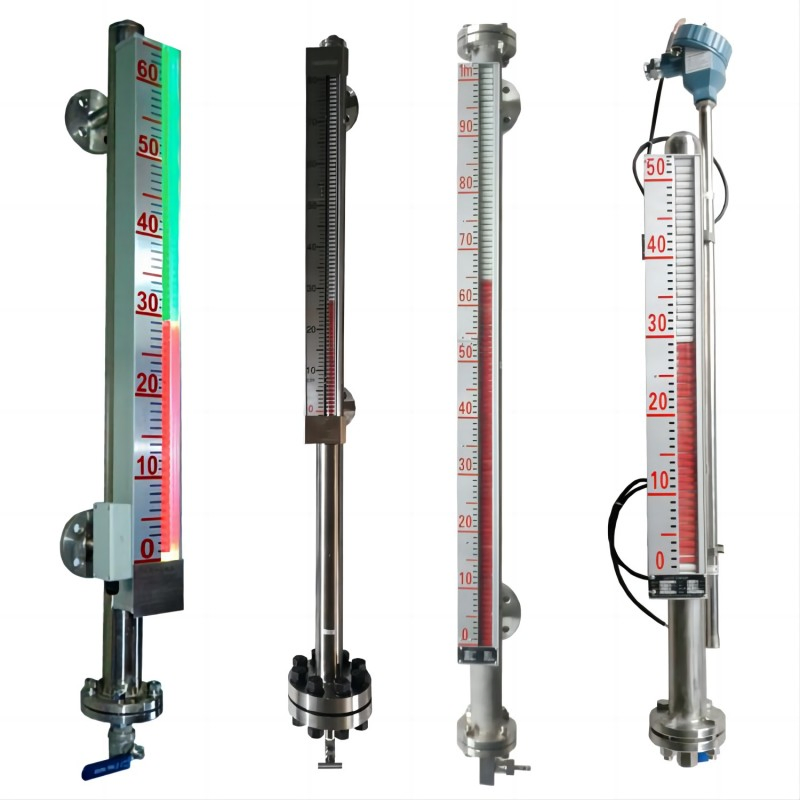

Available Models

■

Basic Model: Suitable for standard level measurement (Pressure < 4.0MPa, Temp < 200ºC).

■

Anti-corrosion Model: Utilizes PTFE lined stainless steel, PPR, or PVC for acids and alkalis.

■

Jacketed Model: Designed for antifreeze, insulation, or heating (Steam, Water cycle, or Electric jackets).

■

High Temp/Pressure Model: For extreme environments (Up to 520ºC and 32MPa).

Technical Parameters

Feature	Specifications
Float Cage Material	SS304, SS316, PTFE, PP, PVC, PVDF
Max. Distance	6000 mm (Greater on request)
Connecting Flanges	DIN or ANSI B16.5
Rated Pressure	<10.0 Mpa (SS), 0.3 Mpa (PP/PVC/PVDF)
Specific Gravity	Min. 0.40g/cm³
Scale	Graduated in cm, Aluminium or SS304
Signal Output	4~20mA DC, Pulse, RS485
Switch Type	NO, NC, SPDT
Accuracy	+/- 5 mm

Quality Assurance & Packaging

Frequently Asked Questions

● What are the primary materials used for the float chamber?

We offer a wide range of materials including SS304, SS316, PTFE, PP, PVC, and PVDF to suit different chemical compatibilities and process requirements.

● Can this level gauge handle high-temperature applications?

Yes, our high-temperature models can handle process temperatures up to 520ºC, while our standard stainless steel models are rated for up to 450ºC.

● What is the maximum measurement range available?

The standard maximum centre-to-centre distance is 6000 mm, but greater lengths can be customized upon request.

● Does it provide remote signal transmission?

Yes, the gauge can be equipped with transmitters providing 4~20mA DC, Hart, Pulse, or RS485 signals for remote monitoring.

● Is the level indicator visible from a distance?

Absolutely. The magnetic level gauge features highly visible bi-colour rollers or capsules that provide clear indication without the process fluid ever touching the indicator glass.

● What are the safety benefits of using a magnetic level gauge?

It is much safer for corrosive, flammable, toxic, and high-pressure applications because there is no glass to break and the indicator is completely isolated from the process fluid.
