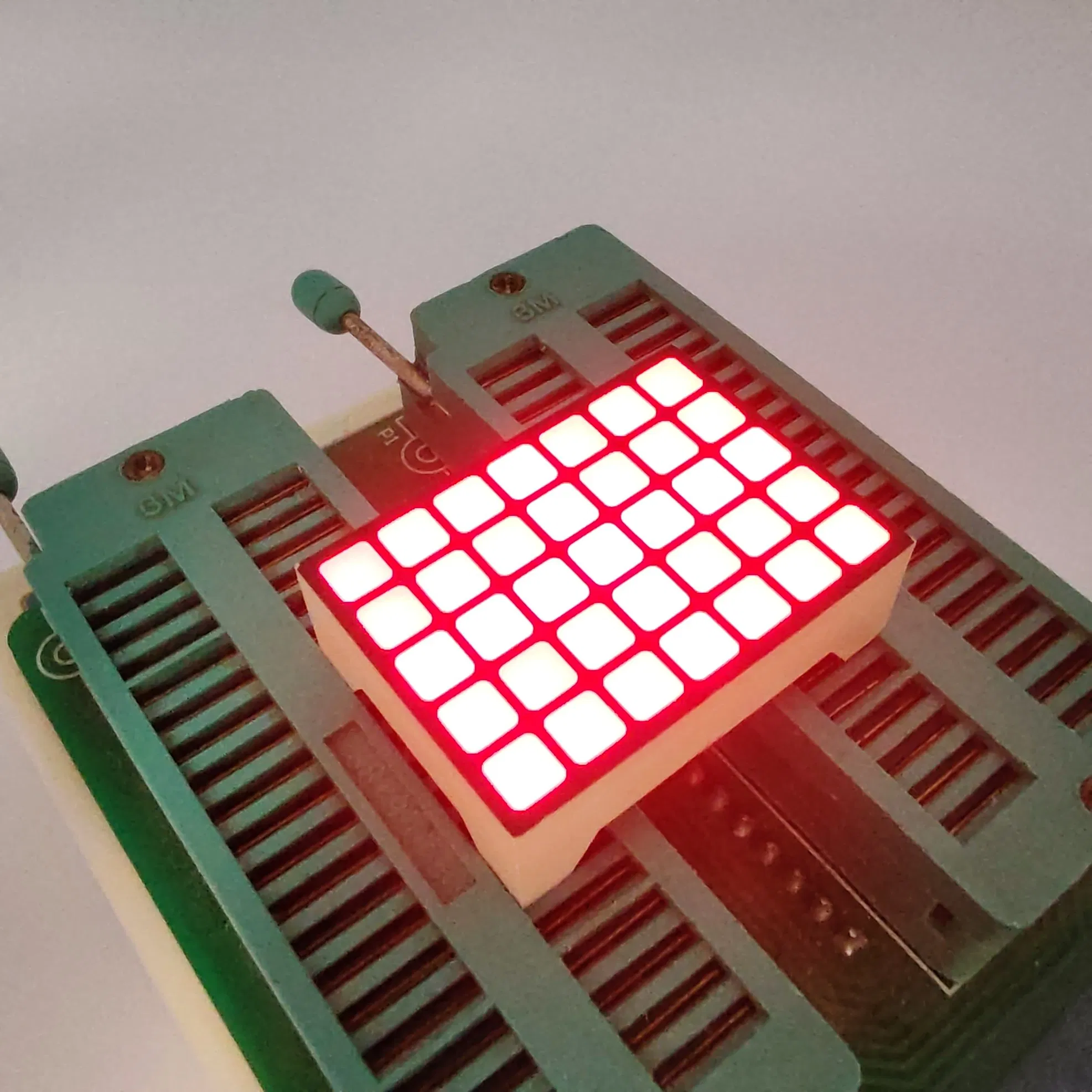

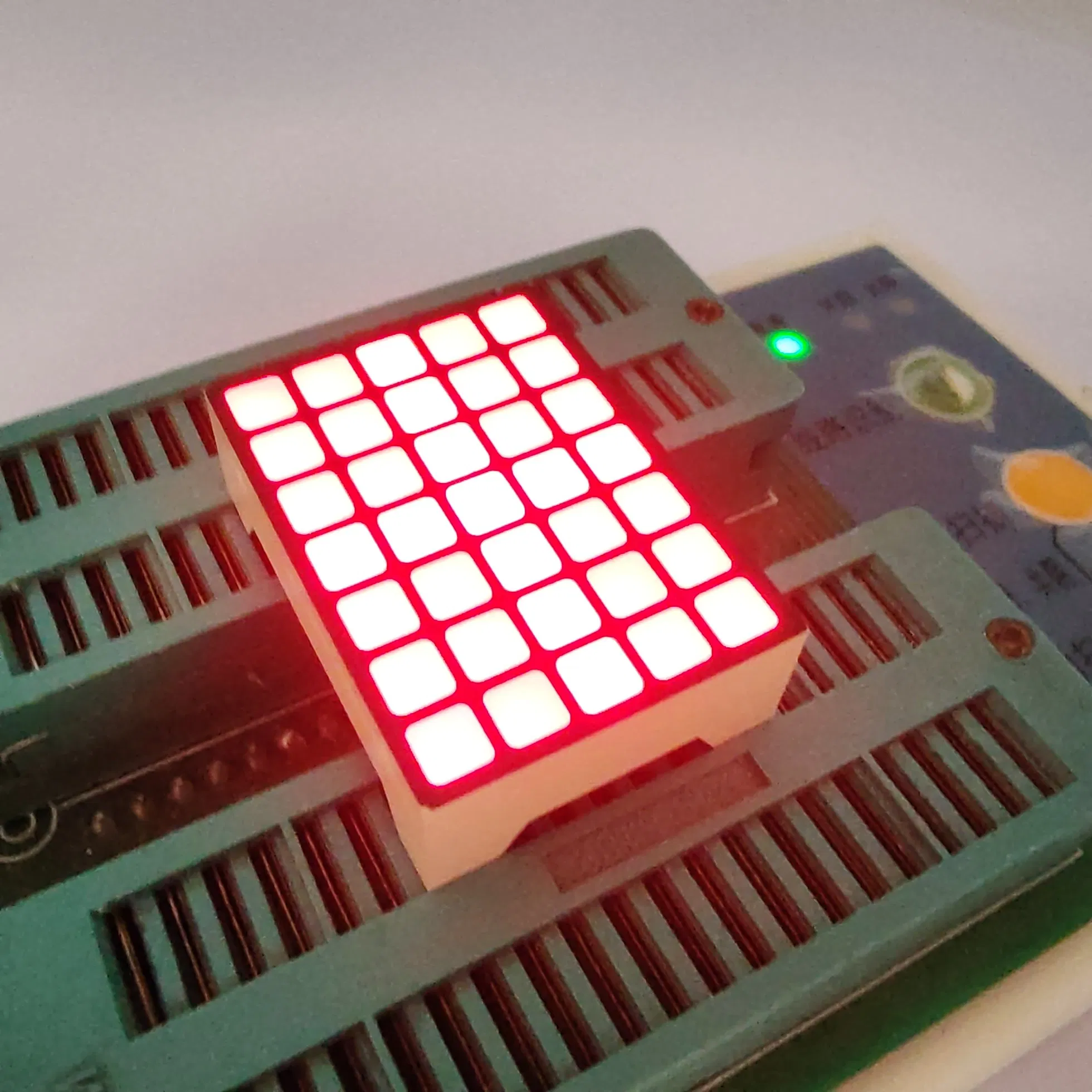

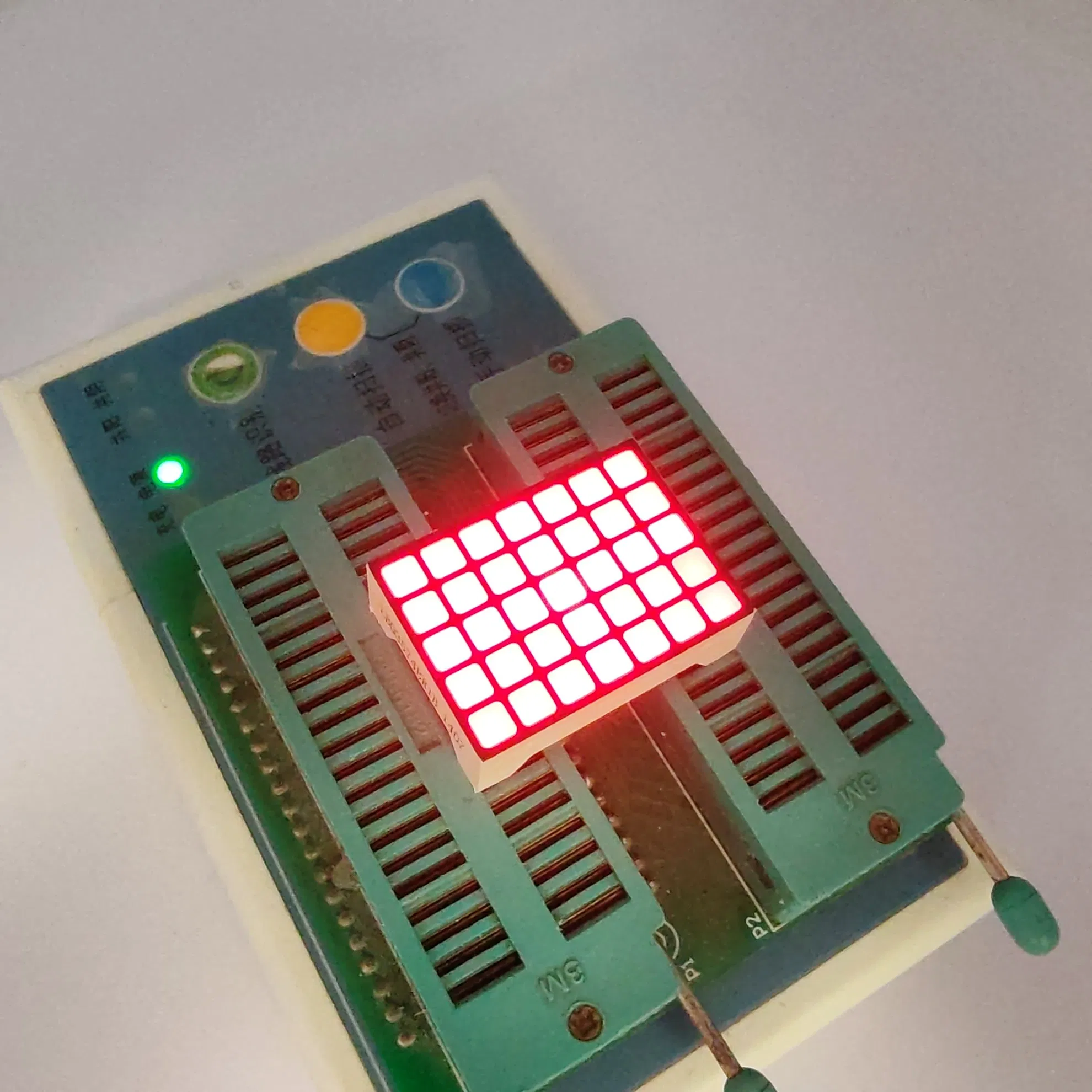

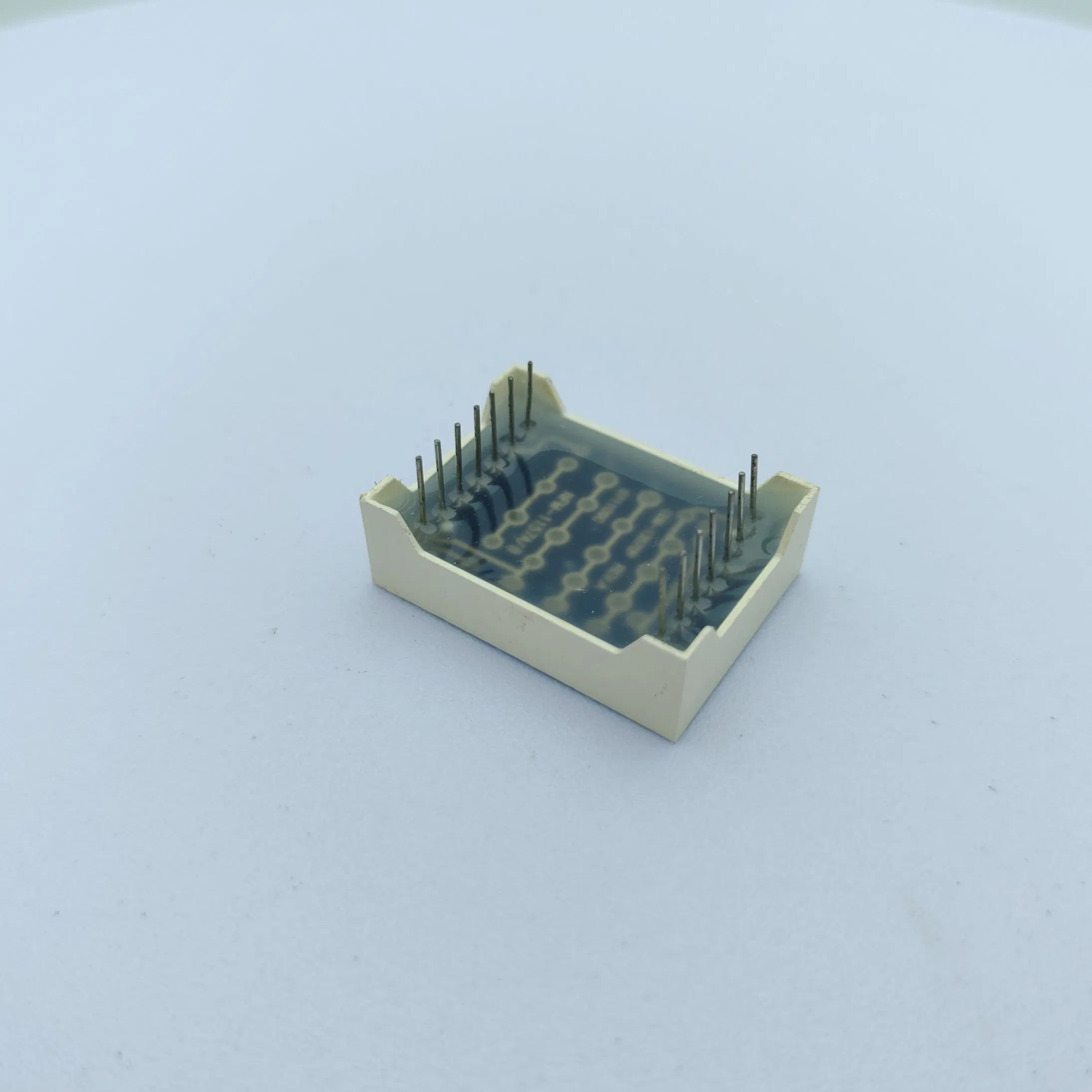

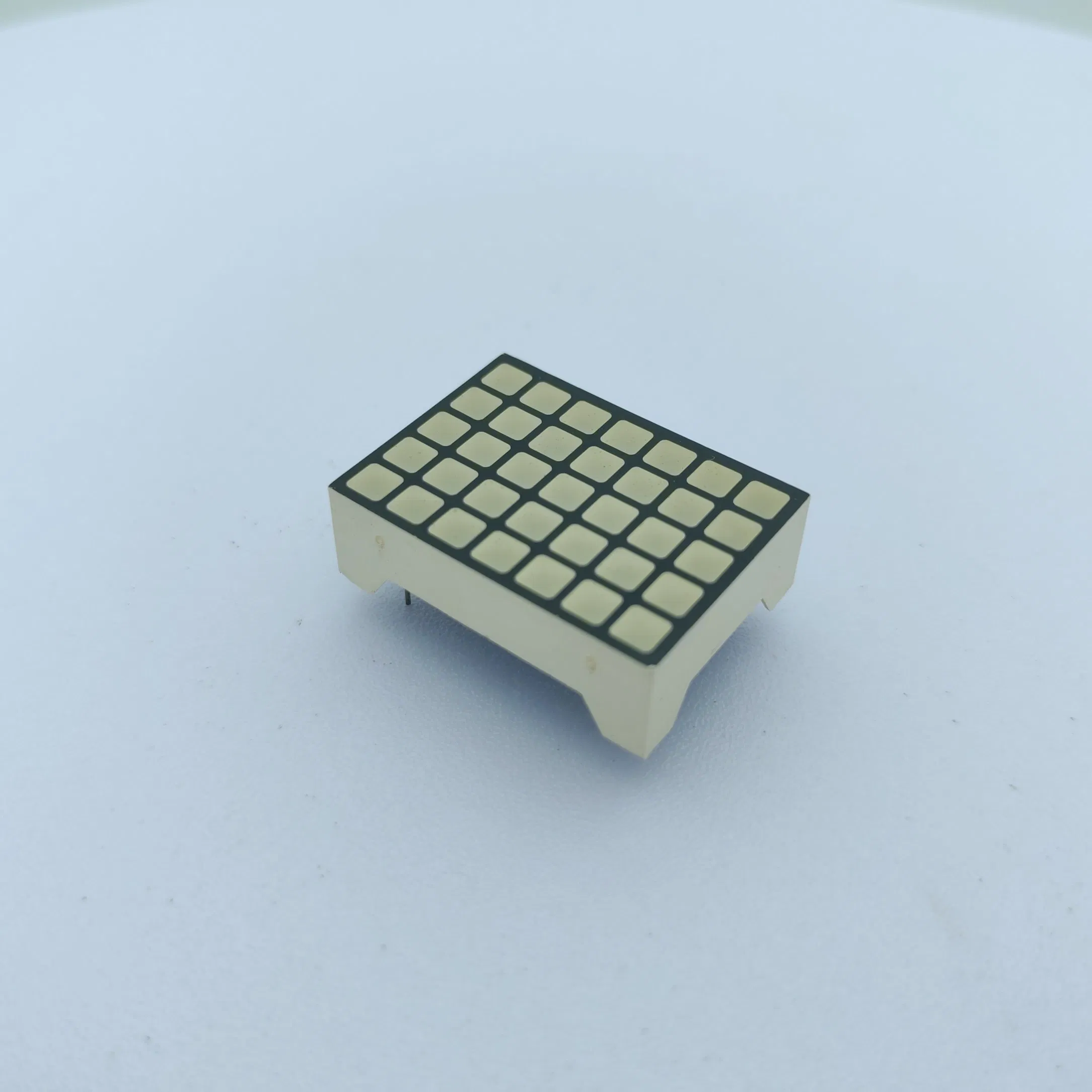

5*7 Square DOT Matrix LED Display Super Bright Red

Basic Information

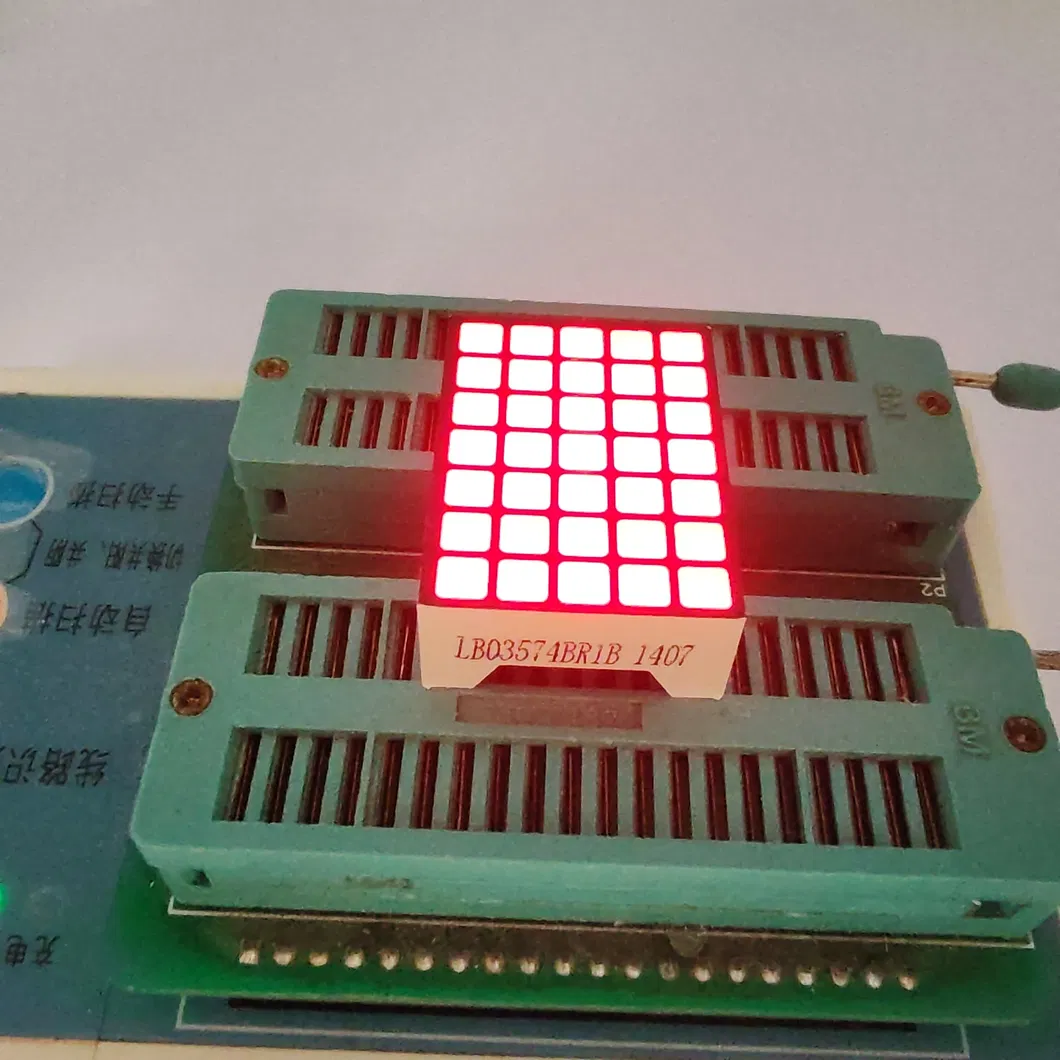

Model NO.LB03574BR1B

Emitting ColorSuper Bright Red

IP RatingIP54

Pixel Pitch3.39 mm

Life80000h

CertificationRoHS, CE, Reach

PolarityRow Anode Column Cathode

Luminous Intensity50-60mcd

Specification22*30*10mm

Production Capacity20000 PCS/Day

Product Description

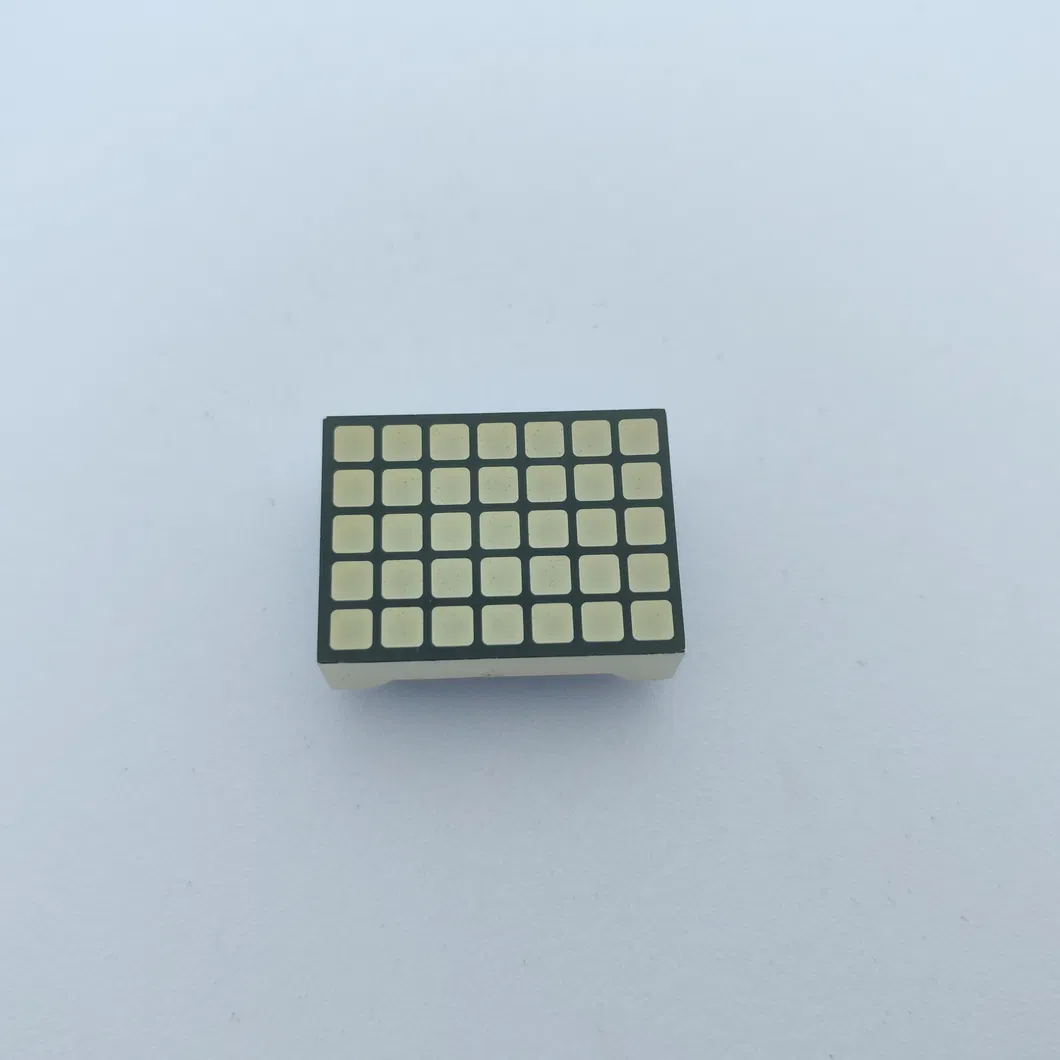

5*7 Square DOT Matrix LED Display Super Bright Red for Elevator Floor Indicator

Category	Specification	Details / Options
Product Type	5×7 Square Dot Matrix LED Display	-
Dot Diameter	3.39mm	-
Outer Dimensions	22 × 30 × 10mm	-
Connection Type	Row Anode, Column Cathode	-
Emitting Color	Super Bright Red	Also available in Red, Blue, Yellow, Green, Orange, White, Amber
Forward Voltage (VF)	1.8-2.2 V per LED	-
Key Features	• High luminous intensity • Low power consumption • Long lifetime • IC compatible • RoHS compliant	-

Technical Parameters

Absolute Maximum Ratings (Ta=25ºC):

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Product Applications

Our LED Displays are at the forefront of innovation, integrating seamlessly into diverse applications. They are ideal for home appliances, temperature and humidity readings, refrigerator controllers, thermostats, and HVAC systems, exemplifying superior performance and quality.

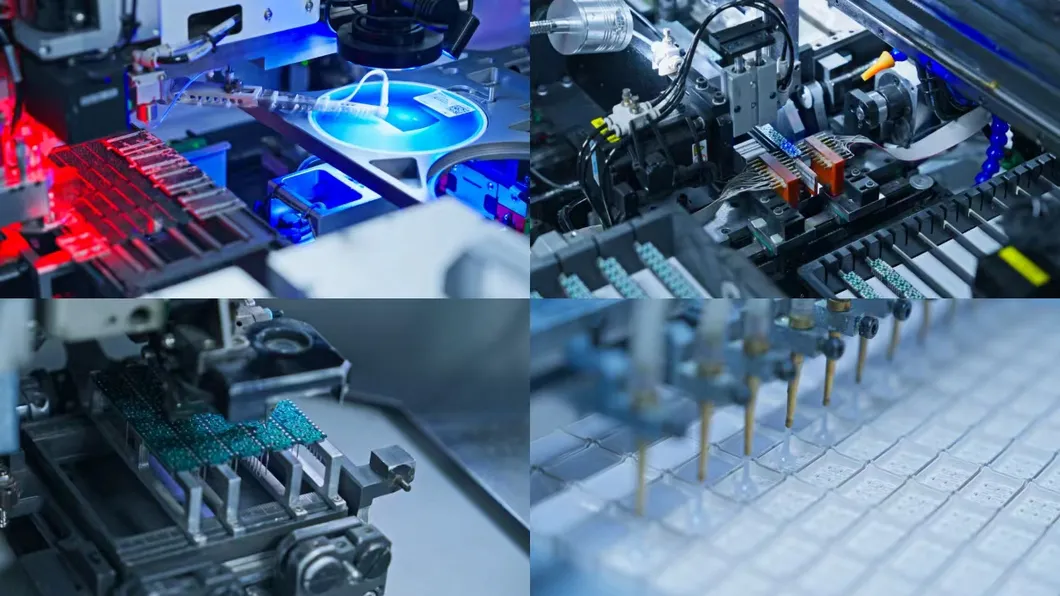

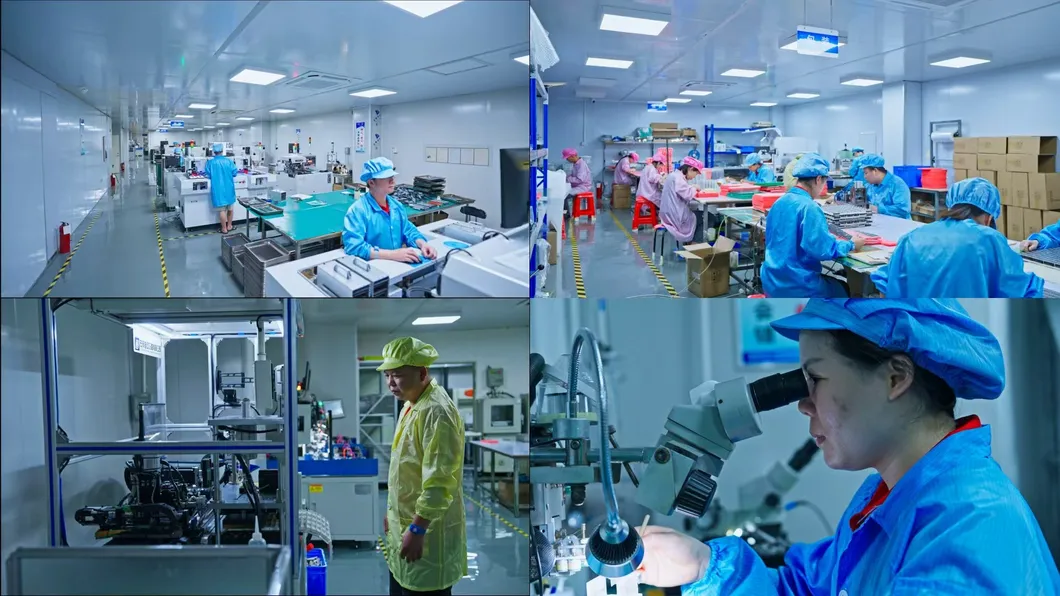

Certifications & Factory Overview

Transportation Methods

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

What are your main products?

Our main products include 7 Segment LED displays, SMD LED Displays, Dot matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, and SMD LEDs.

What is your Minimum Order Quantity (MOQ)?

Our standard MOQ is 1000 pcs. However, we can also accept sample orders and small orders with quantities less than our MOQ for testing purposes.

Can I get samples for testing before placing an order?

Yes, we can provide 5-10 free samples for your testing, though the freight cost is typically borne by the customer.

How long is the typical delivery time?

Delivery usually takes about 10-20 days, depending on the order quantity and raw material availability. Urgent orders can sometimes be prepared within 7-10 days.

How do you ensure the quality of your products?

We are an ISO 9001 QMS certified manufacturer. We conduct 100% testing twice for all of our products before shipment to ensure the highest quality standards.
