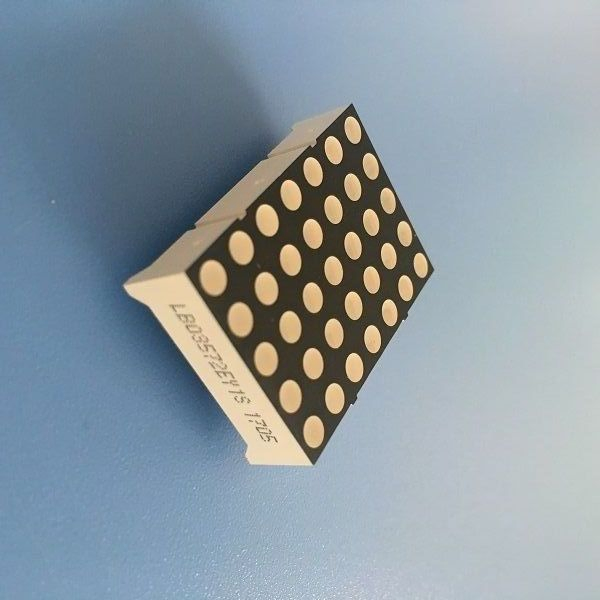

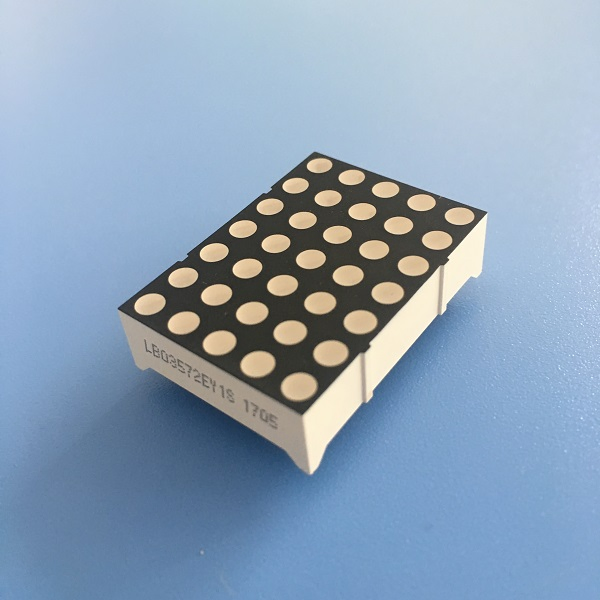

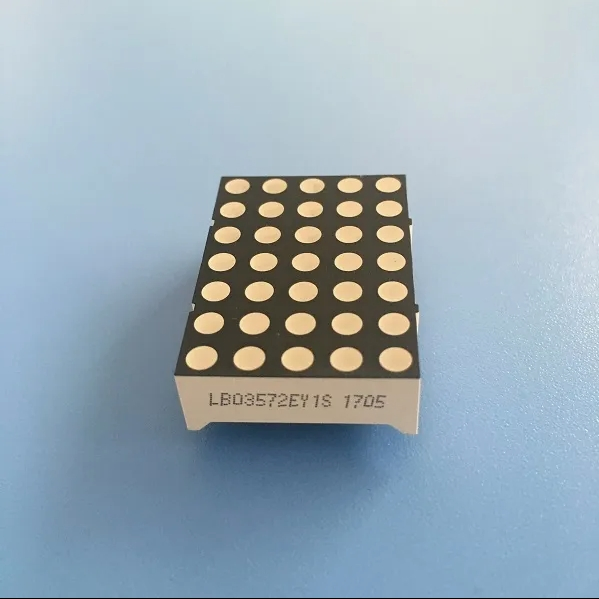

Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs
Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs
Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs
Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs
Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs
1 / 5
Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs
Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs
Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs
Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs
Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs

Uitra Bright White DOT Matrix LED Display 3mm for Moving Signs

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Information
Model NO.
LB03571BW1S
Emitting Color
Super Bright White / Yellow
IP Rating
IP54
Pixel Pitch
3 mm
Certification
RoHS, CE, Reach
Polarity
Row Anode Column Cathode
Specification
23 x 39.1 x 8 mm
Capacity
20000 PCS/Day
Product Description

Super Bright White Dot matrix LED Display 3mm for moving signs / message boards

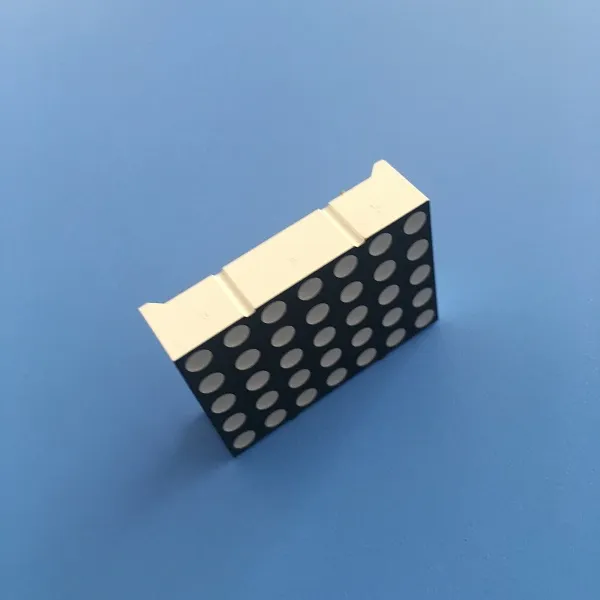

LED Display 1

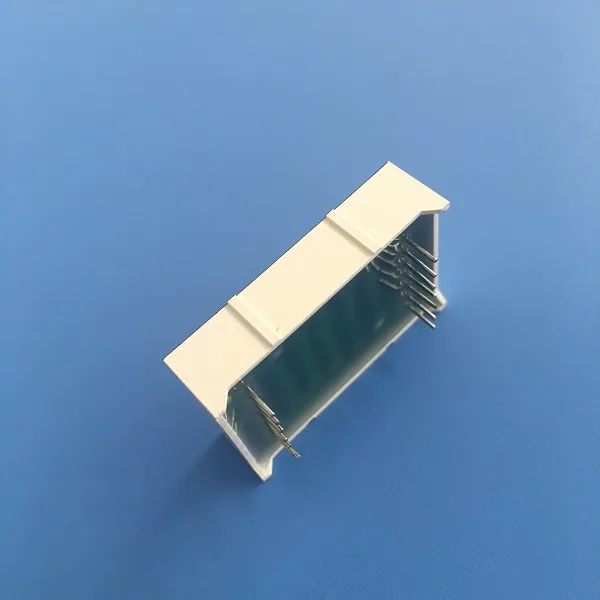

LED Display 2
LED Display 3

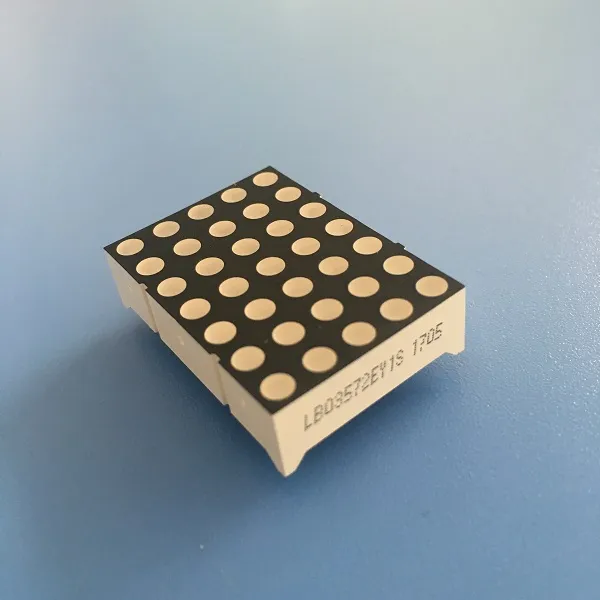

LED Display 4
LED Display 5
Technical Features & Specifications
  • Outer dimensions: 22.75 x 31.8 X 8.5mm
  • Diameter for dot: 3.0mm
  • White dots black surface
  • Wavelength: 585-595nm
  • Luminous Intensity: 70-80mcd
  • Forward voltage: 1.8-2.5V / dot
  • Forward current: 5-10mA
  • High efficiency and low power consumption
  • Big viewing angle vertically and horizontally
  • IC Compatible & Long lifetime
  • RoHS Compliant
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice)Ipm20mA
Reverse Voltage (per dice)Vr5V
Power Dissipation (per dice)Pm80mW
Operating Temperature RangeTopr-40~+85ºC
Storage Temperature RangeTstg-40~+85ºC
Solder Temperature (≤3 seconds)Th260ºC
Ultra Bright White - Code: WH
Parameter Symbol Condition Min Typ Max Unit
Forward VoltageVfIf=10mA2.8-3.2V
Luminous IntensityIvIf=10mA120-140mcd
Color TemperatureKIf=10mA5500-6800K
Chromaticity CoordinatesX/YIf=10mA0.29,0.32-0.30,0.33nm
Applications
Suitable for elevator floor indicators, position indicators, digital displays, display screens, moving signs, message boards, and other electronic display systems.
Frequently Asked Questions
Q1: What is the pixel pitch of this dot matrix LED display?
A: The pixel pitch for this specific model is 3mm, providing clear and bright visibility for message boards.
Q2: What are the available emitting colors?
A: It is available in a variety of colors including Super Bright White, Red, Blue, Green, Amber, Orange, and Pure Green.
Q3: Is this product suitable for outdoor use?
A: This module has an IP54 rating, making it suitable for protected environments or indoor applications like elevator indicators and moving signs.
Q4: What is the operating temperature range?
A: The display operates efficiently within a temperature range of -40ºC to +85ºC.
Q5: Is the LED display RoHS compliant?
A: Yes, our products meet RoHS, CE, and Reach certification standards.
Q6: What is the polarity configuration of this model?
A: This model features a Row Anode Column Cathode polarity configuration.
