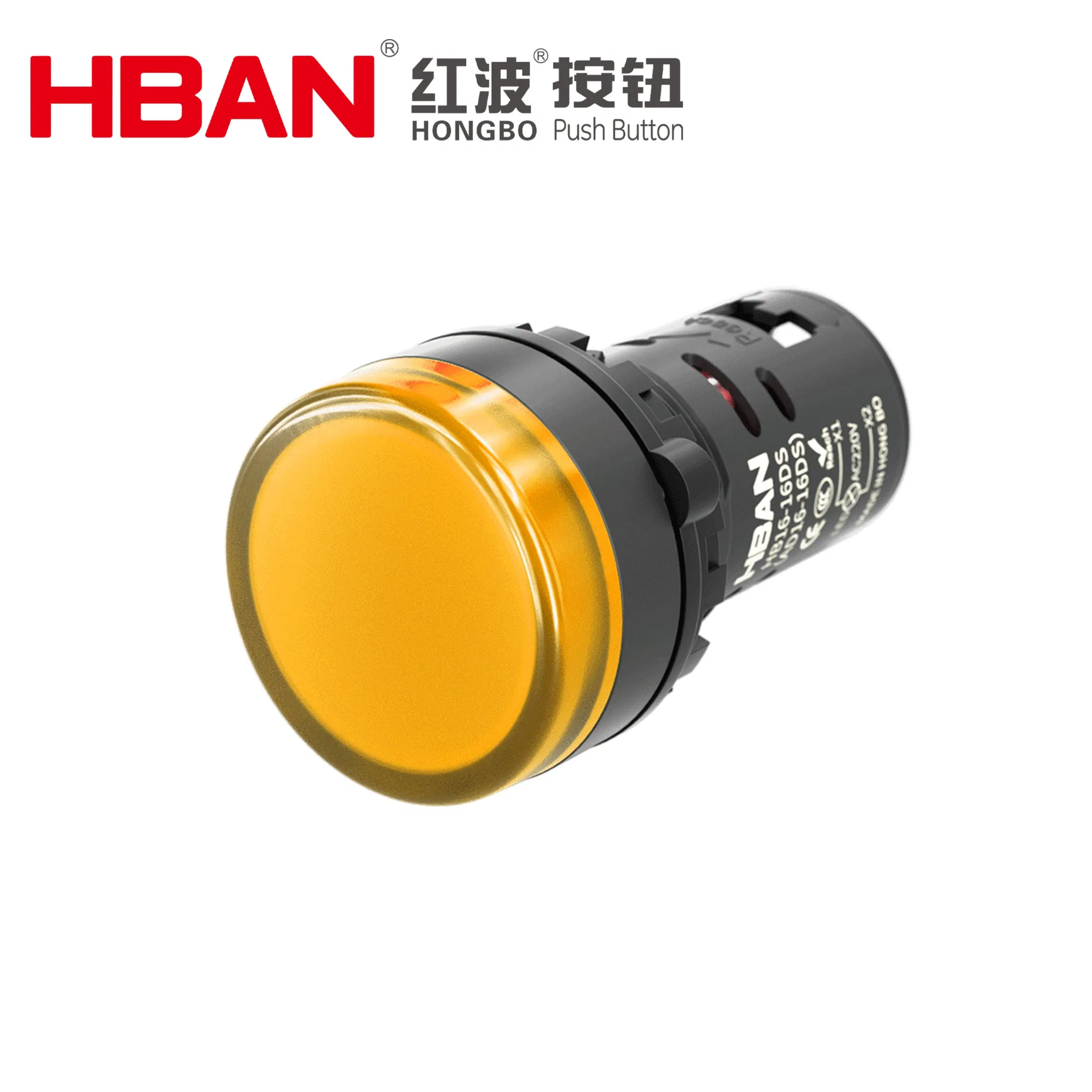

Hban 22mm Flat Round Head Pin Terminal Plastic Material 12V Orange DOT Illuminated Signal Indicator

📋 Basic Information

Model NO.

HB16-22DS/LED Voltage/O

Diameter

22mm

Wiring

Voltage

2V - 220V Options

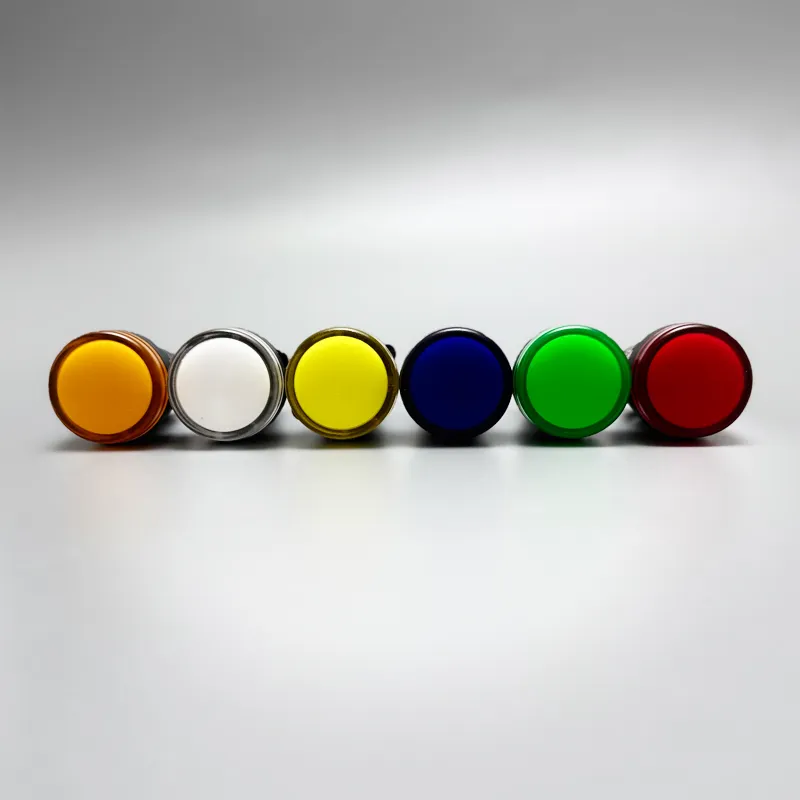

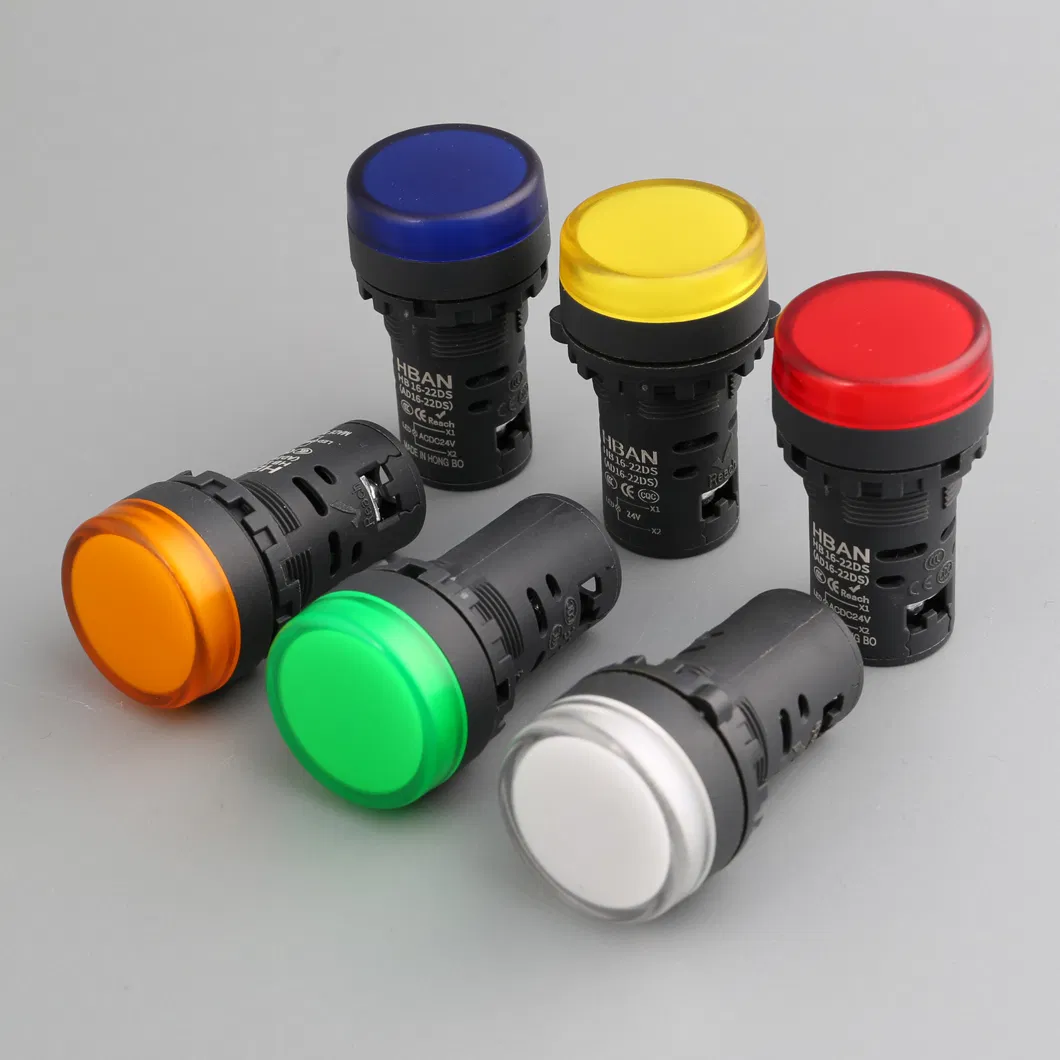

LED Color

Red, Green, Yellow, Orange, White, Blue

Crust Material

PC Plastic

IP Rating

IP40, IK09

Certification

ISO9001, CE, RoHS, Reach

Production Time

3-5 Working Days

Package Size

21.00cm * 13.00cm * 6.00cm

✨ Key Features & Advantages

High Safety

Plastic material provides excellent insulation, eliminating the risk of electric leakage and complying with industrial safety standards.

Durability

Engineered plastic resists oil stains, weak acids, bases, and humid environments. Stable performance from -25℃ to +65℃.

Energy Efficient

Equipped with LED light sources consuming ≤1W, providing high brightness with low heat generation.

⚙ Model Specifications

HB16 Series Configuration
Mounting Dimensions	Ø8mm, Ø10mm, Ø12mm, Ø16mm, Ø22mm, Ø30mm	Select size
Terminal Type	A: Pin terminal \| D: Screw terminal \| SM: Flashing	-
Structure	Standard or S: Ultra-short	-
LED Voltage	6V/12V/24V/36V/110V/220V	Customizable

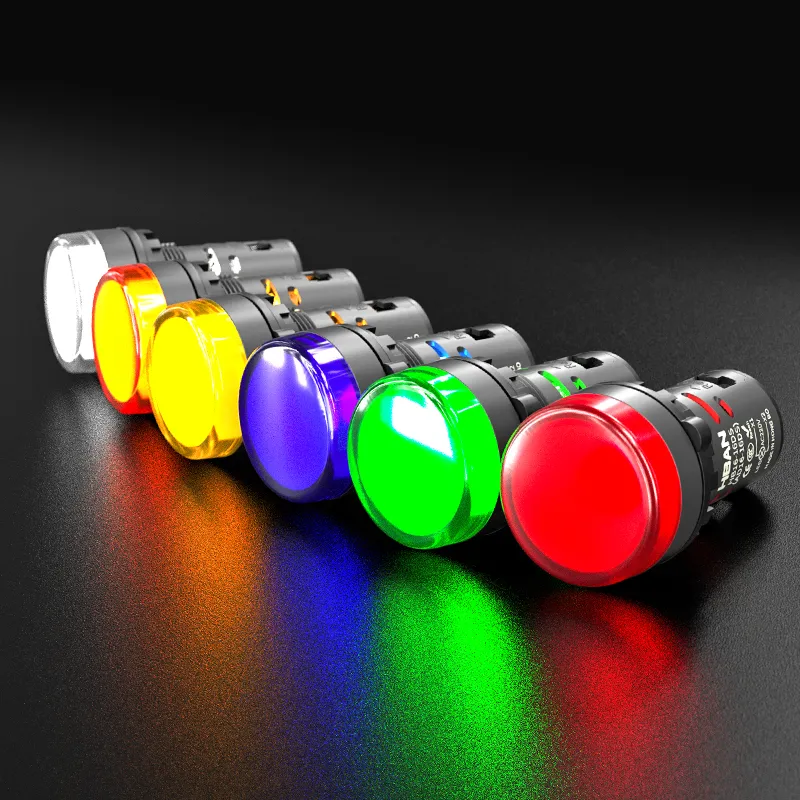

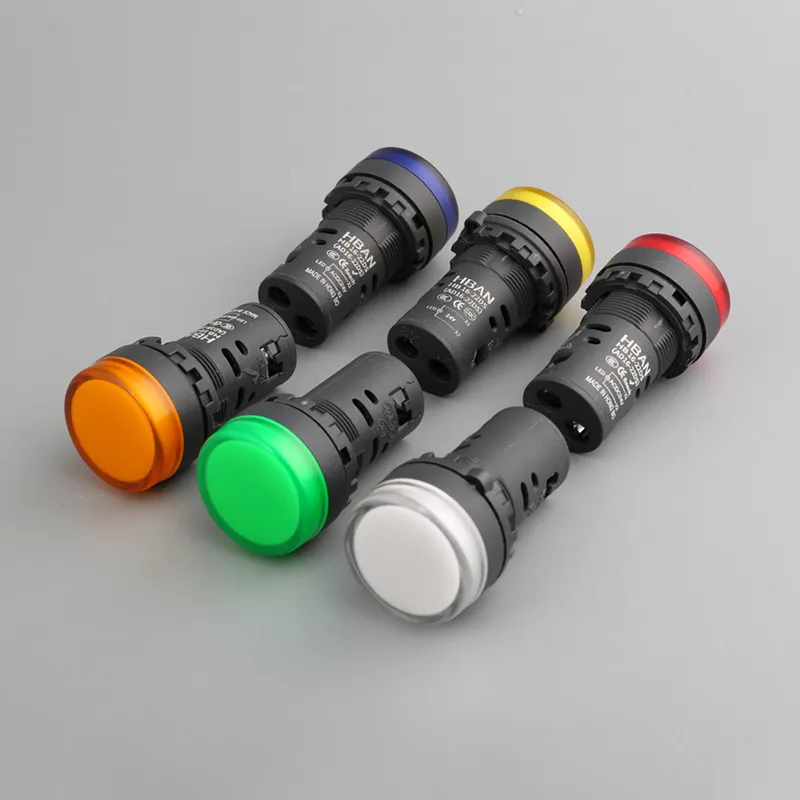

LED Color	Red, Green, Yellow, Orange, Blue, White	Multiple colors

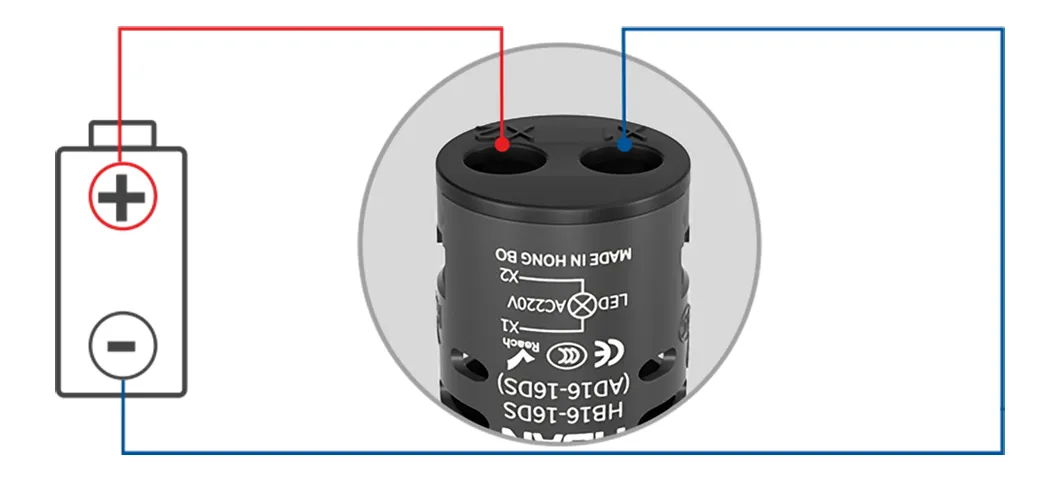

📌 Wiring & Installation

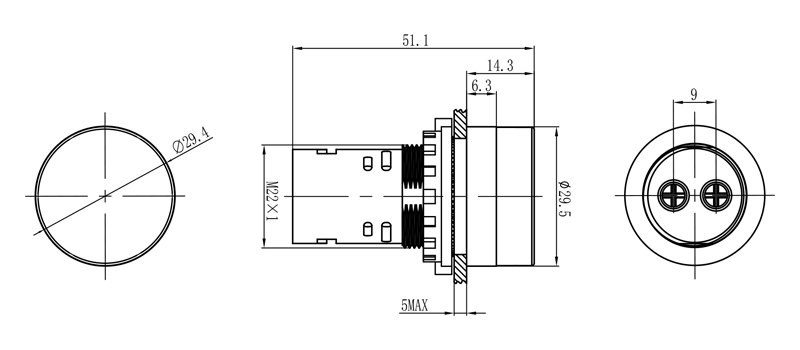

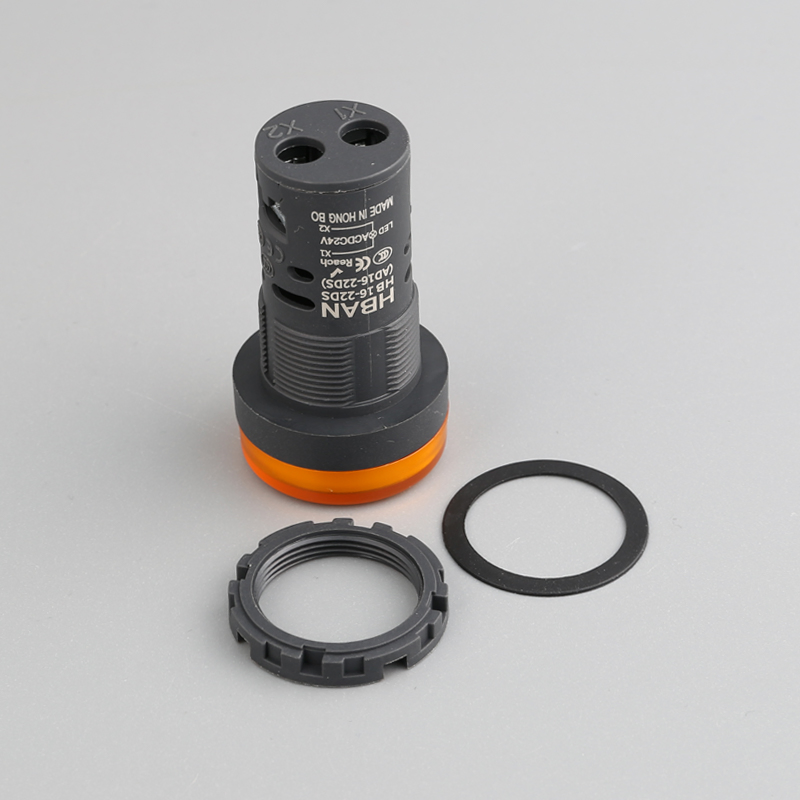

Mounting: 22mm / 0.866in hole size. Includes matching O-ring and Nuts.

Panel Thickness: 3.5mm Max. Tightening torque: About 0.6mm.

🚀 Applications

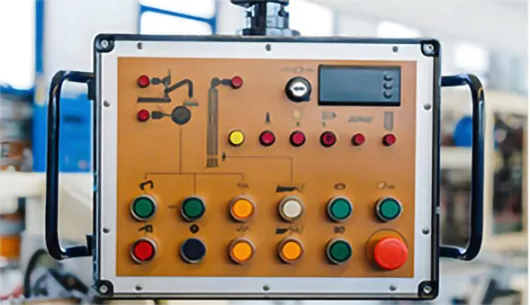

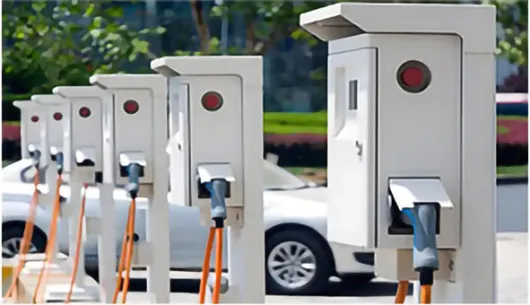

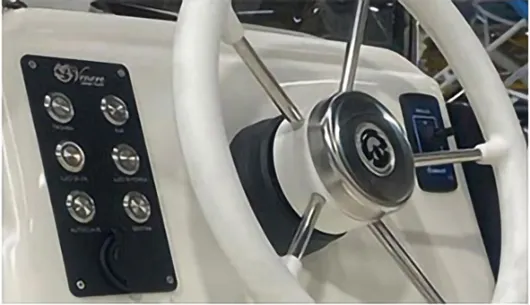

Widely used in Industrial Automation, EV Charging Stations, Marine Systems, Lab Equipment, and Rail Transit.

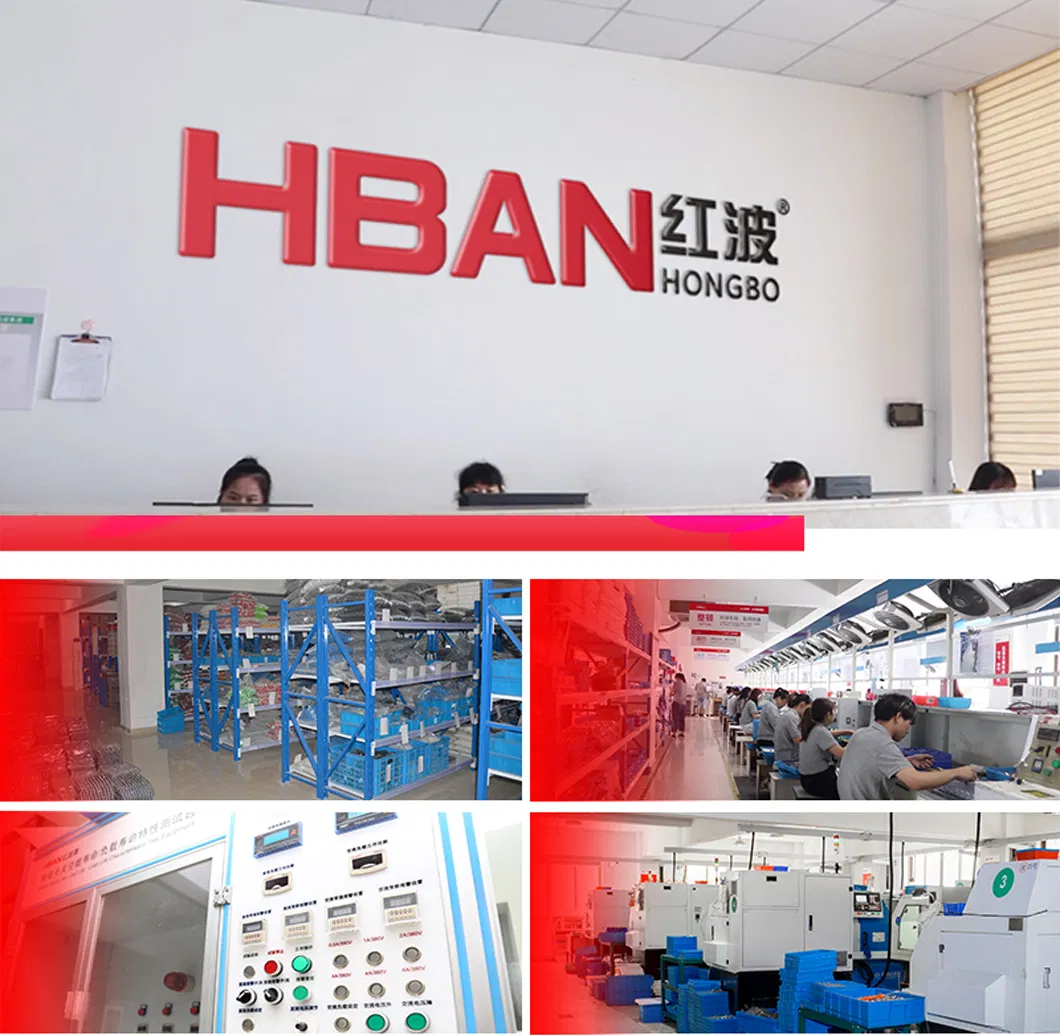

🏭 Production Facility

📦 Packaging & Shipping

Packaging Details: 20pcs/box. Products are placed in separate foam boxes to prevent collision, then packed in corrugated paper boxes with strapping tape reinforcement.

❓ Frequently Asked Questions

1. Do you provide OEM or ODM services?

Yes, we support both OEM and ODM services, including custom logos and colors. Please note that there is a minimum order quantity for customized products.

2. What payment methods are accepted?

We support multiple payment methods including T/T (Wire Transfer), Credit Cards, and Paypal. Please ensure the amount sent matches the pro-forma invoice.

3. How do you ensure product safety during transport?

We use separate foam compartments for each product to prevent collision. These are then placed in reinforced corrugated boxes secured with industrial strapping tape.

4. What is the standard warranty period?

All products come with a standard 1-year warranty period from the date of purchase.

5. What are the shipping times and carriers?

We ship via DHL, UPS, and FedEx. Standard processing takes 3-7 business days, and delivery usually takes 3-8 business days depending on the destination.

6. Can the LED voltage be customized?

Yes, while our standard voltages include 6V, 12V, 24V, 110V, and 220V, other specific voltage requirements can be customized upon request.
