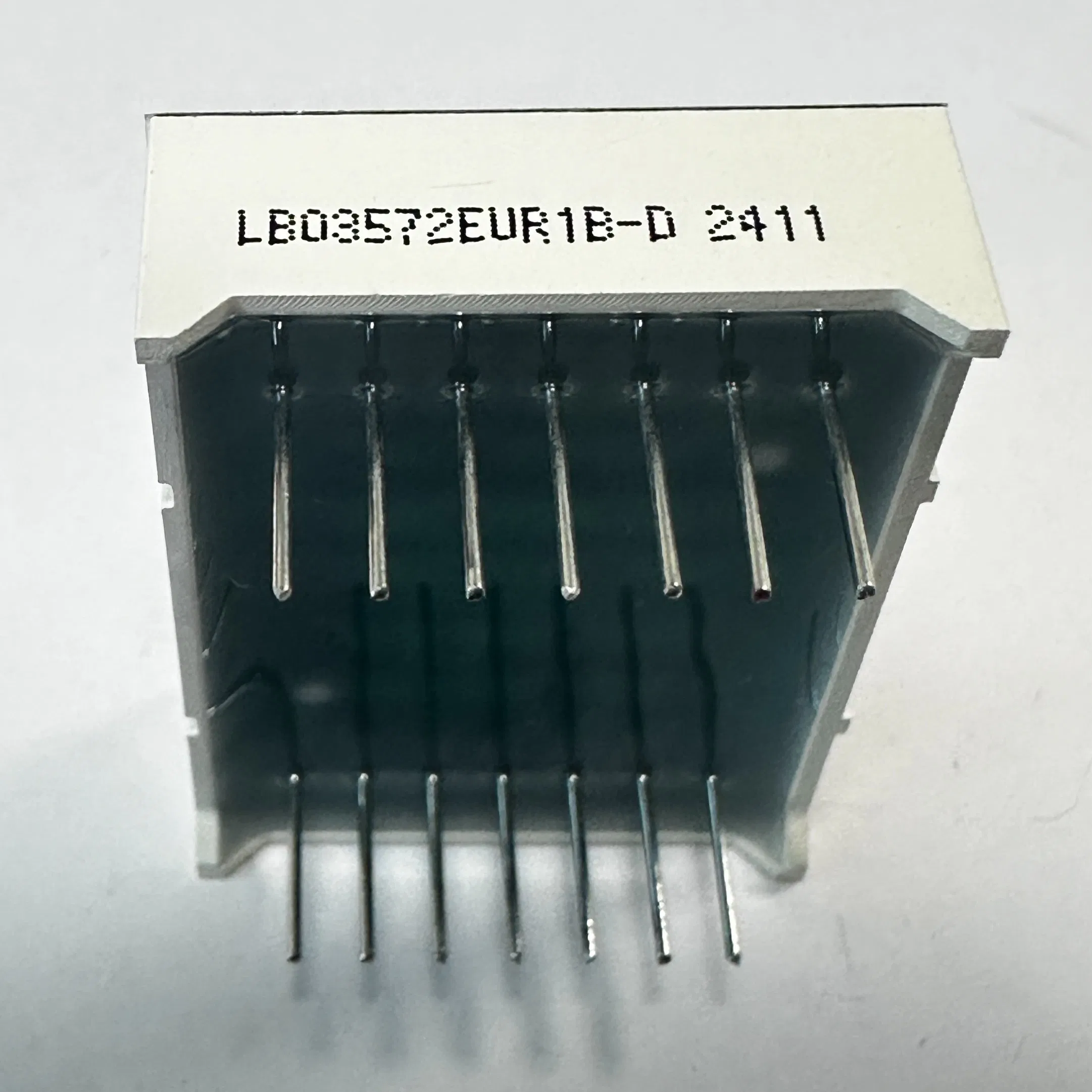

High-Visibility Ultra Red 3mm DOT Matrix LED Display
High-Visibility Ultra Red 3mm DOT Matrix LED Display
High-Visibility Ultra Red 3mm DOT Matrix LED Display
High-Visibility Ultra Red 3mm DOT Matrix LED Display
High-Visibility Ultra Red 3mm DOT Matrix LED Display
1 / 5
High-Visibility Ultra Red 3mm DOT Matrix LED Display
High-Visibility Ultra Red 3mm DOT Matrix LED Display
High-Visibility Ultra Red 3mm DOT Matrix LED Display
High-Visibility Ultra Red 3mm DOT Matrix LED Display
High-Visibility Ultra Red 3mm DOT Matrix LED Display

High-Visibility Ultra Red 3mm DOT Matrix LED Display

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
LB03572EUR1B-D
Pixel Pitch
2.5mm
Pixel Config
4R,2G,2B
Density
40,000 dots / m²
Scanning Mode
1/16 Scan
Display Type
Segment LED Display
IP Rating
IP54
LED Color
Ultra Bright Red
Forward Voltage
1.8-2.2V/LED
Specification
22.75 x 31.8 X 8.5mm
Capacity
20000PCS/Day
Gross Weight
0.500kg

Product Description

Ultra Red 3mm 5×7 Dot Matrix LED Display - Row Cathode

This high-visibility 5×7 dot matrix LED display is engineered for premium message boards, elevator indicators, and industrial control panels. With an emitting dot diameter of 3mm and a compact form factor (22.75 × 31.8 × 8.5mm), it provides exceptional readability and brightness. Utilizing ultra-bright red LEDs (620-625nm), it ensures clarity in diverse ambient lighting environments while maintaining low power consumption.

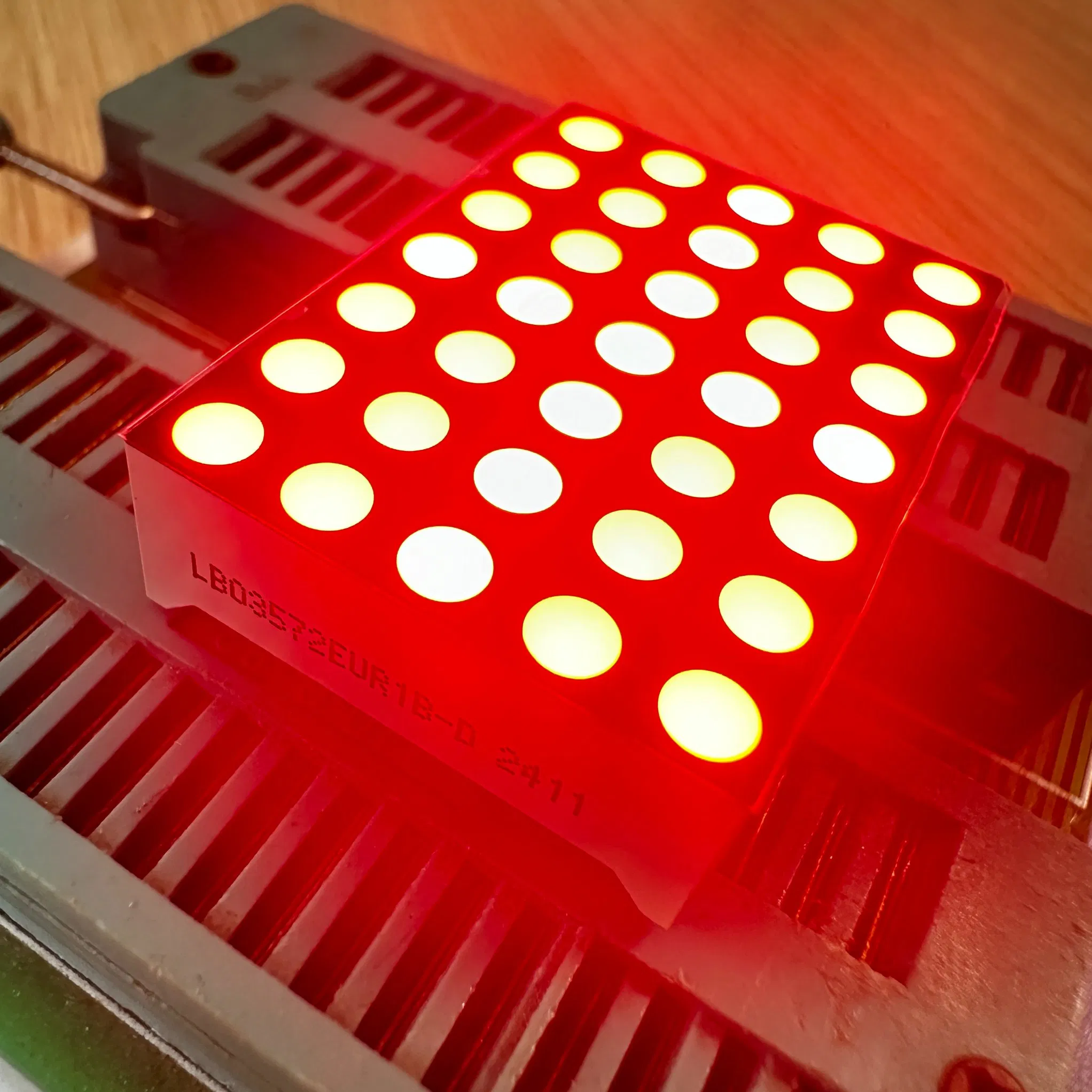

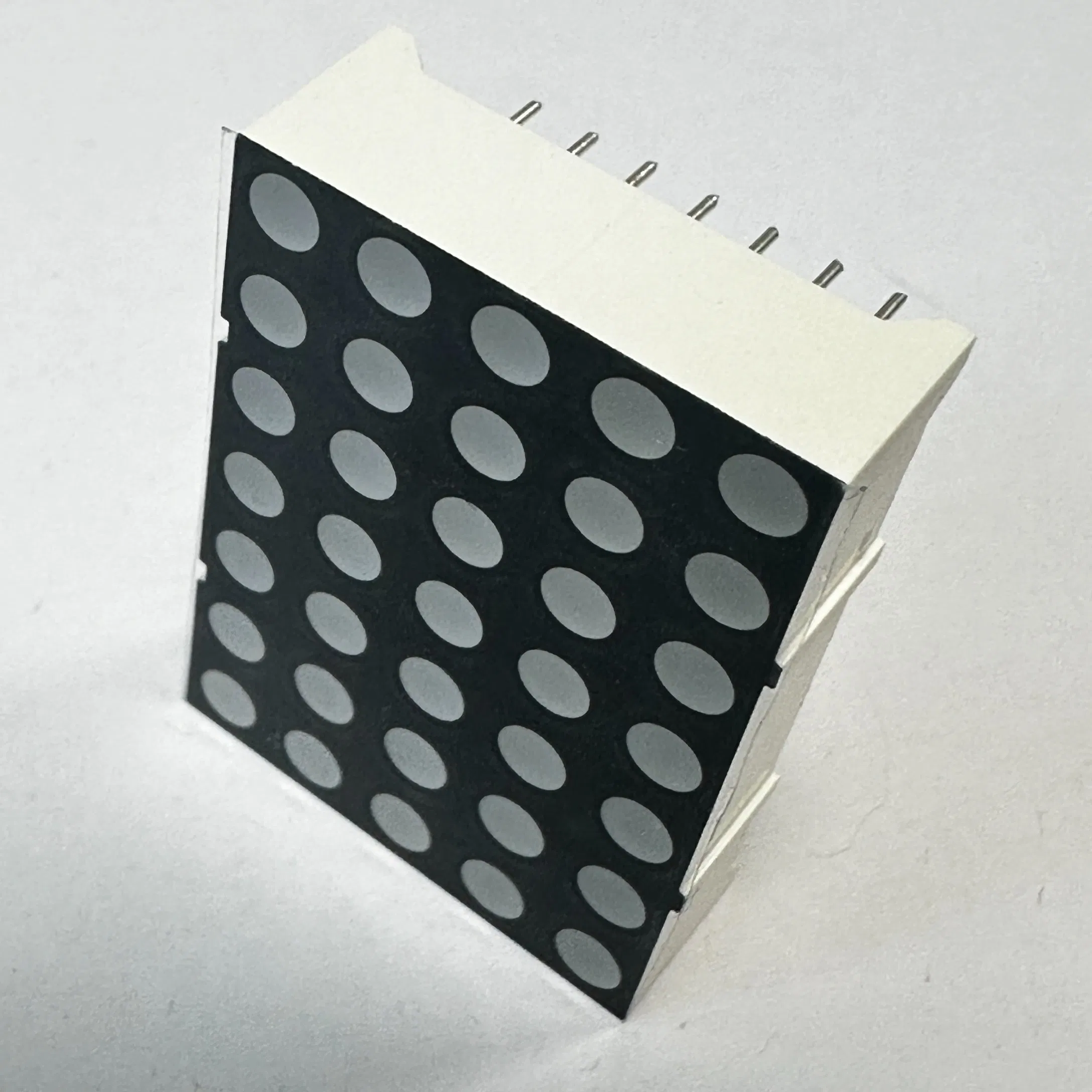

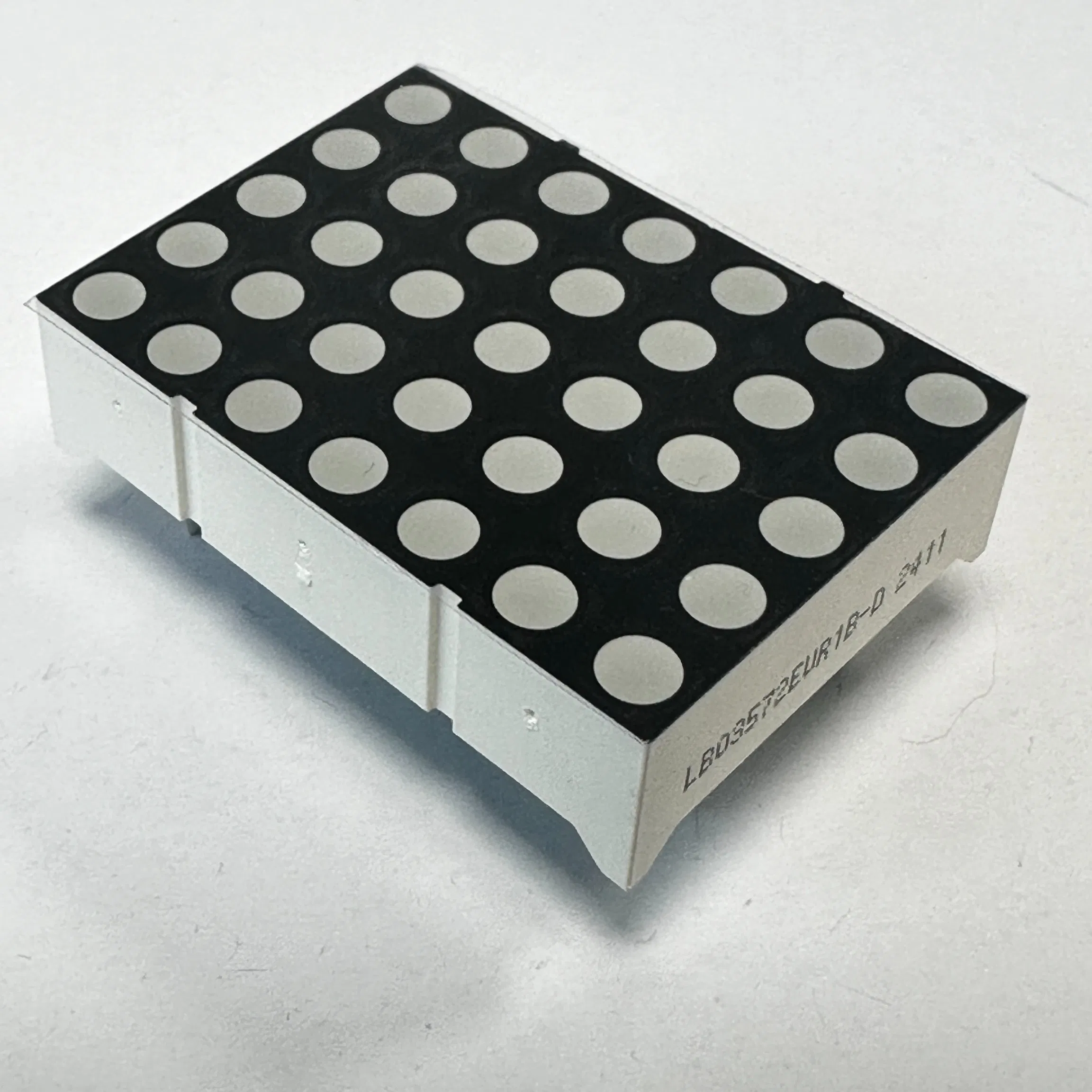

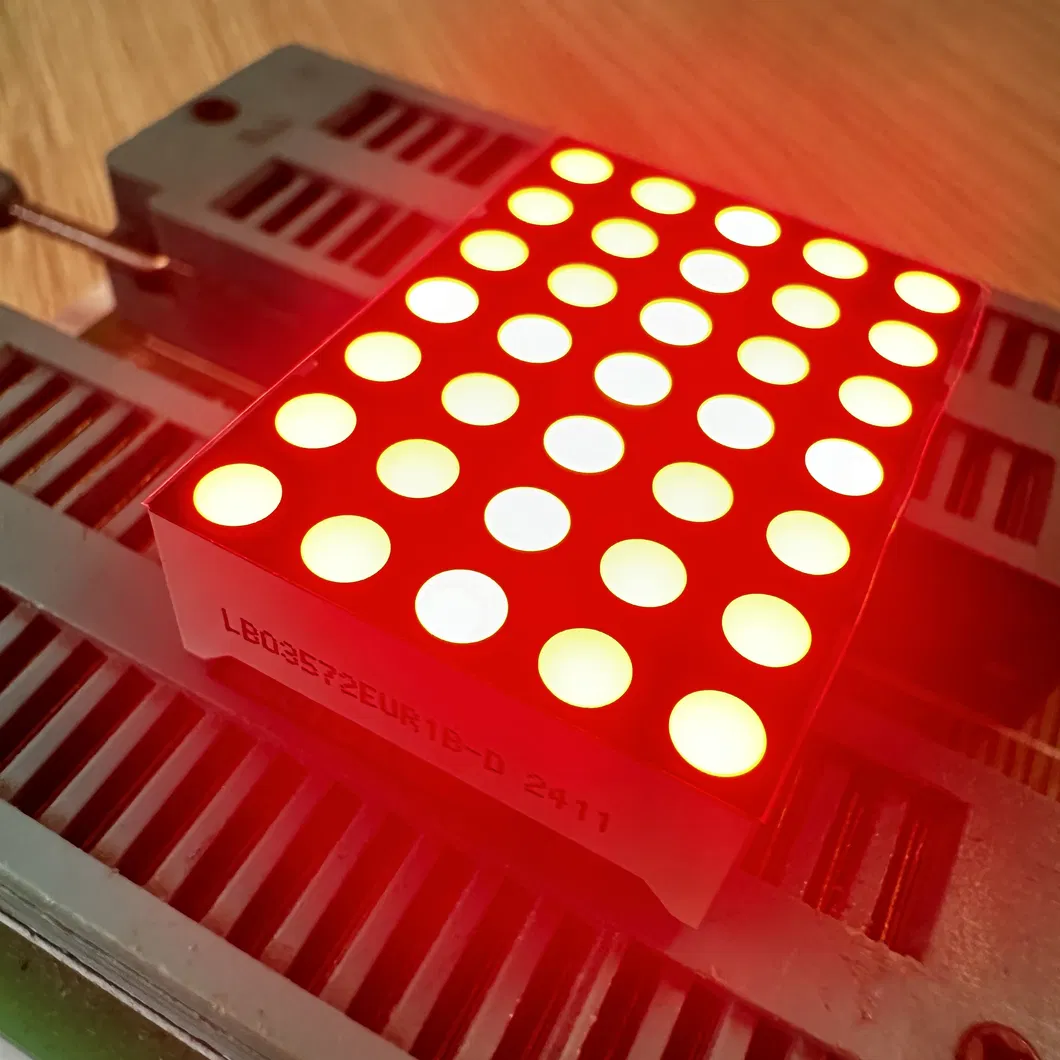

Dot Matrix LED Display Front

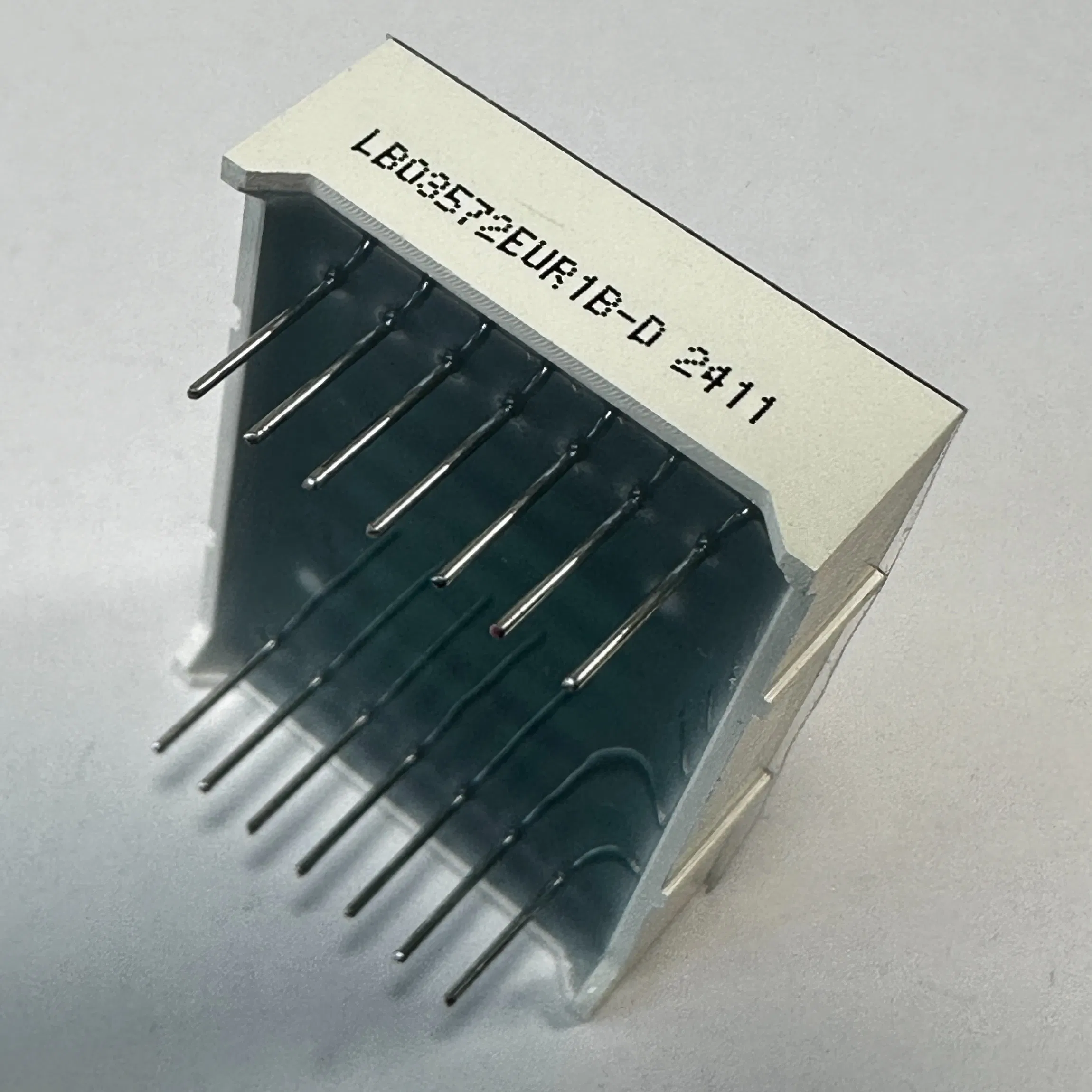

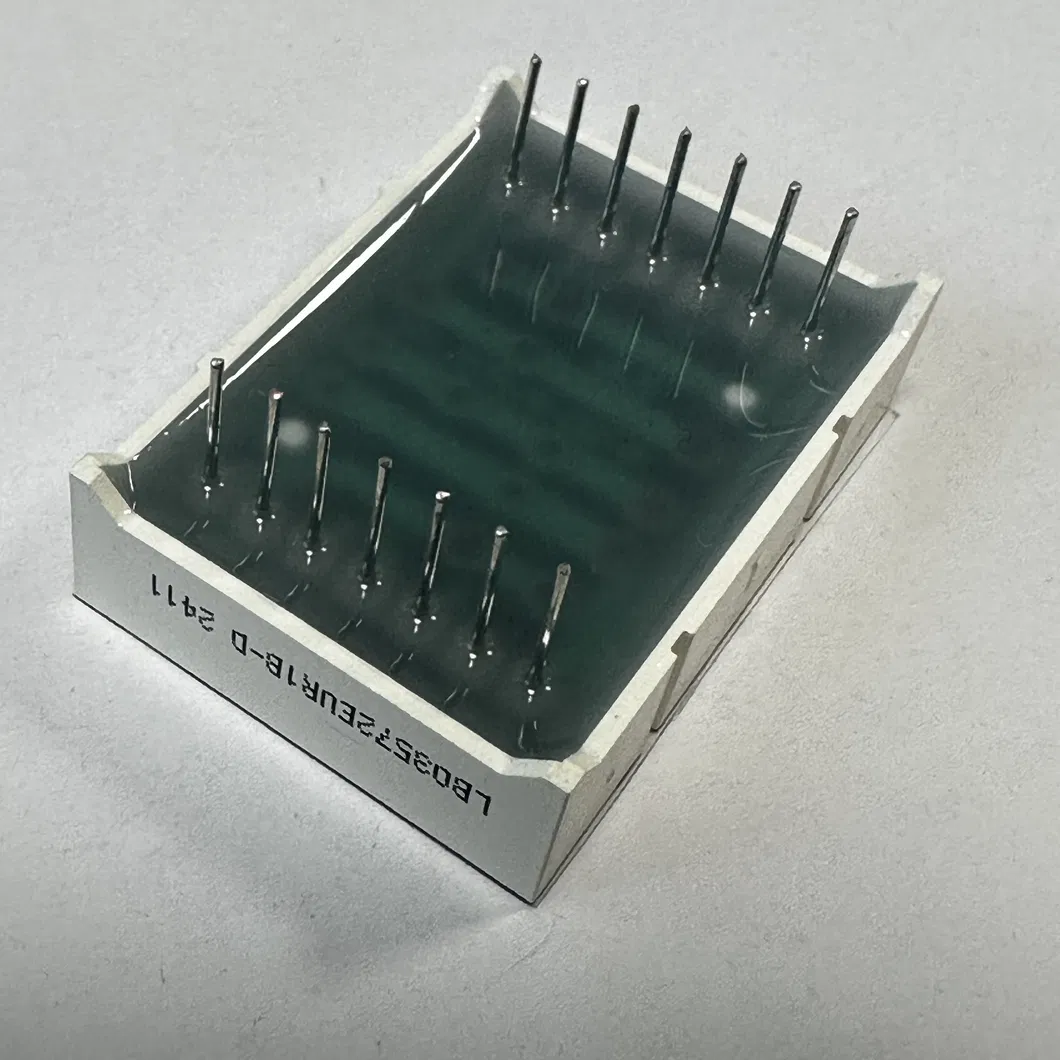

Dot Matrix LED Display Side
Key Features:
✔ High Luminous Intensity: 80-100mcd for superior visibility.
✔ Low Power Efficiency: Operating at just 1.8-2.2V per LED.
✔ Standard Compatibility: Row cathode / column anode configuration.
✔ Robust Build: Stable performance with a long operational lifespan.

Technical Parameters

Absolute Maximum Ratings (Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current (per dice)Ipm20mA
Reverse Voltage (per dice)Vr5V
Power Dissipation (per dice)Pm80mW
Operating TemperatureTopr-40~+85ºC
Solder TemperatureTh260ºC

Optical-Electrical Characteristics (Ultra Bright Red - UR)

Parameter Symbol Condition Typ Max Unit
Forward VoltageVfIf=10mA1.82.2V
Luminous IntensityIvIf=10mA80100mcd
WavelengthDλIf=10mA625635nm

Product Applications

LED Application Scenarios
Our dot matrix displays are versatile solutions for:
  • Lift and elevator floor position indicators
  • Moving message signs and information panels
  • Home appliances (refrigerators, thermostats, air conditioners)
  • Industrial control systems and status monitors

Quality & Facility

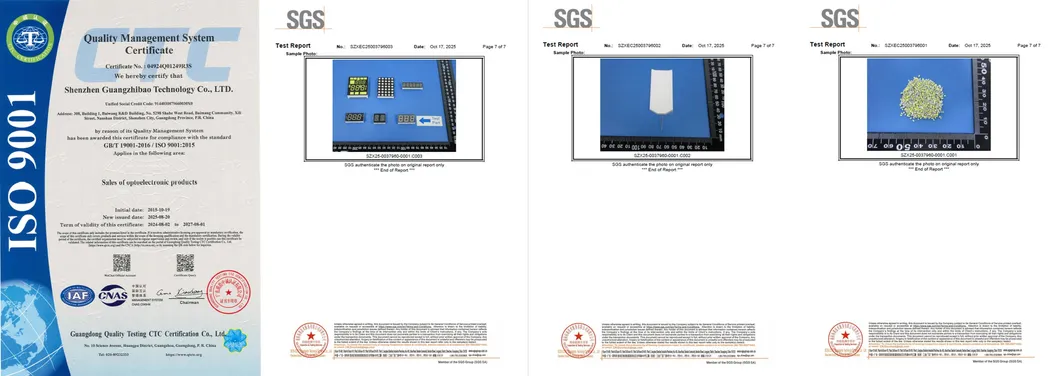

Certification
Office Overview

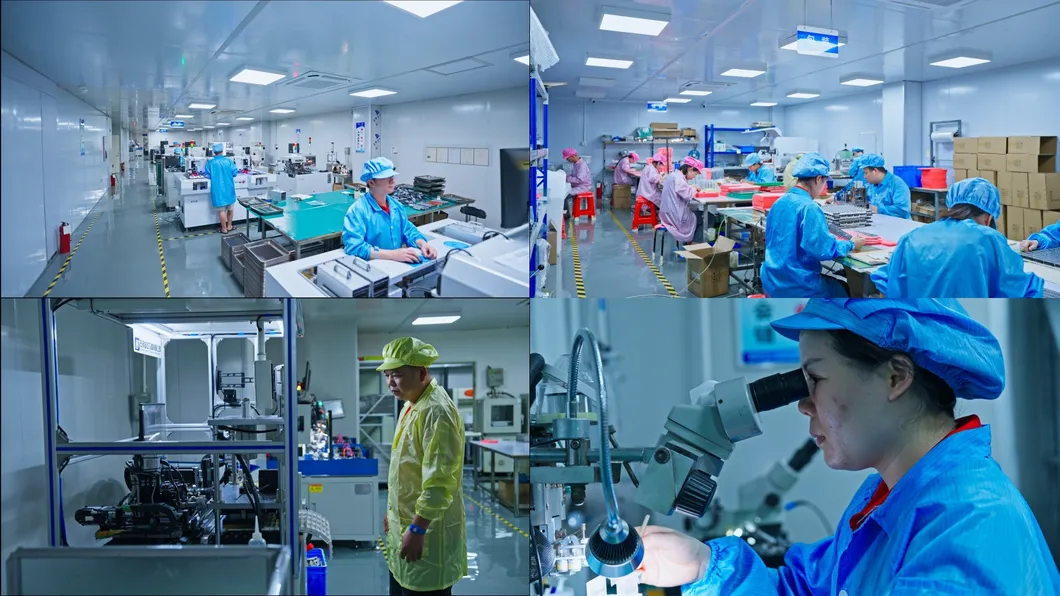

Factory Line

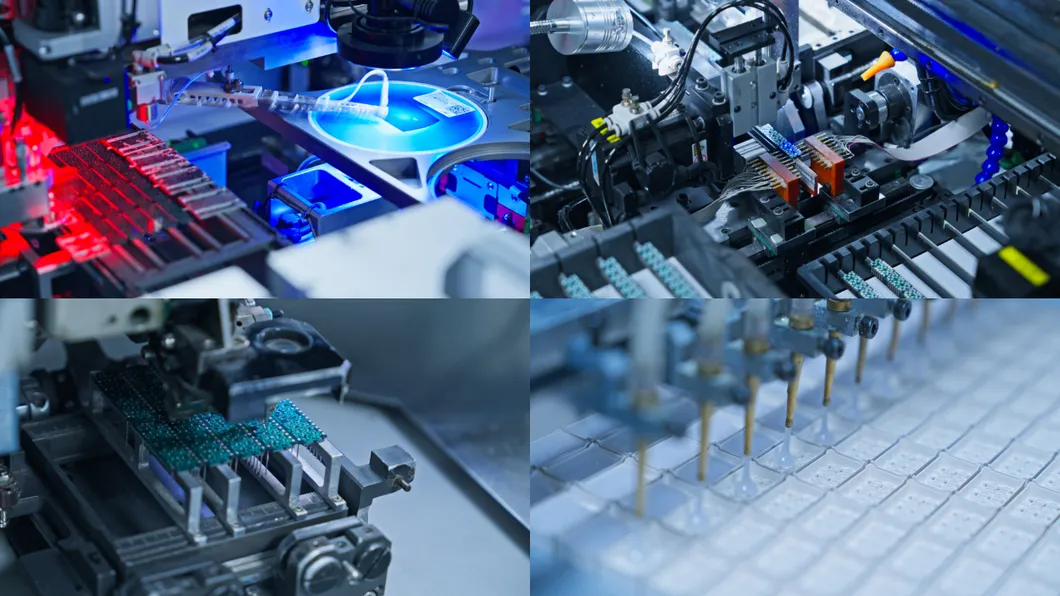

Testing Equipment
Warehouse

Exhibitions & Logistics

Company Exhibition
Event Display
Shipping Service
Packaging

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer with over 20 years of experience specializing in optoelectronic LED displays and customized solutions.
Q2: Can I get free samples for testing before placing a bulk order?
Yes, we can provide 5-10 free standard samples for your evaluation. Please note that shipping costs are covered by the customer.
Q3: What is the typical lead time for an order?
Standard orders usually take 10-20 days depending on the quantity and material availability. Urgent orders can be expedited to 7-10 days if raw materials are in stock.
Q4: Do you offer custom design (OEM/ODM) services?
Absolutely. We can customize sizes, emitting colors, and functional icons to meet your specific application requirements.
Q5: How do you ensure the quality of your LED products?
We are ISO 9001 certified. Every product undergoes 100% testing twice before shipment to ensure stability and performance.
Q6: What are your shipping and payment terms?
We ship via major carriers like DHL, FedEx, and UPS, as well as by air and sea. We accept T/T bank transfers and other common payment methods.
