Product Description

Technical Specifications

Model NO.TBI-1.95

Pixel Pitch1.95mm

Pixel Configuration1R,1G,1B (SMD1515)

Pixel Density262144 DOT/M2

Scanning Mode1/32 Scan

Display TypeLED Video Display

IP RatingIP30

CertificationCE, ETL, FCC

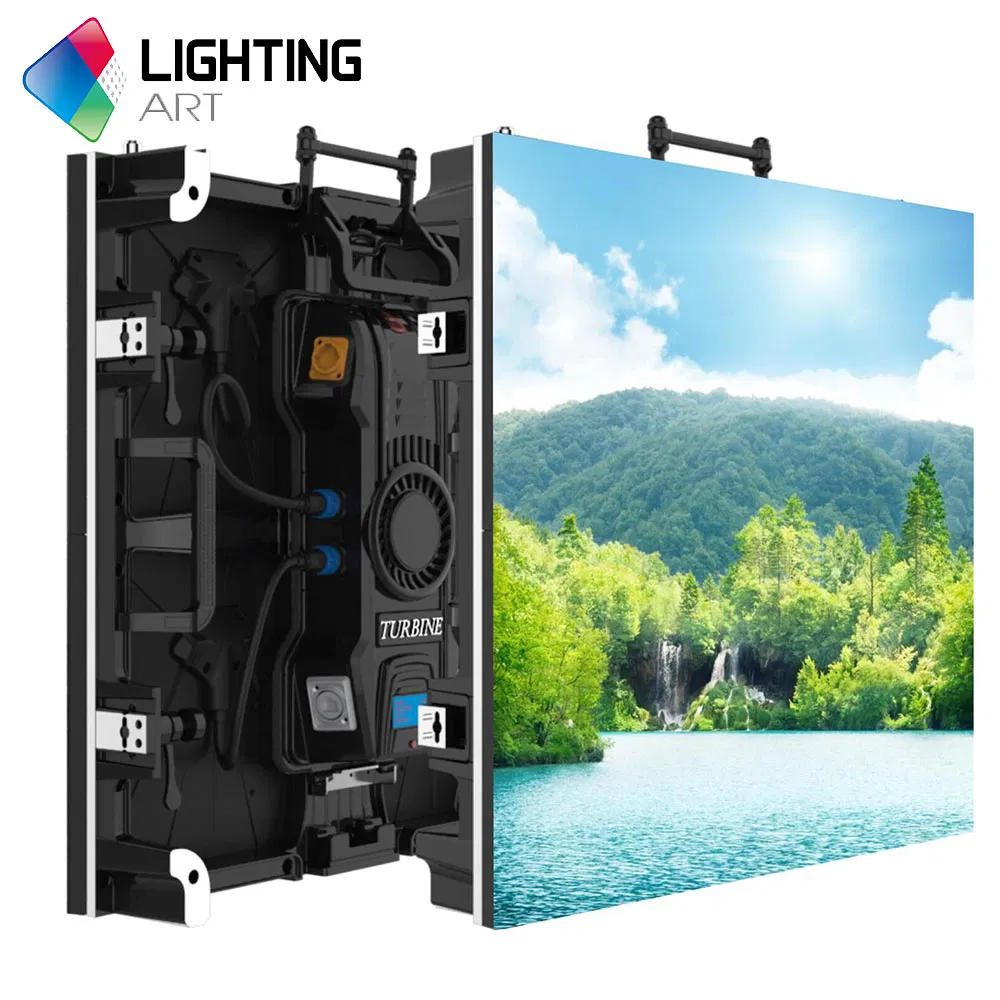

Cabinet MaterialDie Cast Aluminum

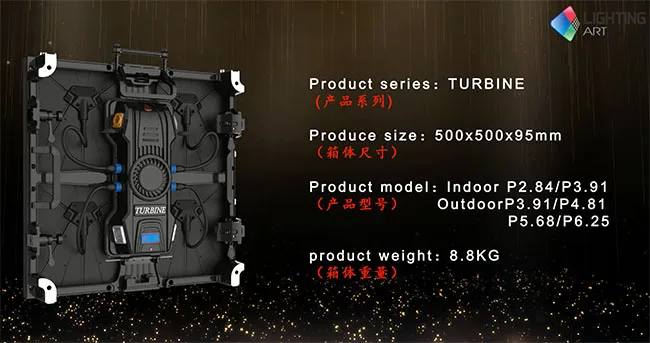

Cabinet Size500mm * 500mm * 91mm

Best Viewing Distance>3.5m

MaintenanceFront Service

Grey Level14bit

Brightness800 NIT

Refresh Rate3840 Hz

OriginChina

Product Overview & Applications

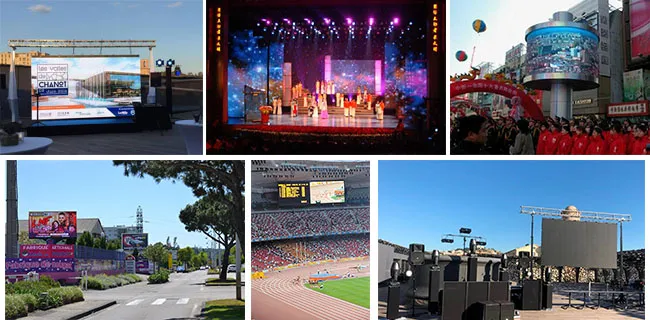

Versatile Applications

This advanced LED screen solution is designed for rapid installation and removal, making it ideal for:

Indoor commercial advertising billboards and stage performances.
Banking and stock exchange display centers.
Theme parks, airports, and public transportation hubs.
Schools, government agencies, and corporate meeting rooms.
Exhibitions, cinemas, hotels, and various public facilities.

Key Features

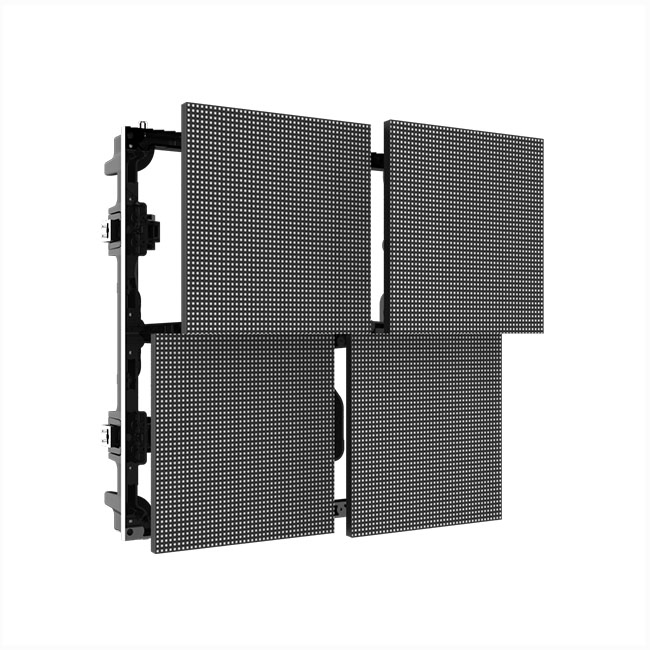

Integrated Modular Design: Highly integrated components for easy and quick replacement.

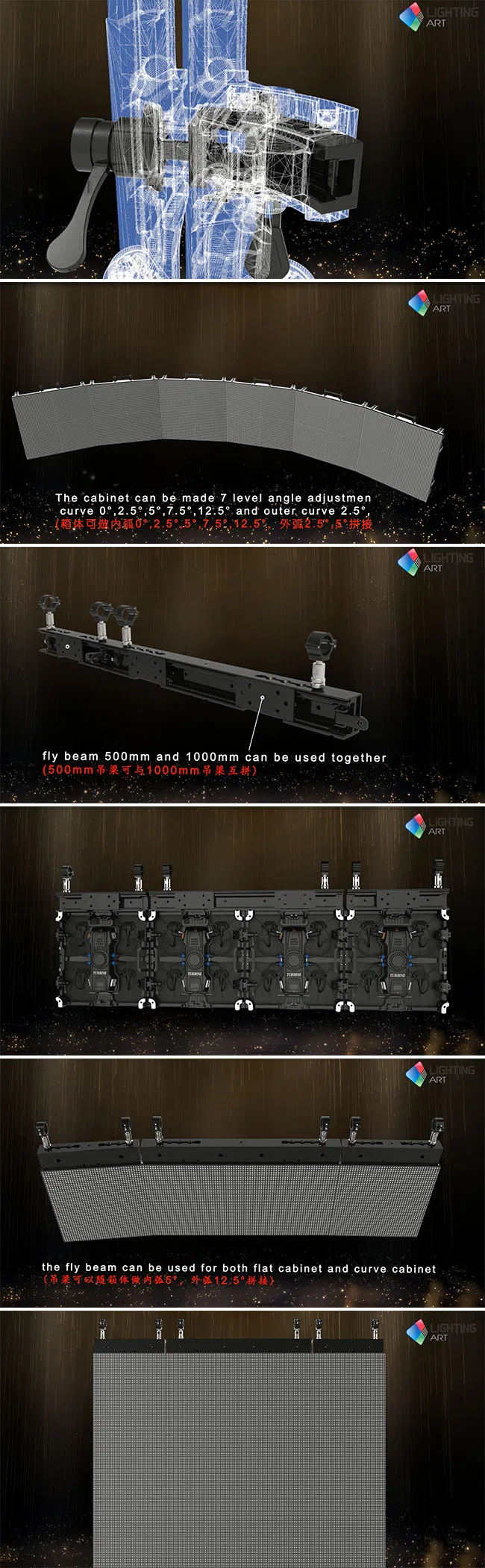

Quick Installation: Features a new lock design for rapid setup; optional curved connection available.

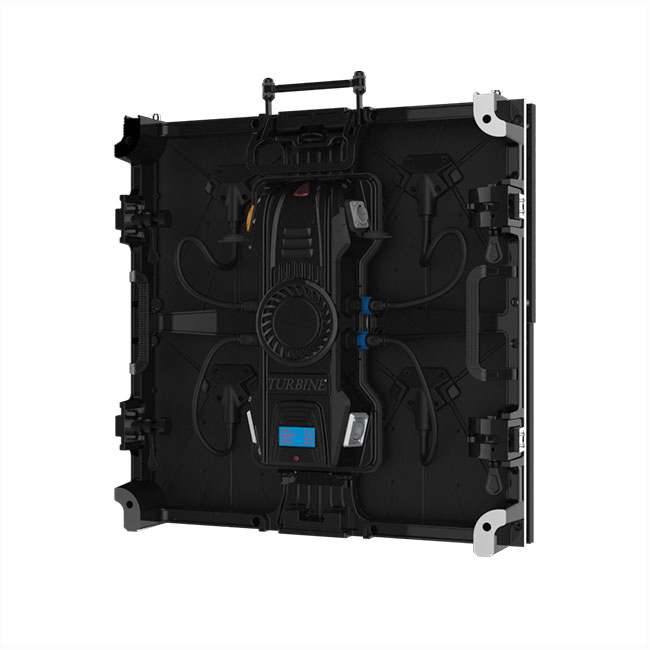

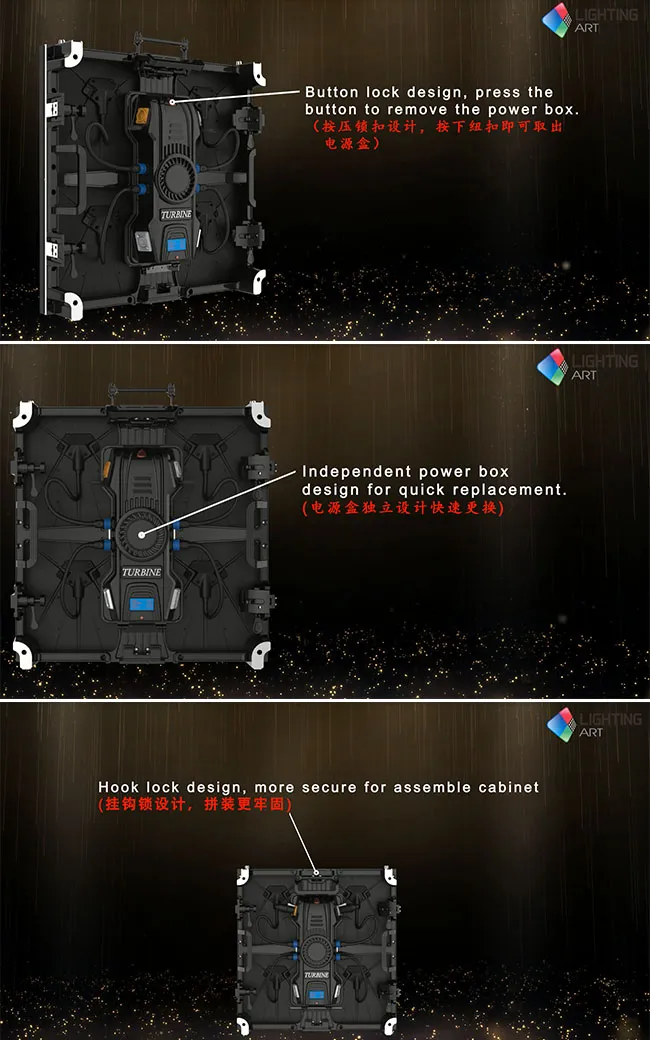

Front Maintenance: Module power supply box is fully front-maintained, significantly reducing service downtime.
Stable Connectivity: Integrated connectors support up to 100,000 insertions/removals for high reliability.
Superior Visuals: High refresh rate and high grayscale levels with anti-ghost PCB design for rich, saturated images.

Detailed Parameter Table

No.	Parameter Item	Specifications
1	Model No.	TBI-1.95
2	Module Size (mm)	250x250x15
3	Module Resolution	128x128 pixels
4	Cabinet Resolution	256x256 pixels
5	LED Encapsulation	SMD2020
6	Driver Mode	1/32 Scan
7	Cabinet Weight	8.8 kg
8	Contrast Ratio	3000:1
9	Viewing Angle (H/V)	±140°/±140°
10	Max Power Consumption	424 W/m²
11	Average Power Consumption	168 W/m²
12	Operating Temperature	-20ºC ~ 50ºC

Production & Delivery

Commercial Terms

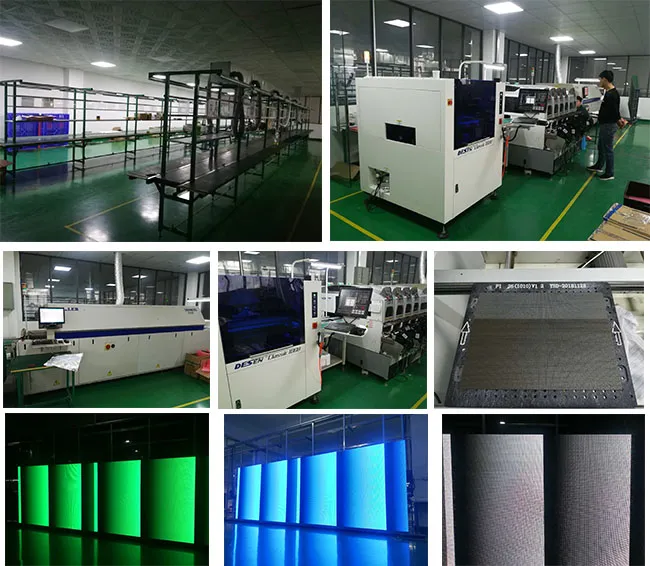

Production Lead Time: Approximately 25 days for orders up to 200 m² (includes mandatory aging test).
Payment Terms: 30% T/T in advance, 70% balance before shipment.
Trade Terms: Available via FOB, CIF, DDU, and DDP.

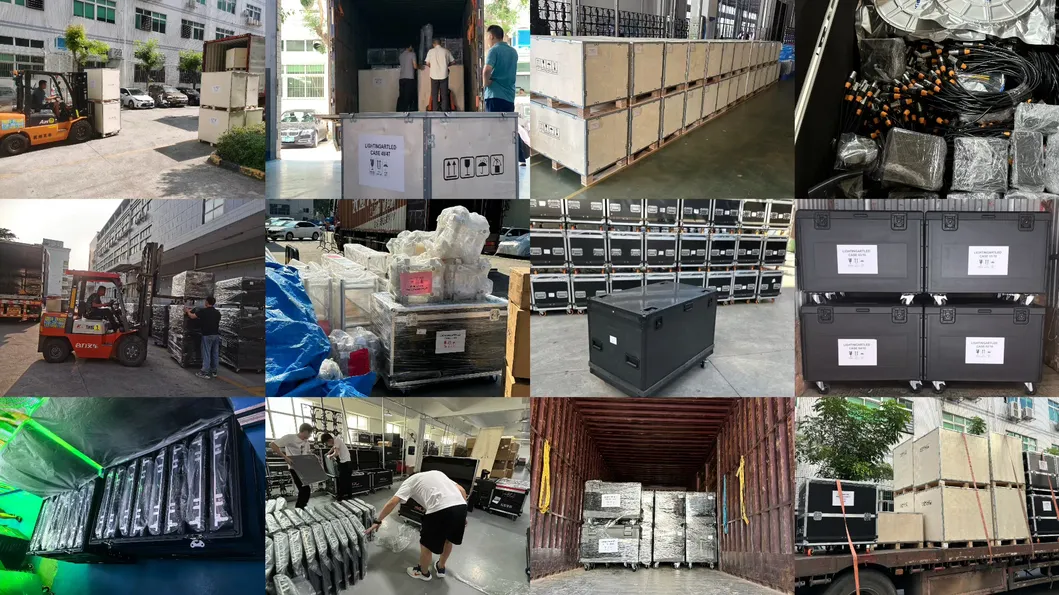

Packaging: Secure transport via Plywood Case or professional Flight Case.
Package Details: Individual cabinet gross weight approx. 7.00kg.

Frequently Asked Questions

Q1: What is the pixel pitch and density of the TBI-1.95 model?

The TBI-1.95 features a fine 1.95mm pixel pitch, resulting in a high physical density of 262,144 dots per square meter for crystal clear imagery.

Q2: Is this LED display suitable for outdoor use?

This specific model has an IP30 rating, which is designed for indoor applications such as stages, conference rooms, and retail environments.

Q3: How is maintenance performed on the screen?

The system supports full front service. The module and power supply box can be easily accessed and maintained from the front, saving significant time and space.

Q4: What is the refresh rate, and does it support high-quality video?

Yes, it features a 3840Hz high refresh rate and 14-bit grayscale, ensuring smooth video playback without flickering, even when captured by professional cameras.

Q5: What are the cabinet material and weight specifications?

The cabinet is made of Die Cast Aluminum for precision and durability. Each 500x500mm cabinet weighs approximately 8.8kg, making it lightweight for rental use.

Q6: What is the typical lead time for an order?

For standard orders between 0-200 m², the production time is about 25 days, which includes rigorous aging tests to ensure quality.
