Zever Light
1 / 5
| Model NO. | SP-P6 | Pixel Pitch | 6mm |
| Pixel Configuration | 1R, 1G, 1B | Display Function | Video, Image, Text |
| Avg. Power Consumption | 300W/M2 | Pixel Density | 27777DOT/M2 |
| Scanning Mode | 1/8 Scan | Display Type | LED Video Display |
| Application | Perimeter Stadium/Sports Rental | Certification | CE, RoHS, CCC, ETL |
| Cabinet Material | Aluminum | Refresh Rate | >1920Hz |
| Brightness | 2000nits | Cabinet Weight | 37kg |
| Cabinet Size | 960x960mm | Contrast Rate | 3000:1 |
| Viewing Angle | H: 140°, V: 140° | Life Span | 100,000 Hours |

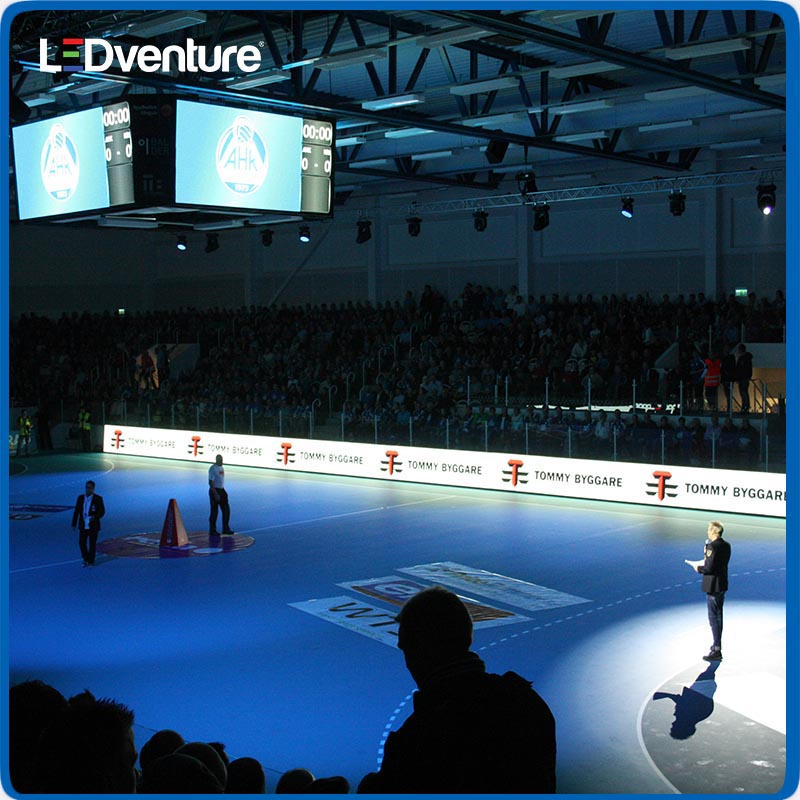

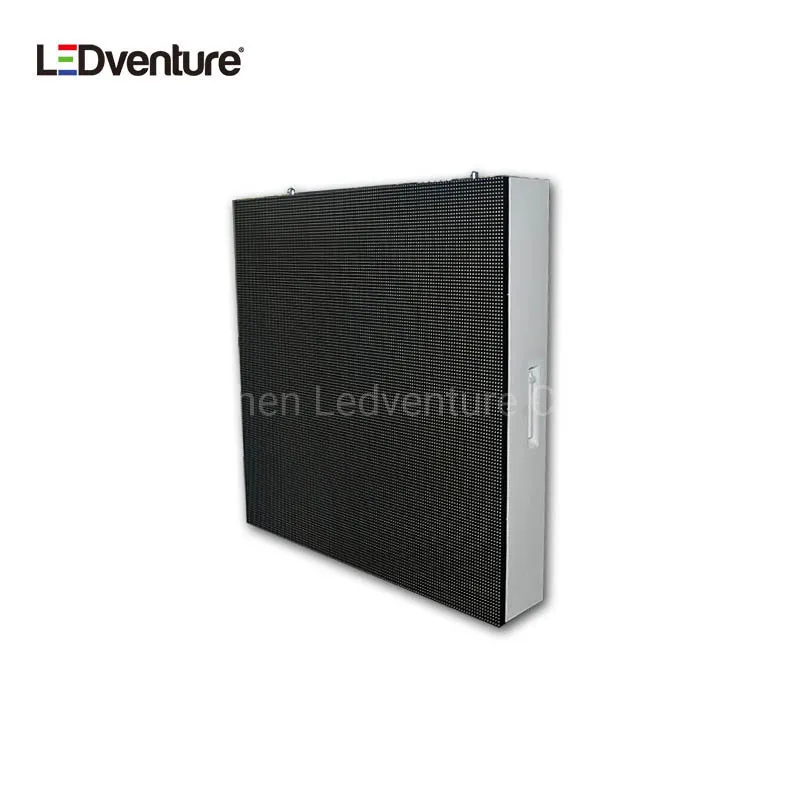

P6 Indoor High Quality LED Video Wall Stadium Scoreboard
Focusing on indoor/outdoor LED displays, rental series, flexible and transparent solutions, and specialized stadium sport display boards.

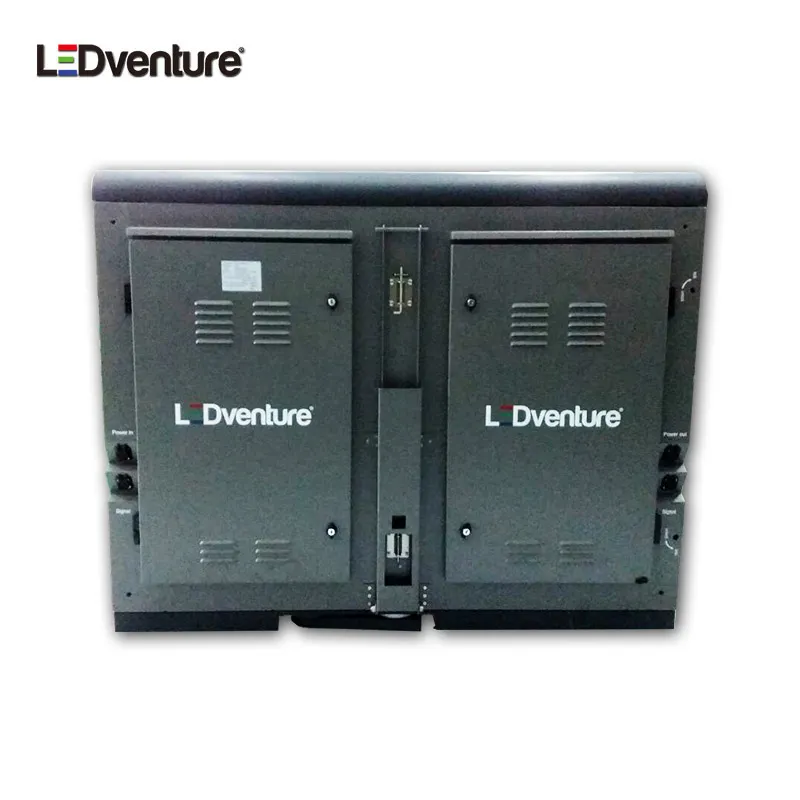

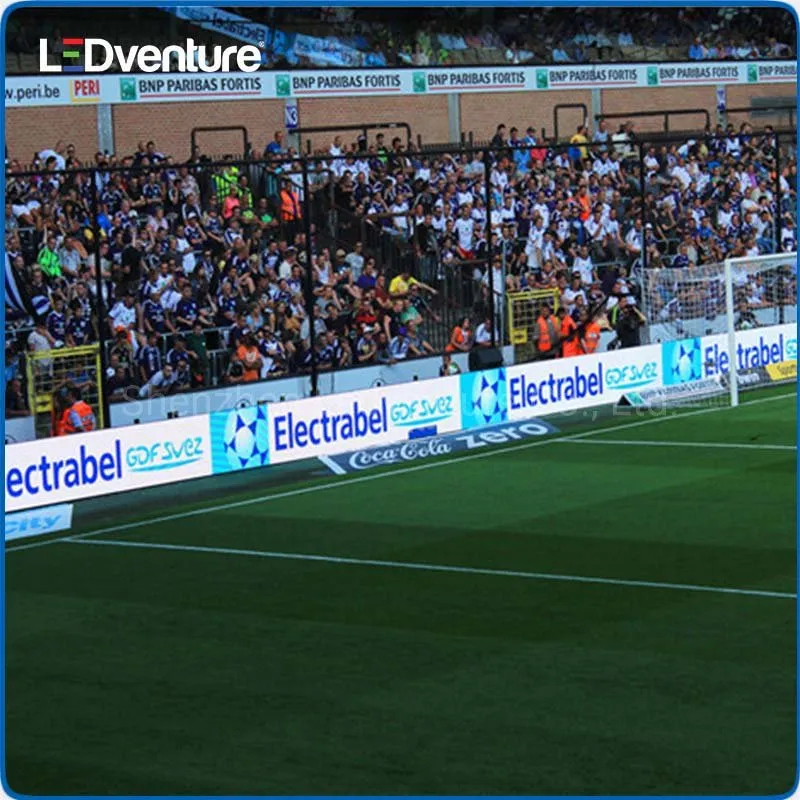

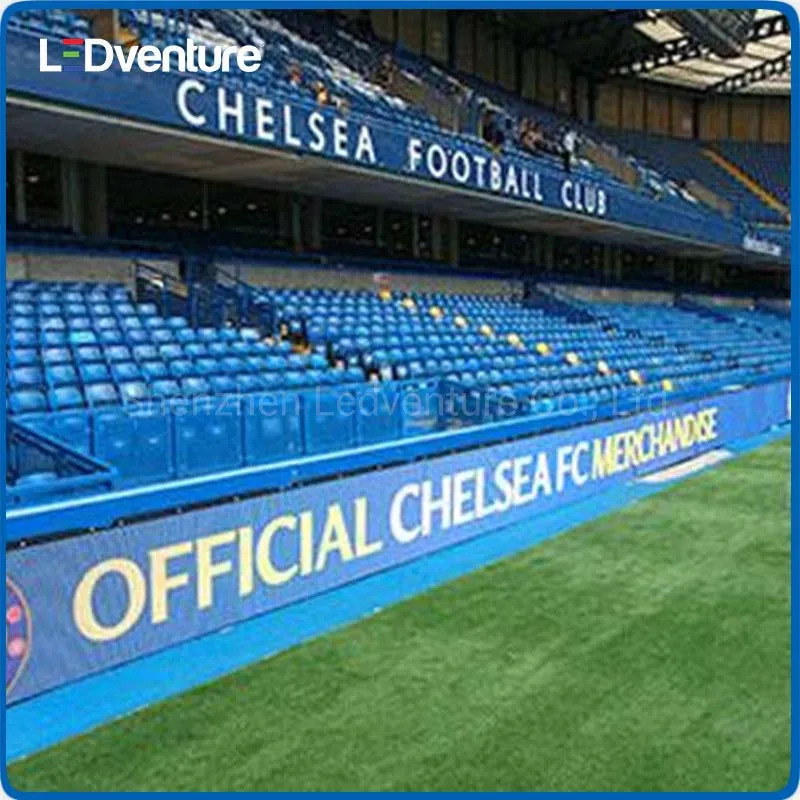

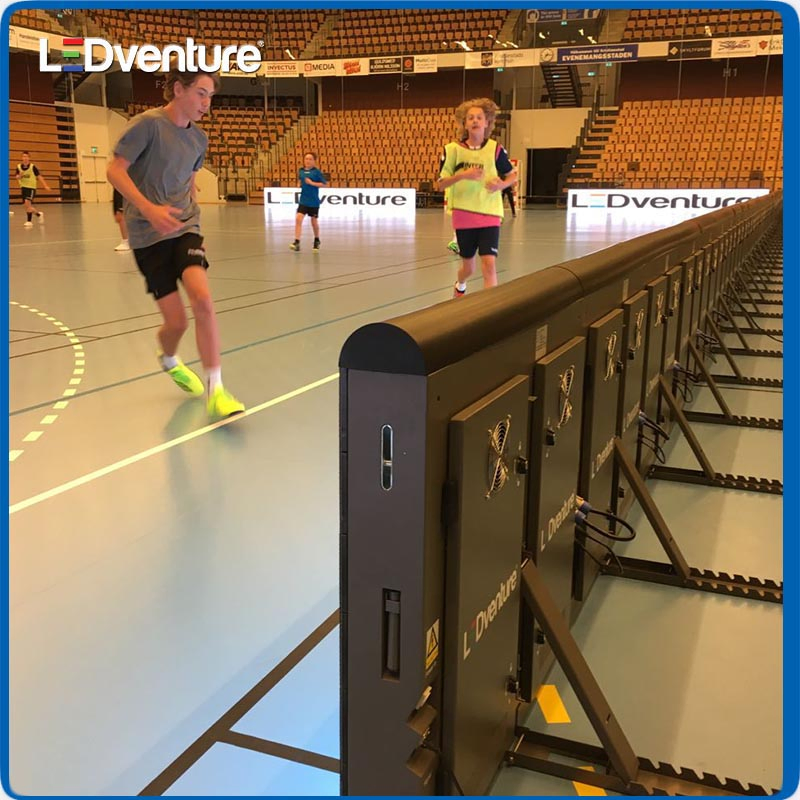

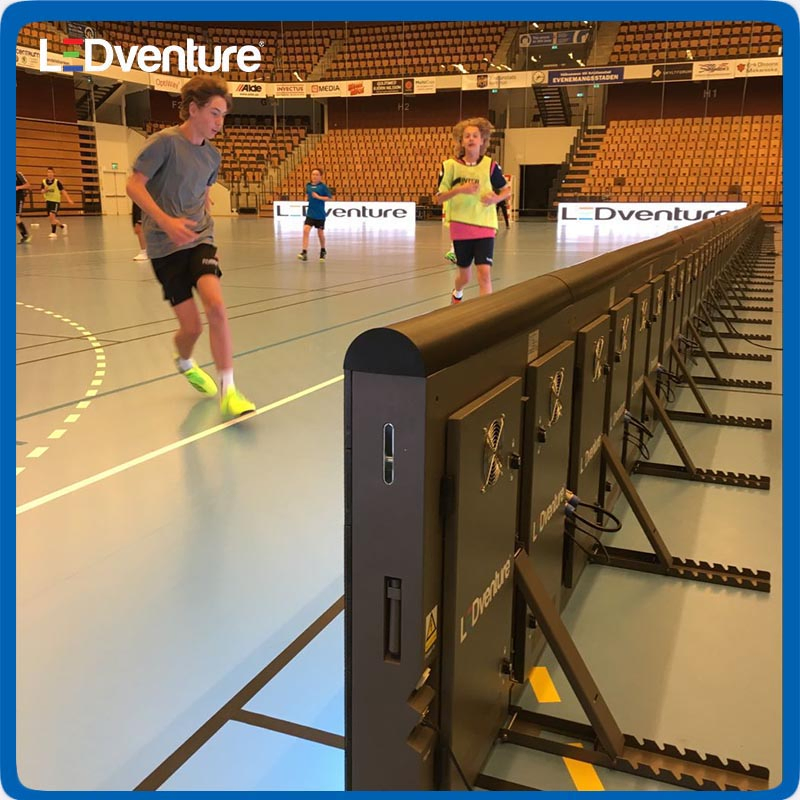

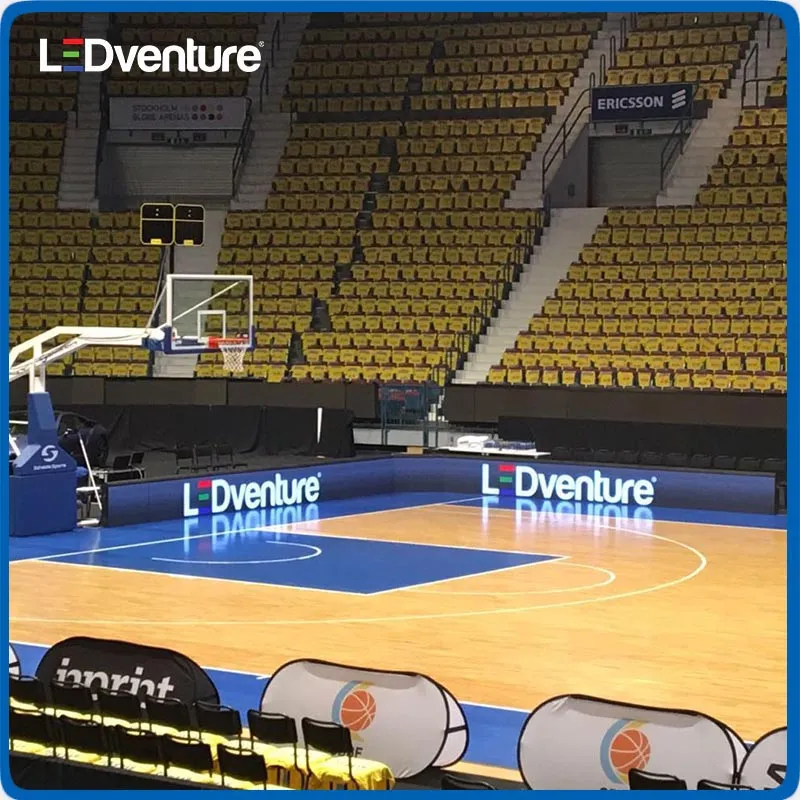

The SP series Sport stadium perimeter LED screen is engineered with strict cabinet design requirements, featuring a soft mask for LED protection and specialized safety components. It includes standing legs and viewing adjustable parts, supporting both vertical and angle-standing positions for optimal audience visibility.

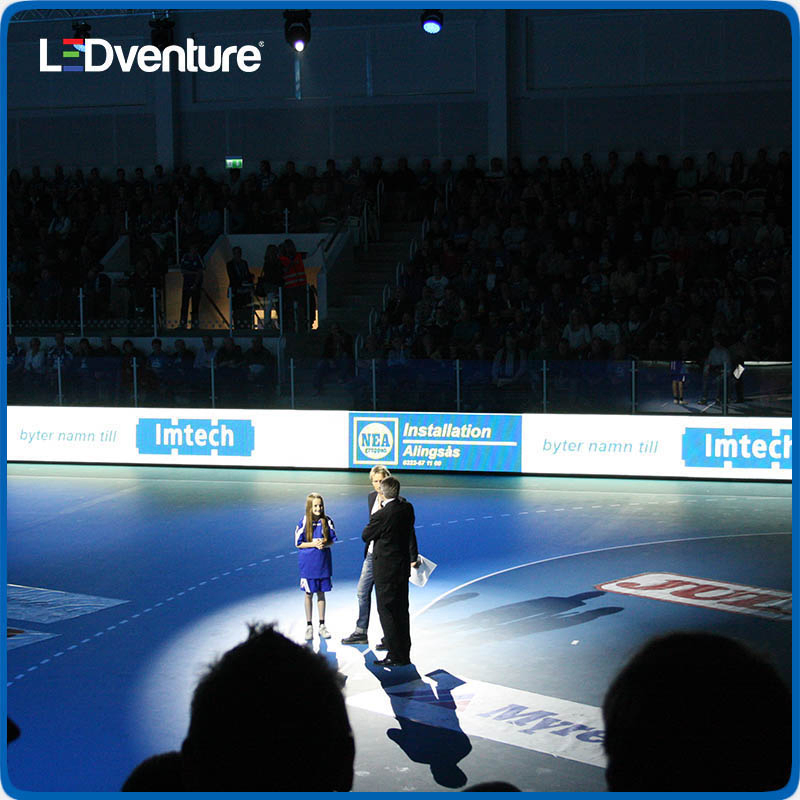

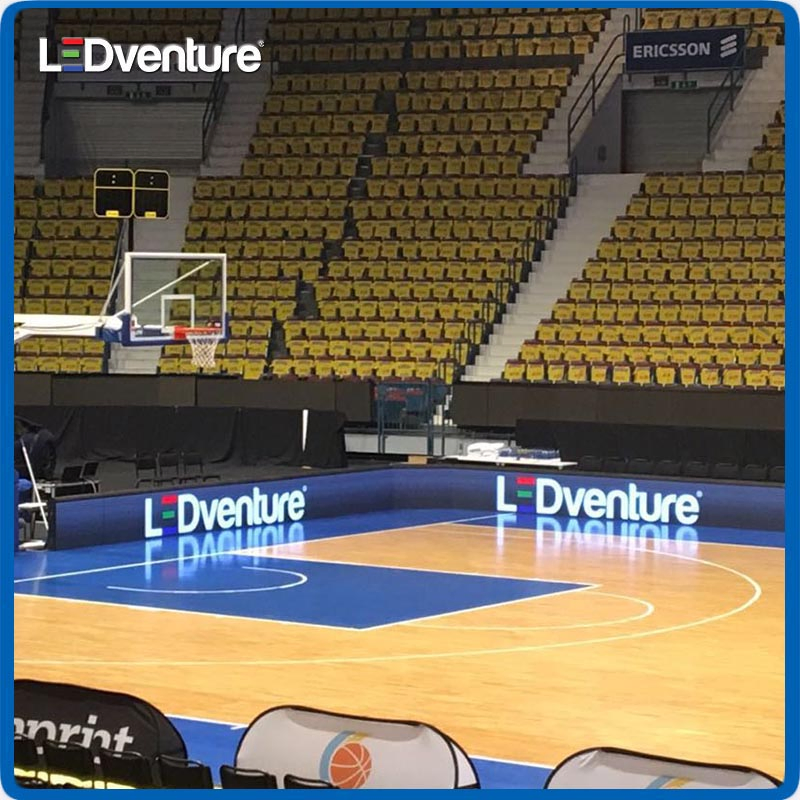

Specifically designed for brand marketing during global sport events. Highly effective for simple, high-impact company logos and advertising content.

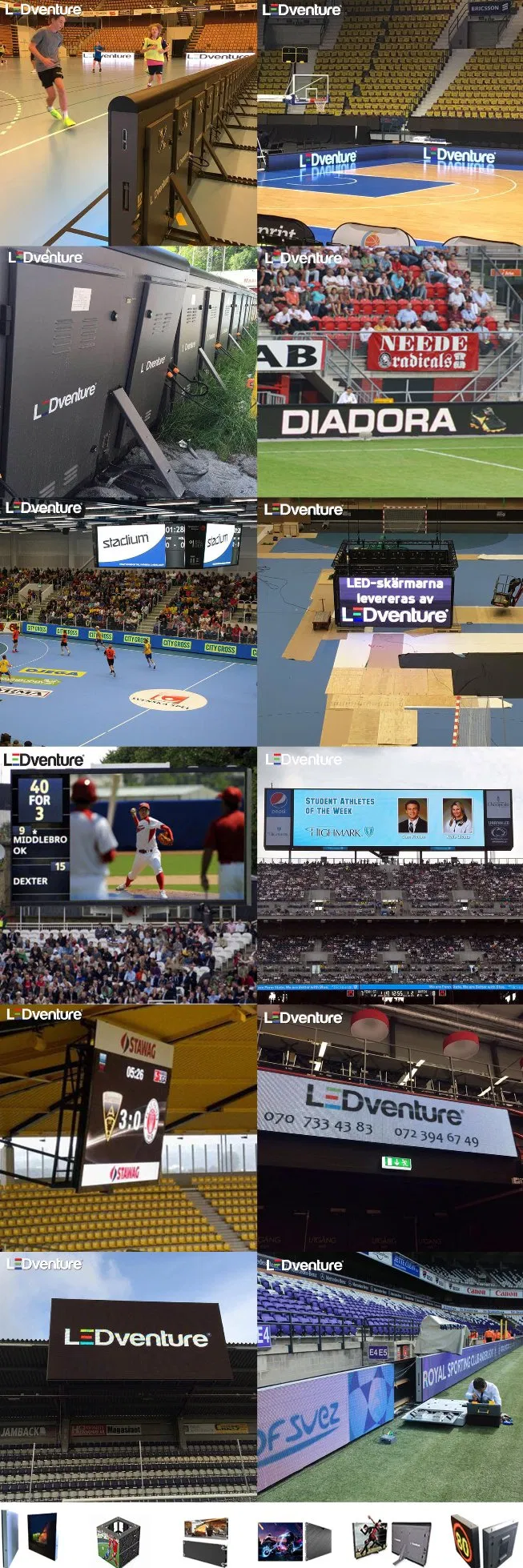

Available Configurations: Indoor/Outdoor standing, wall-mounted, and hanging types.
| PARAMETERS | DESCRIPTION |
|---|---|
| Product Model | SP-P6 |
| Pixel Pitch | 6mm |
| LED Encapsulation | SMD |
| Pixel Configuration | 1R1G1B |
| Viewing Angle | H: 140°; V: 140° |
| Cabinet Size | W960mm x H960mm |
| Cabinet Material | Aluminum |
| Ingress Protection | IP31 |
| Brightness | 2000 Nits |
| Driving Method | 1/8 Scan |
| Refresh Rate | >1920Hz |
| Max Power Consumption | 600 W/M2 |
| Average Power Consumption | 300 W/M2 |
| Contrast Ratio | 3000:1 |
| Operating Temp/Humidity | -20ºC - +50ºC / 10-90%RH |
| Certifications | CCC, CE, FCC, ETL, EMC |
All products have passed CE, EMC, FCC, UL and security tests to ensure compliance with global market laws and top-level stability for long-term use.
Standard packaging options include Plywood Case or Flight Case based on customer requirements. Mass orders are shipped by sea (container), while sample or urgent orders are shipped via airline or express.
