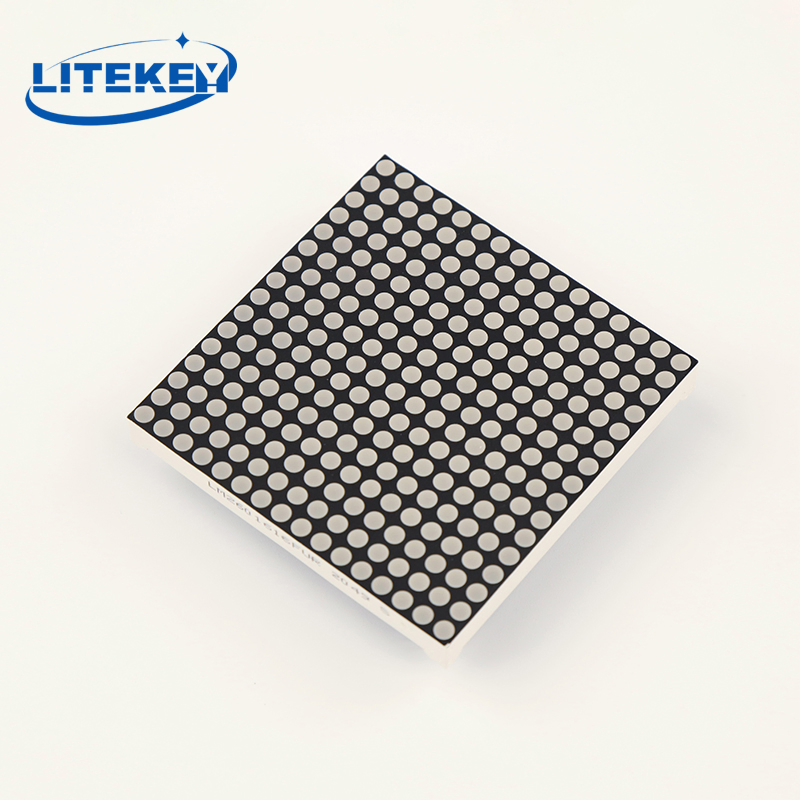

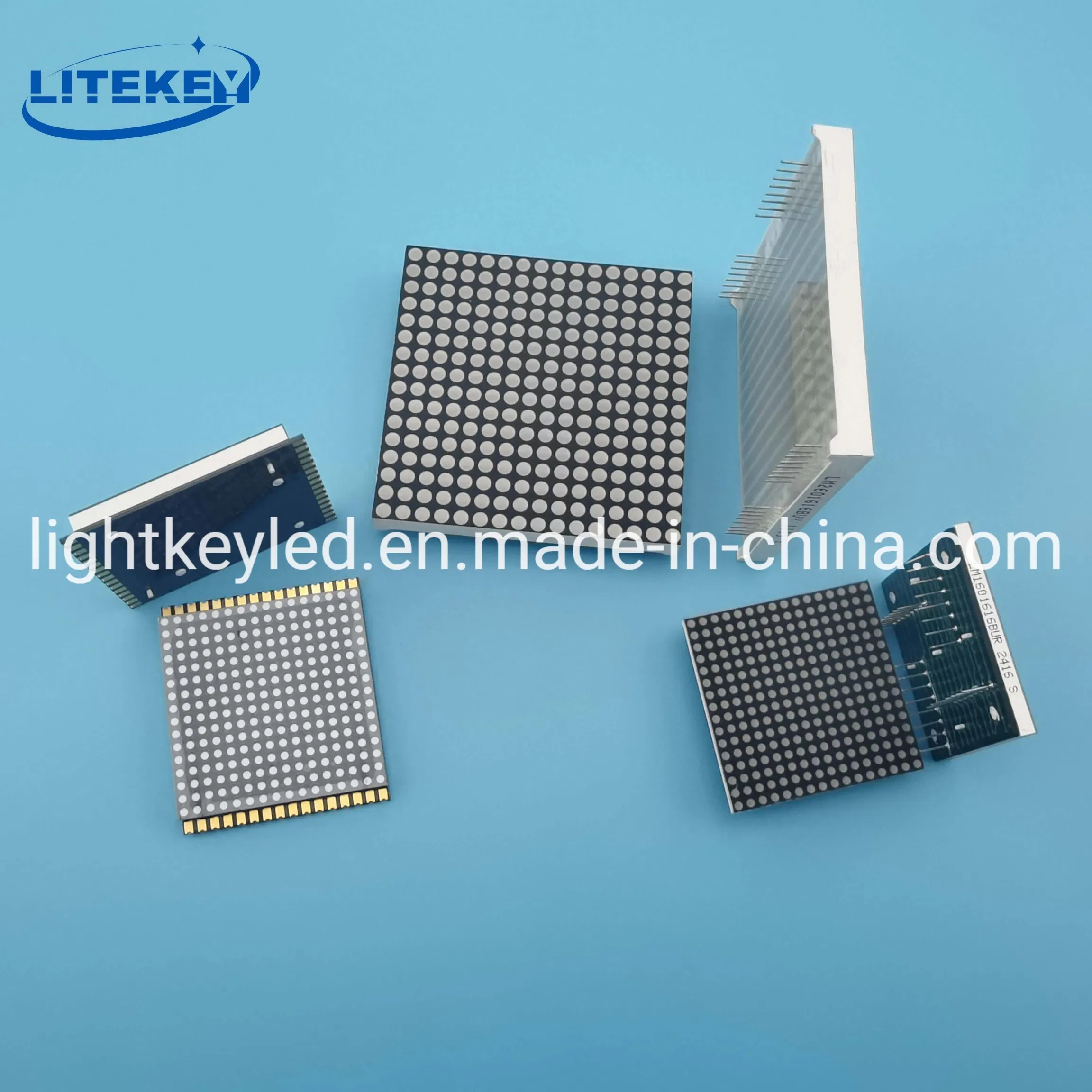

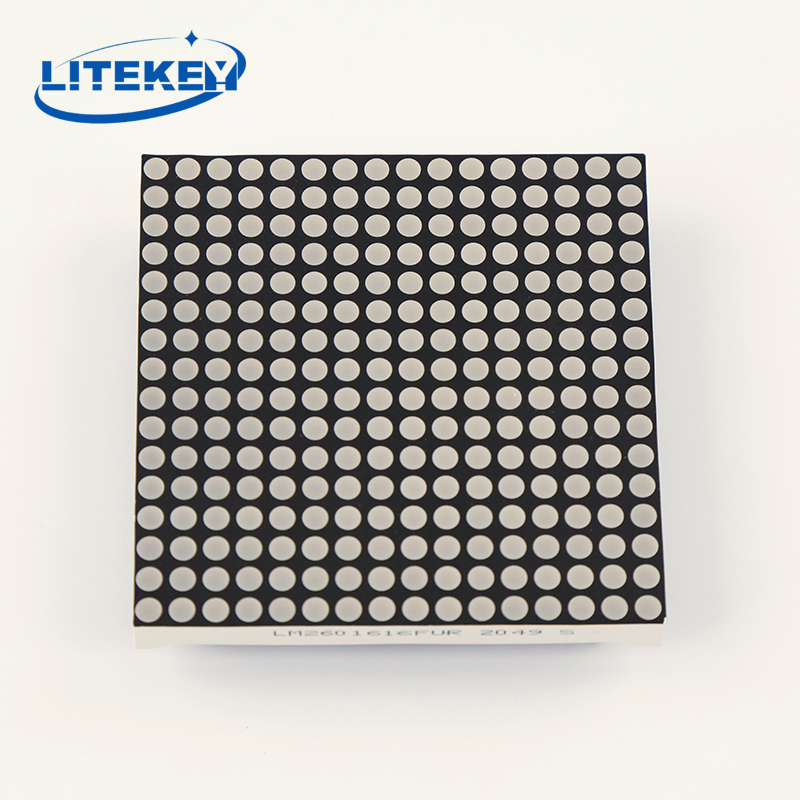

Personlised 7X16 16X16 LED DOT Matrix Display with RoHS Compliant From Expert Manufacturer

1 / 5

Personlised 7X16 16X16 LED DOT Matrix Display with RoHS Compliant From Expert Manufacturer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.LM**0716/1616

Emitting ColorHomochromy

Power20W

Pixel Pitch2.5mm

LED ChipsOptional

WaterproofNot Waterproof

Life80000h

CertificationRoHS, Reach

Transport PackageBlister Packing

Specification7x16 / 16x16

HS Code8531200000

Capacity1000000PCS/Year

Premium Quality

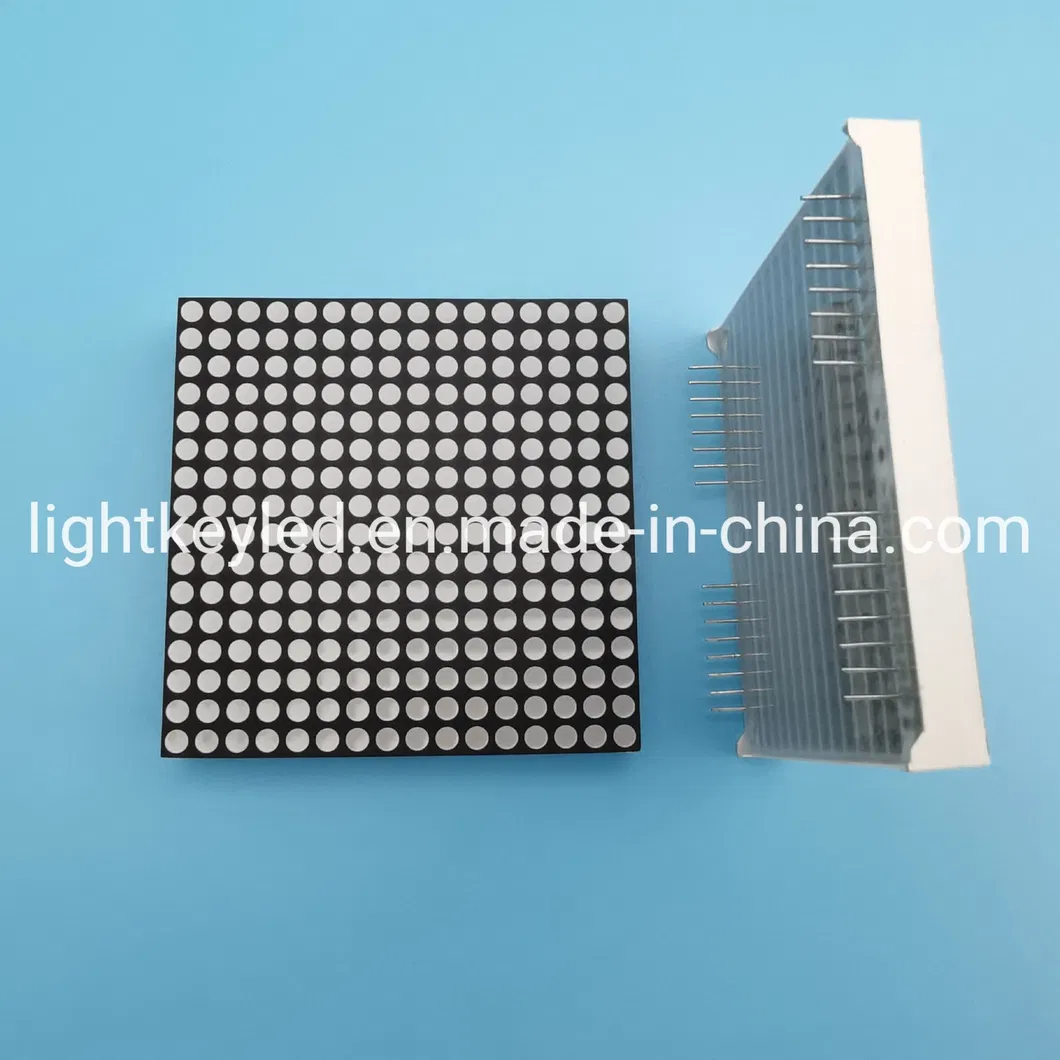

Personlised 7x16 / 16x16 LED Dot Matrix Display with RoHS Compliant

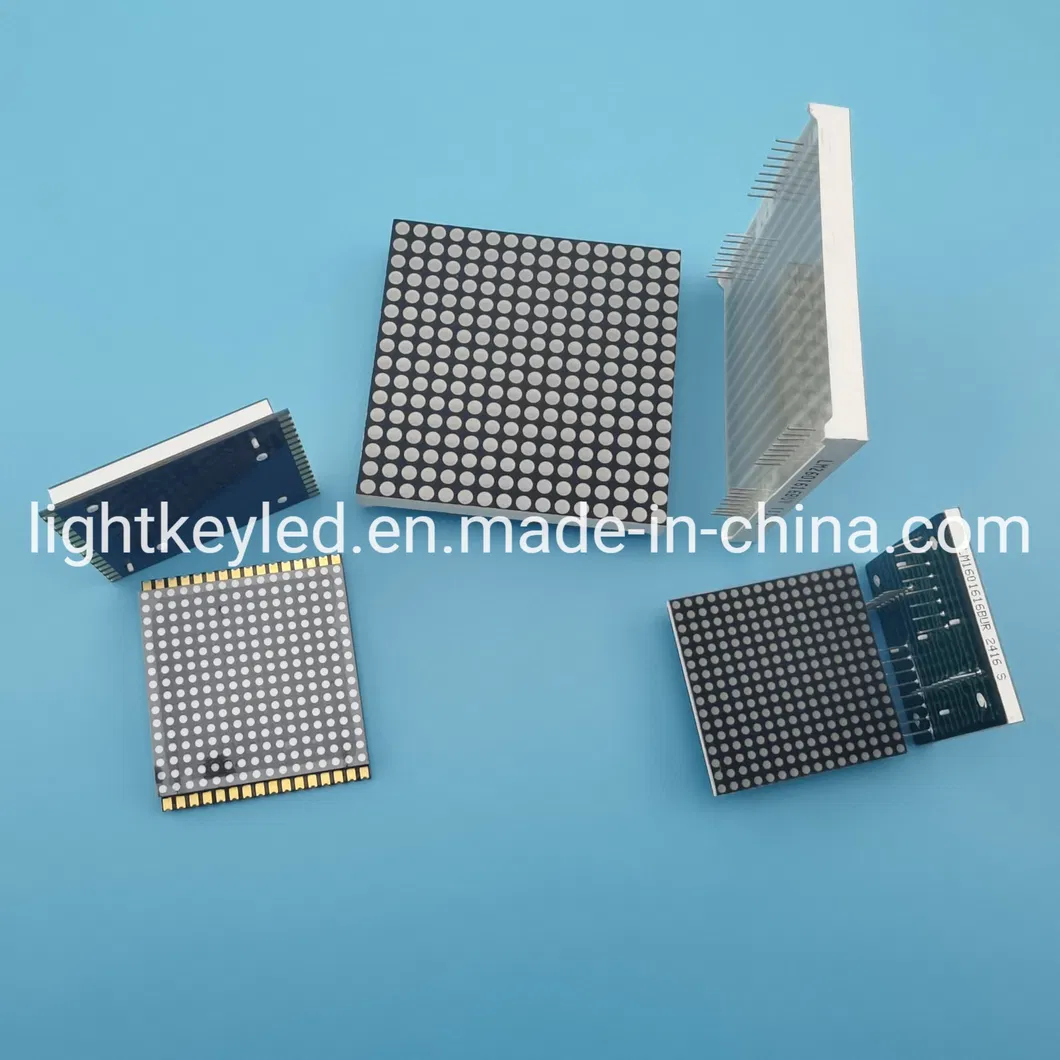

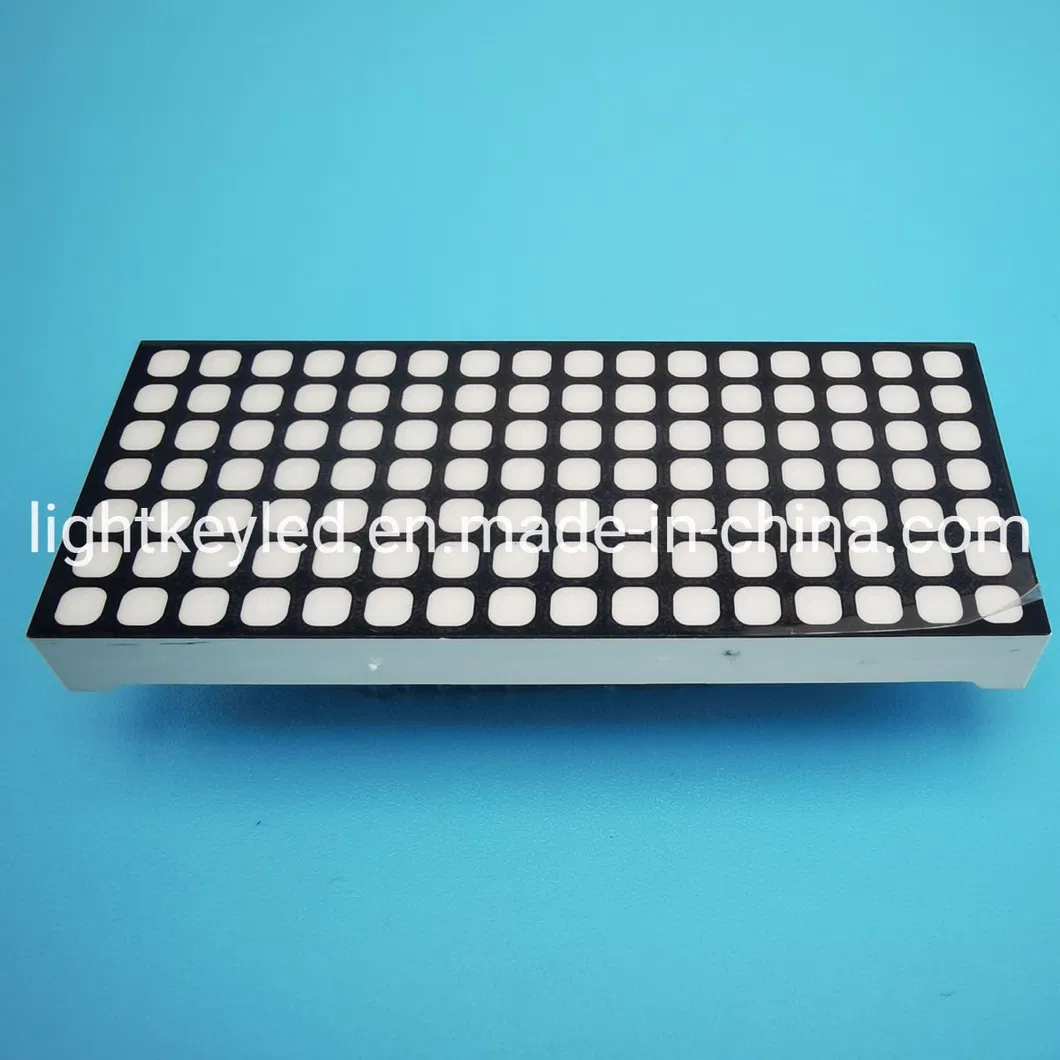

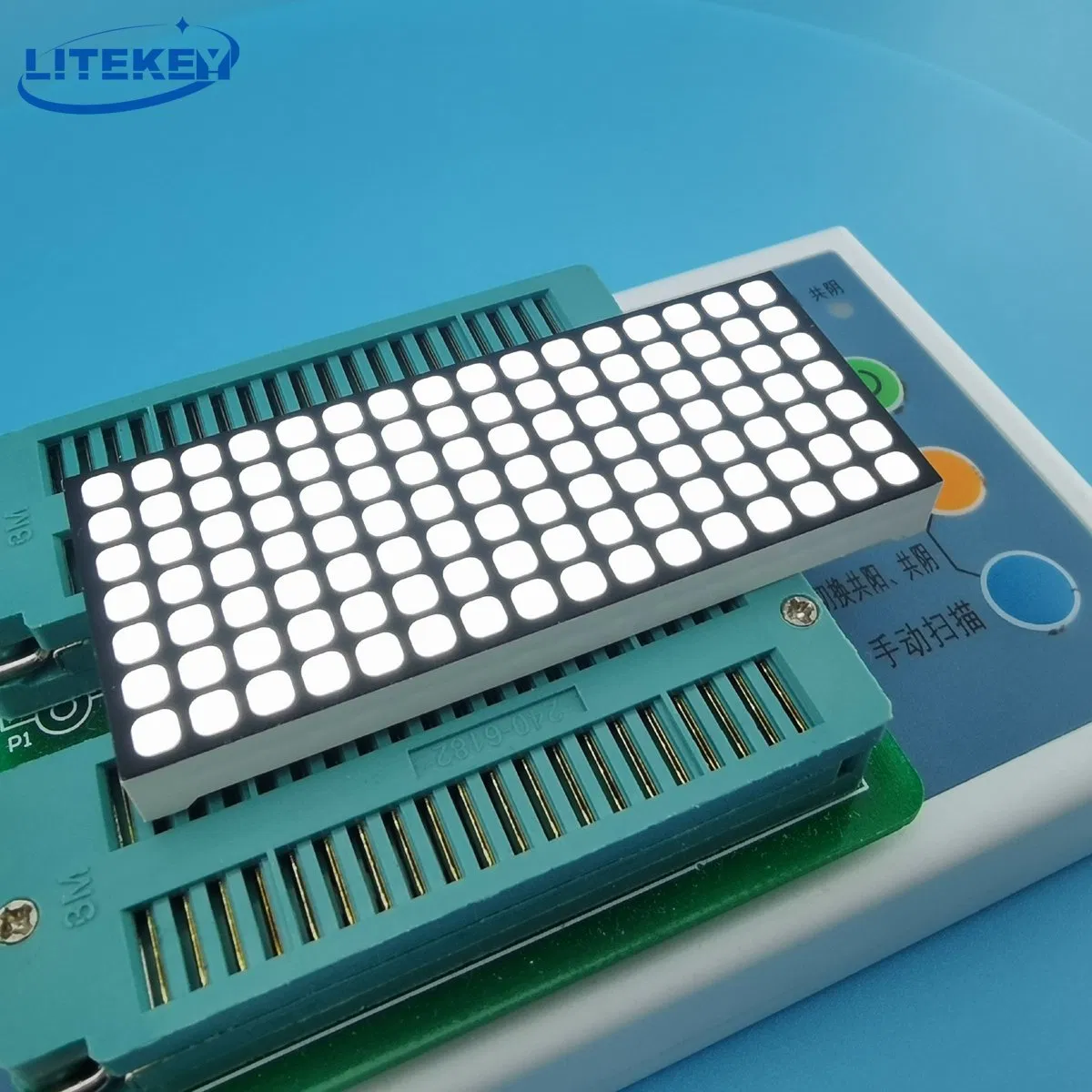

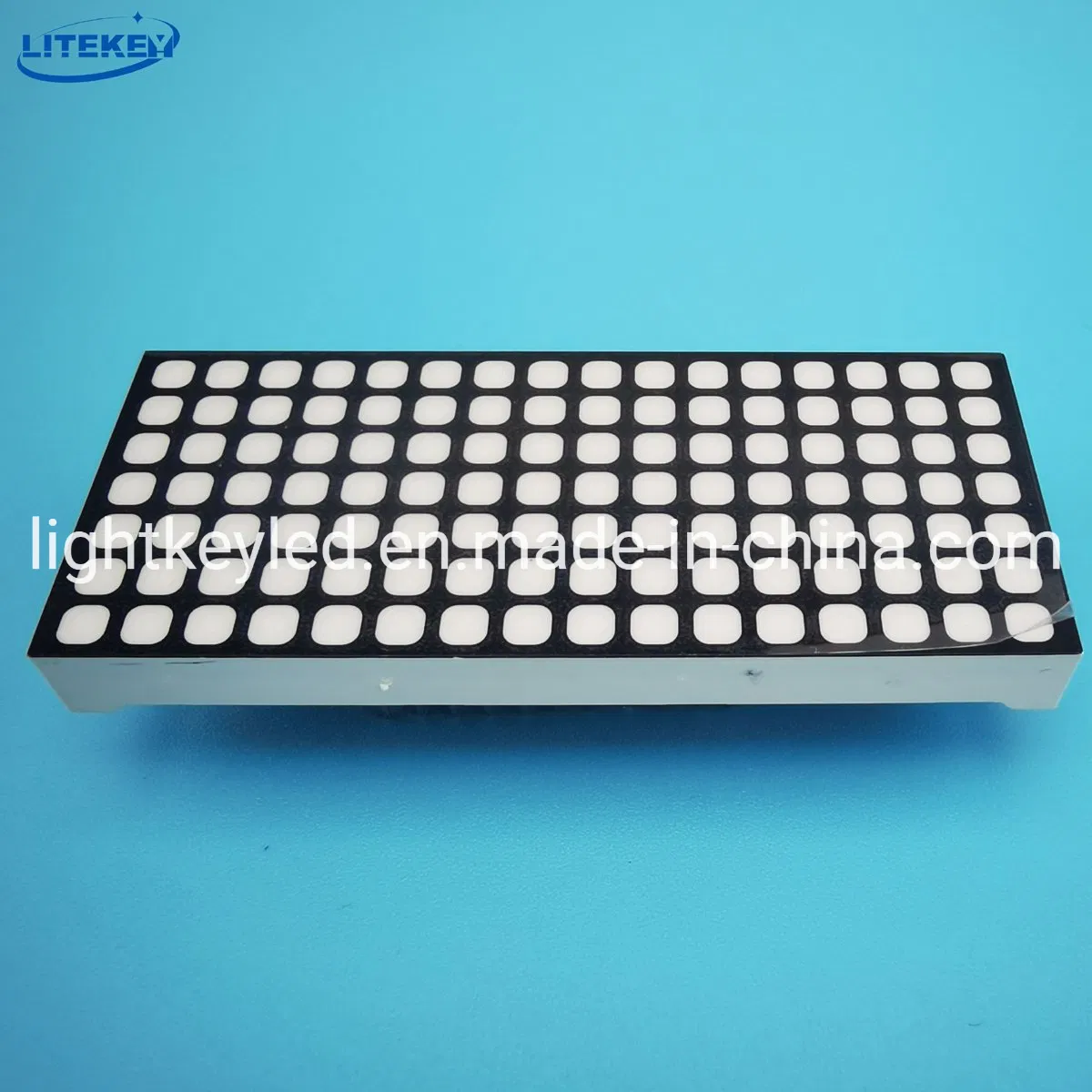

Detailed Photos

Product Description

Key Features

Wide viewing angle
Range of emitted colors
I.C. compatible
Low power consumption
White dot, grey or black face
RoHS compliant

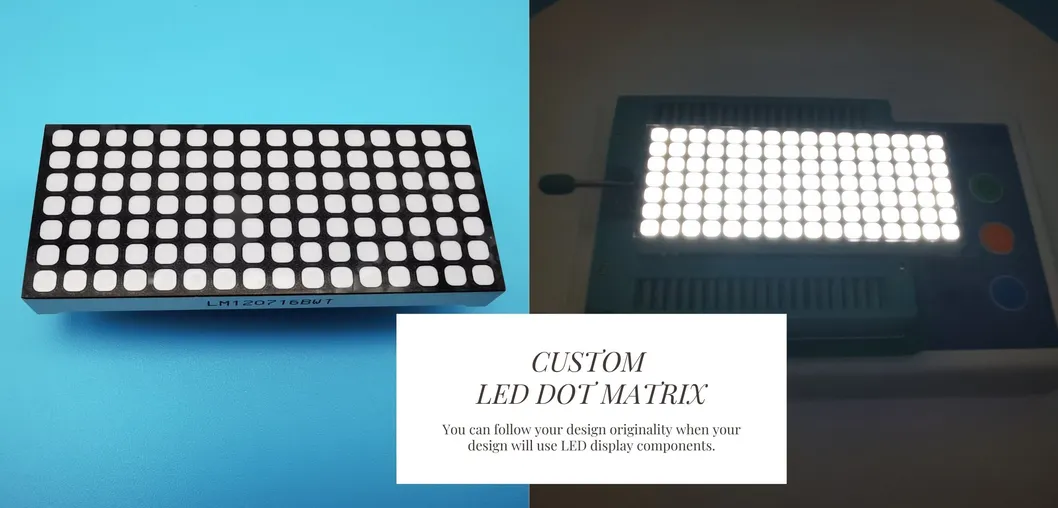

Custom Options

1. Dot quantity

2. Alternative Matrix height

3. Alternative Pitch distance

4. Alternative Dot size and shape

5. Alternative emitting luminosity

6. Standard or high brightness

7. Alternative emitted color

8. Alternative dot color

9. Alternative face color

10. CA or CC versions available

11. Cropped terminal pins

Electrical Characteristics

Color	Per Chip	VF@ IF=20mA		Reverse Current	Power Dissipation	DC Forward Current	Peak Forward Current
Color	Per Chip	Typ. (V)	Max. (V)	VR=5V (uA)	(mW)	(mA)	(mA)
Hi-red	Per Chip	2.0	2.6	30	80	20	100
Ultra Red	Per Chip	2.0	2.6	30	80	20	100
Ultra Orange	Per Chip	2.1	2.5	30	65	20	100
Ultra Amber	Per Chip	2.1	2.5	30	65	20	100
Ultra Yellow	Per Chip	2.1	2.5	30	65	20	100
Ultra Green	Per Chip	2.1	2.5	30	65	20	100
Pure Green	Per Chip	3.0	3.6	30	90	20	100
Ultra Blue	Per Chip	3.0	3.6	30	120	20	100
Ultra White	Per Chip	3.0	3.6	30	120	20	100

Notes: 1. At Ta = 25 °C. 2. Forward voltage at 20mA. 3. Peak current at 1/10 Duty Cycle, 0.1ms Pulse.

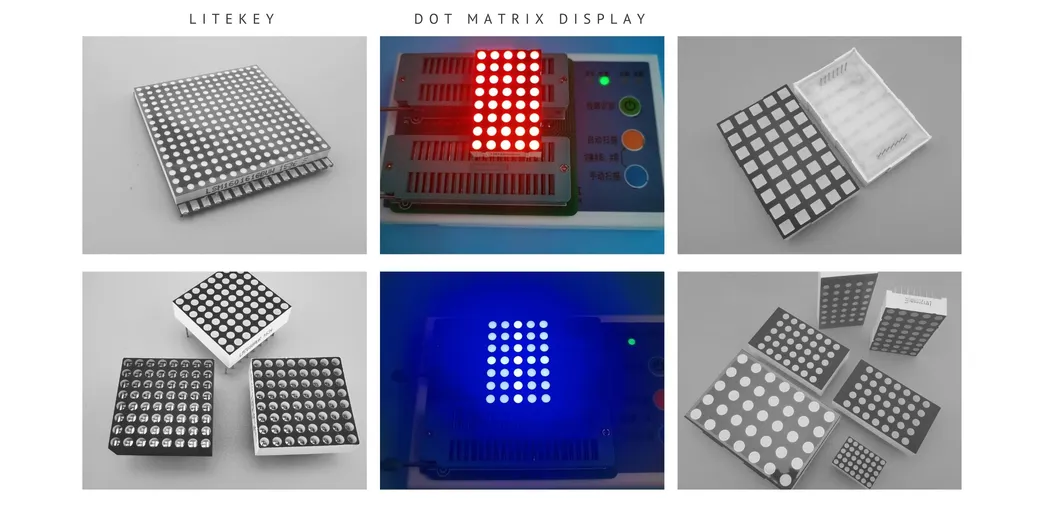

LED Dot Matrix Series

Common types: 4X4, 5X7, 5X8, 8X8, and 16X16
Common sizes: 0.7", 1", 1.2", 1.5", 2", 3", and 4"
Through-hole or SMD Type available
Round dot or Square dot available

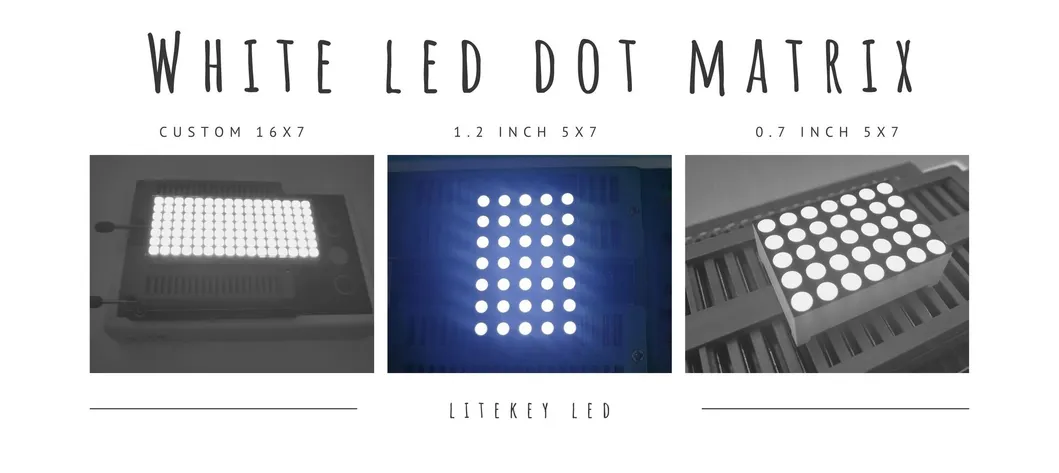

Our White color LED dot matrix is high-quality made with Good brightness Uniformity compared to common white color products in the market.

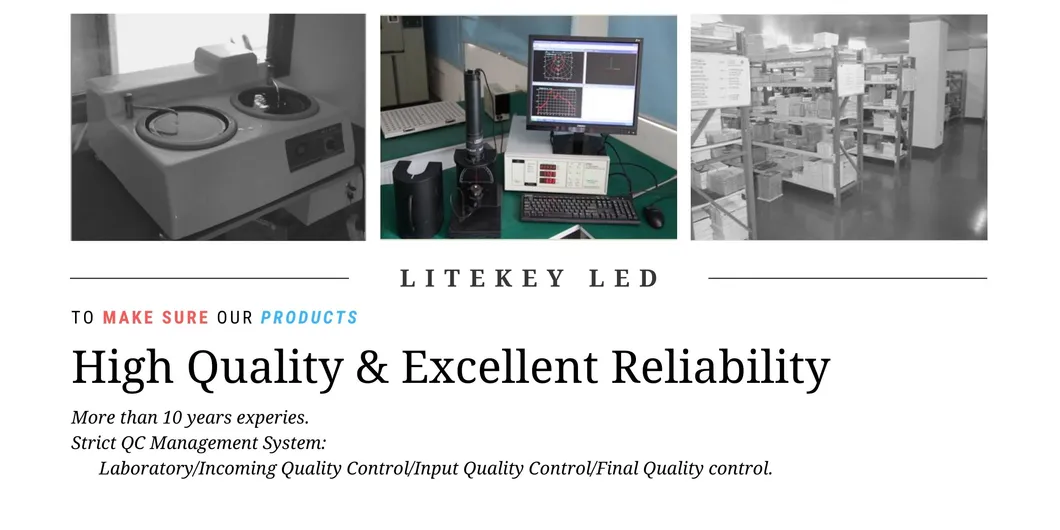

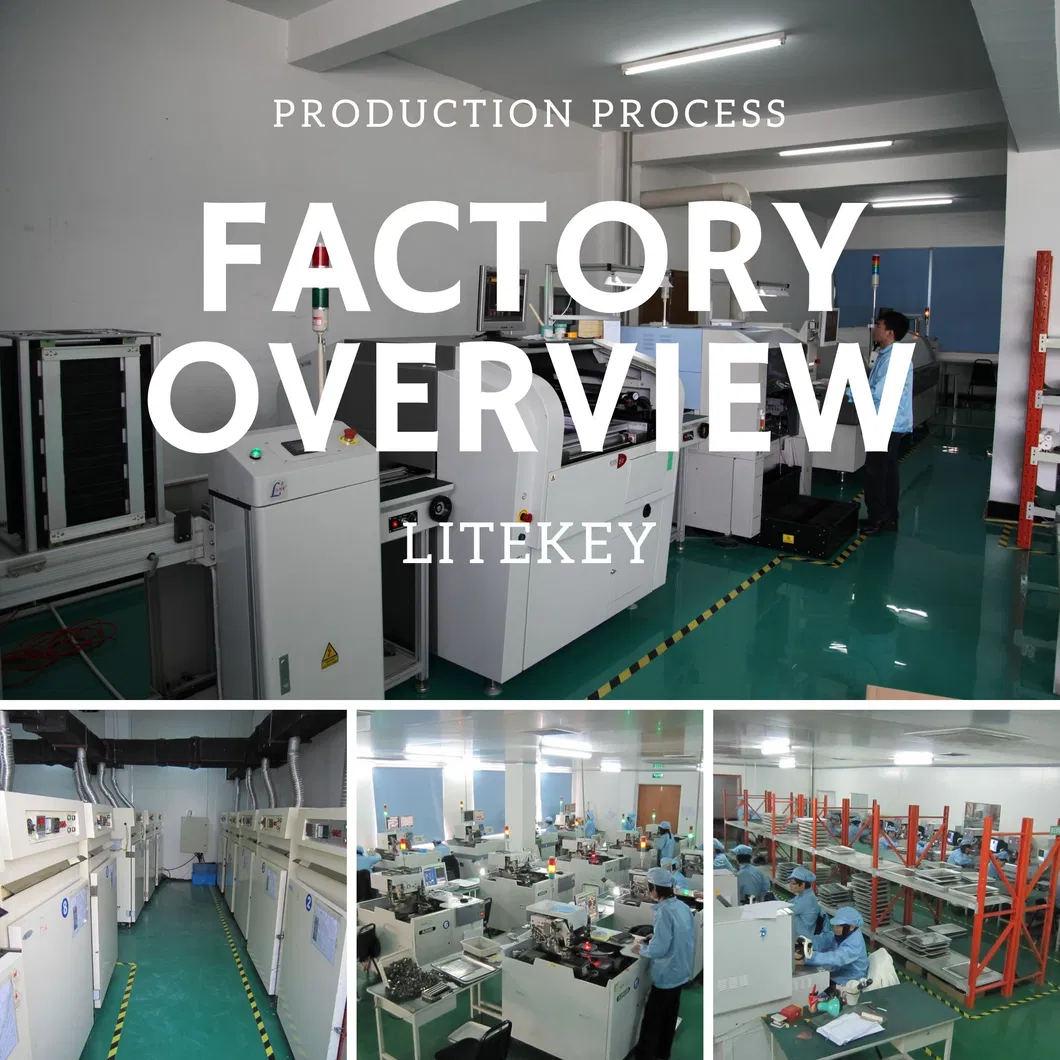

Factory Overview

Why Choose Us

Professional service: replied within 24 hours.
Various ready moldings available: no extra molding fees.
Customized product design according to your demand.
Reliable quality: 100% testing for each piece.
Experience: Over 14 years in LED component production.
Advanced Equipment: ASM automatic production machines.
Focus: Specialized in LED R&D, production, and sales.

Frequently Asked Questions

What matrix configurations do you offer?

We provide a wide range of common types including 4X4, 5X7, 5X8, 8X8, and 16X16 configurations.

Can I request custom emitting colors?

Yes, we offer various colors including Hi-red, Ultra Red, Orange, Amber, Yellow, Green, Blue, and White. Custom color requests are also welcome.

Are your products compliant with international standards?

Absolutely. Our LED dot matrix displays are fully RoHS and Reach compliant, ensuring environmental safety and quality.

What is the expected lifespan of these displays?

Our displays are designed for high durability with an estimated operational life of up to 80,000 hours.

Do you support both Common Anode and Common Cathode versions?

Yes, both CA and CC versions are available to suit your specific circuit requirements.

What are the typical dot shapes available?

We offer both round dot and square dot designs, and can customize the dot size and pitch distance as needed.
